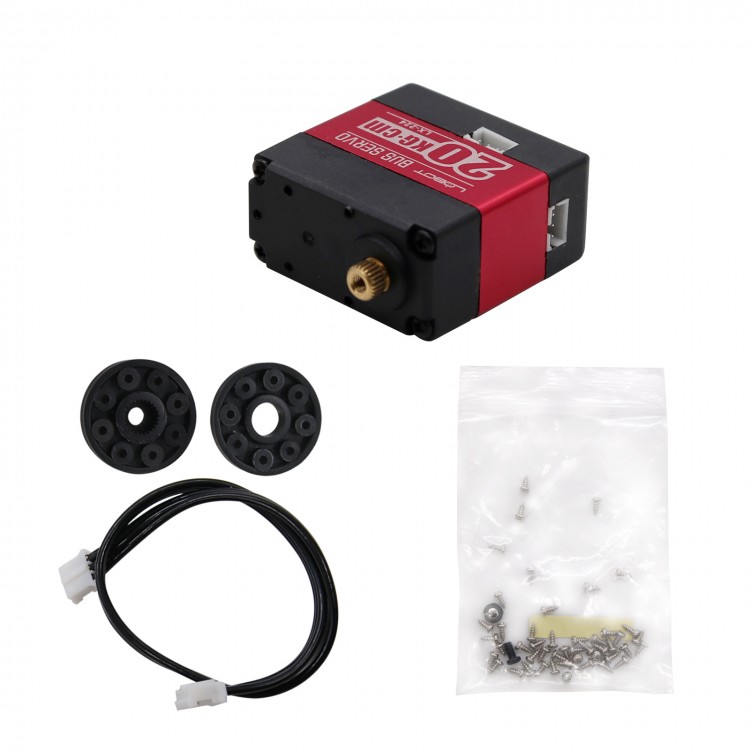

Serial Bus Servo 20kg.cm High Torque Digital Servo with Three Ports for DIY Bionic Robot LX-224
Features:
- Eye-Catching Appearance: red oxidized metal housing for excellent heat dissipation performance
- Convenient to Wire: On the top, left and right side, there are 3 ports in total for serial uses
- Highly Precise Potentiometer: Adopted imported potentiometer for angle feedback, it gives an excellent performance and prolongs the life span of servo
- Data Feedback: You can get real-time data of servo via position, temperature and voltage feedback
- Support 2 Operation Modes: rotate and position within 240° in servo mode; support 360° continuous rotation, controlling rotation direction and speed in step-down motor mode.
- Durable Metal Gear: Metal materials enhance the wear resistance and life span of the gear
- High Torque Servo: 20kg high torque serial bus servo energize your robot
- Dual-Axis Fixing: Its supporting axis and active moving axis to connect joints of you robot for stable performance
- For Multiple Brackets: Compatible with Lobot all series dual-axis servo brackets
- ID Identification, Serial Communications: The default ID of servo is 1 which is editable.
- Rich Learning Materials: We offer bus servo control program materials for 51, Arduino, STM32 SCM and Raspberry Pi. And some of them come with servo bracket pictures.
- Servo Debugging System: With this system, you can edit ID of servo, working mode, rotation speed, position deviation, over-temperature alarm, over-voltage alarm and stall alarm.
Parameters:
- Product Name: LX-224 smart serial bus servo
- Weight: 60g

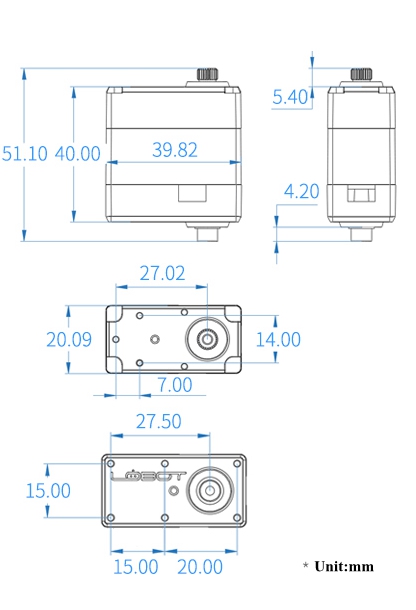

- Size: 39.82*20.09*51.1mm
- Rotating Speed: 0.12sec/60degree (6.8v)
- Servo accuracy: 0.24°
- Corner range: 0° - 240° (plus deviation +-30°, actual 300°)
- Blocking torque: 20kg.cm (6.8v)
- Servo ID: 0-253 User Settings
- Storage: Save user settings after power down
- Working voltage: 6-8.4V
- Readback function: support
- Control mode: serial command
- Communication baud rate: 115200
- Gear type: metal
- Parameter feedback: temperature, voltage, speed, position
- Suitable for all kinds of bionic robot joints
Package Included:
- 1 x Serial Bus Servo
Note: Only Serial Bus Servo included in this package.
