Serial Module Flight Transmit Module Flight Control Ground Station UAV 433/915 Arkbird

Serial Module Flight Transmit Module Flight Control Ground Station UAV 433/915 Arkbird

Features:

- OPTIONAL: 915 MHZ Module Kit, 33 MHZ Module Kit

-The latest 3DR digital design, wiring complete, plus a separate shell, more secure, beautiful, more stable data transmission.

-The 3DR Radio telemetry system is designed as an open source Xbee replacement radio set, longer range and superior performance to Xbee radios.

  It's available in 915/433Mhz (Optional); and in the following configurations: serial board (for the air)   and USB (for the ground).

-This 3D Radio Telemetry Kit is small size & light weight.

Specifications:

- 915 MHZ Module Kit (Optional)

  Transmitting power: 100mW

  Carrier frequency: 915MHz (900-925.5)

  Communication distance:

    the ground distance is 2.2km

    the air distance is 5-10km.

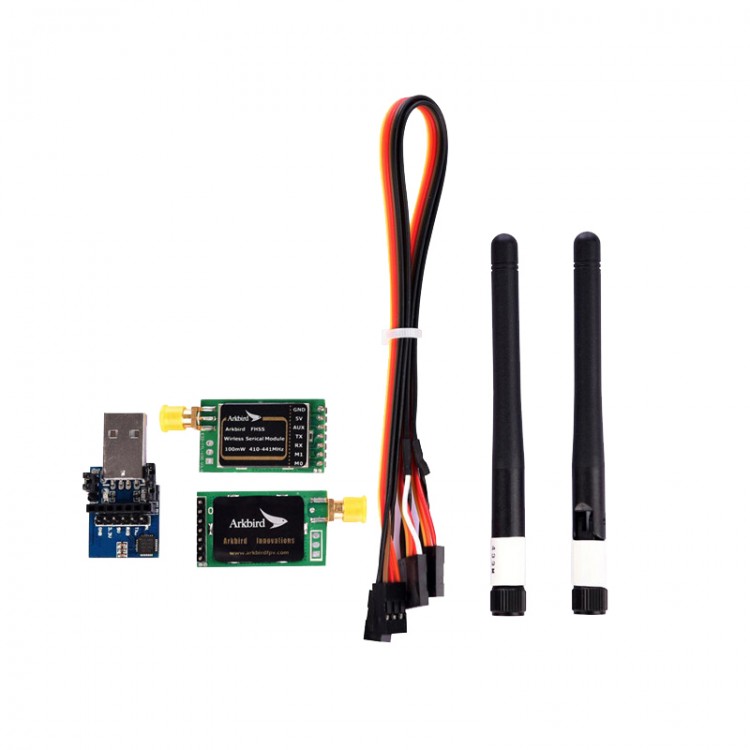

 Package Includes:

- 433 MHZ Module Kit (Optional)

  Transmitting power: 100mW

  Carrier frequency: 433 MHz (410-441)

  Communication distance:

   Ground distance is 3km

   Air distance is 5-10km.

Package Includes:

Note:

Please leave a message about the module kit type you want when placing an order, thank you.
