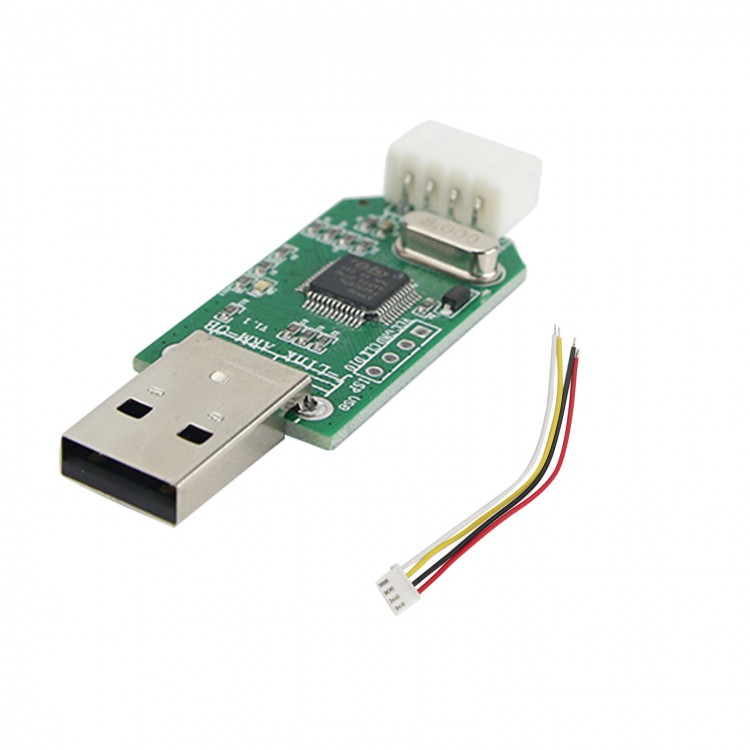

Simulator Debugger Downloader For J-Link Arm OB Programmer STM32 SWD Mode

Availability: In stock, usually dispatched in 1 business day

  • Price:$7.37
  • Price in reward points: 74 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $7.22 $7.08 $6.85 $6.56 Contact US
Quantity:

Simulator Debugger Downloader For J-Link Arm OB Programmer STM32 SWD Mode

Features:

- Support SWD mode
- Fit IDE software
- Stable performance. Perfect for STM32 simulation and downloading
- Enable reverse connection for power supply
- 2pcs tantalum capacitors with 200uf in total
- Double sides with STM process ensure stable performance
- Original brand new IC
- Standard USB port enables direction plug-in applications
- Durable, having passed the test for 3-year
- Schematic diagram provided + PCB
- Four-pin pin header with 2.54mm pitch completes the physical connection of SWD interface. It ensures reliable downloading and debugging even when your connection cable is as long as 50cm.
- Fit for most MCU with ARM as core

Simulation:

- Function: Various debugging methods such as full-speed operation, single-step debugging, and break-point debugging. You can view IO status, variable data, etc.
- Performance: USB 2.0 port for simulation debugging at a fast response speed.

Programming:
- Function: For FLASH, ROM, EEPROM, AFR and the like.
- Performance: USB 2.0 port, SWD downloading, at fast speed.

Specifications:
- Board Size: 3.5 x 2.0 cm
- Module: Simulator Downloader For JLINK ARM OB ARM/STM32 with Ultra Small SWD Interface
- USB Port: Connects to your PC
- SWD 4-Wire Debugging Interfaces: GND, SWCLK, SWDIO, and VCC (3.3V Output). Connect to your target board

Using Tips:

- It is suitable for STM32 series core boards. Match its on-board SWD debugging ports with the counterpart of our programmer. And the USB port of our debugger connects to your PC.
- At least use 3 pins, namely, SWDIO, SWCLK and GND to finish debugging, downloading and simulating. It is recommended to use SWD mode to download and simulate.

Support MCU Manufacturers:

- For ST, Freecale, Nuvoton, NXP, TI, Cypress, Atmel, Analog Devices, Fujitsu, and Toshiba.

Package Included:
- 1 x Simulator Debugger
