Skydroid T10 2.4GHz 10CH RC Receiver Transmitter RC TX RX (w/ Mini Camera) for S.BUS PPM PWM Output

Skydroid T10 2.4GHz 10CH RC Receiver Transmitter RC TX RX (w/ Mini Camera) for S.BUS PPM PWM Output

Remember to install three APP software when using:
- Device Helper: http://www.skydroid.xin/download/app/DeviceHelper.apk
- Skydroid FPV: http://www.skydroid.xin/download/app/SkydroidFpv.apk
- Skydroid Ground Station: https://www.pgyer.com/0JjN

Features:
- Dual antenna plus dual RF module with integrated control algorithms ensuring reliable communication via full angle high gain antennas. The T10 uses the latest in FHSS (Frequency Hopping Spread Spectrum) technology to achieve perfect control and operation
- Integrated with digital video transmission, farthest to 10KM
- Integrated with data transmission, farthest to 20KM
- Parameter adjustments via APP with upgraded traditional OSD to touch panel control
- Connected via Bluetooth or USB, also supports S.BUS, PPM, PWM, Serial ports and external devices, etc
- Connects the APP via Bluetooth, switching the operation model, adjusting the data of forward and reverse, rudder volume, channel binding, runaway protection value, SBUS, PPM output and digital baud rate. Providing parameter saving and loading functions
- Based on the "Tower" APP to ensure optimal compatibility with systems for Pixhawk. A large map view allows for easy waypoint selection and route planning including one key return to home. The T10 also supports for Tower, QGC, JIYI, TOPXGUN and BOYING APP
- High integrated data-link with video data transmission and telemetry all in-one unit. Ultra-small size, with folding brackets, strong and stable
- A number of optional cameras can be selected for your application, such as mini digital camera, digital camera with LED, 20 times zoom camera etc
- Specially designed for UAV, helicopter, fixed-wing drones, multi-rotor or boat operation. In video transmission (optional camera), data link and control of UAV

Specifications:
Transmitter:
- Brand: SKYDROID
- Item name: T10 Transmitter
- Number of channels: 10 channels
- Frequency: 2.400-2.483GHz
- Working voltage: 4.2V
- Working Current: 100mA
- Modulation: New FHSS
- Weight: 525g/1.2lb
- Firmware: APP online
- Dimension: 160 x 150 x 50mm/6.3 x 5.9 x 2"
- Charge Port: MICRO-USB
- Application: Helicopter, fixed-wing drone, quadcopter, car and boat

R10 Receiver:
- Model: R10
- Number of channels: 10 channels
- Working voltage: 4.5-5.5v
- Working Current: 100mA
- Dimension: 50 x 31 x 12mm/2 x 1.2 x 0.5"
- Weight: 20g/0.04lb

Mini Camera:
- Model: MINIDCAM
- Size: 30 x 29 x 26mm/1.2 x 1.1 x 1"
- Working Current: 180mA
- Weight: 15.6g/0.03lb

Package Included:
- 1 x T10 Transmitter
- 1 x R10 Receiver
- 1 x Camera

Note:
- Batteries are not included. 2pcs 18650 batteries are recommended.

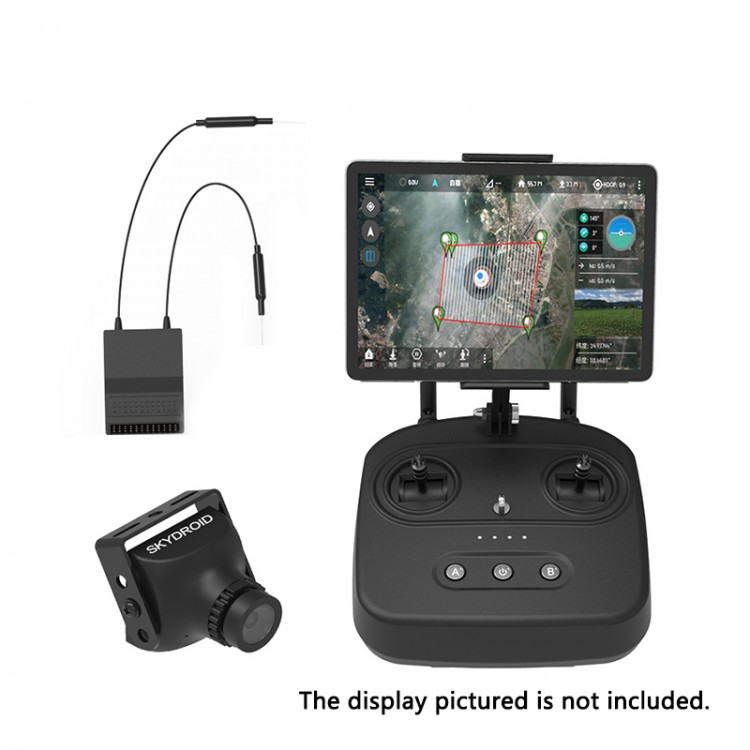

- The display pictured is not included.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
