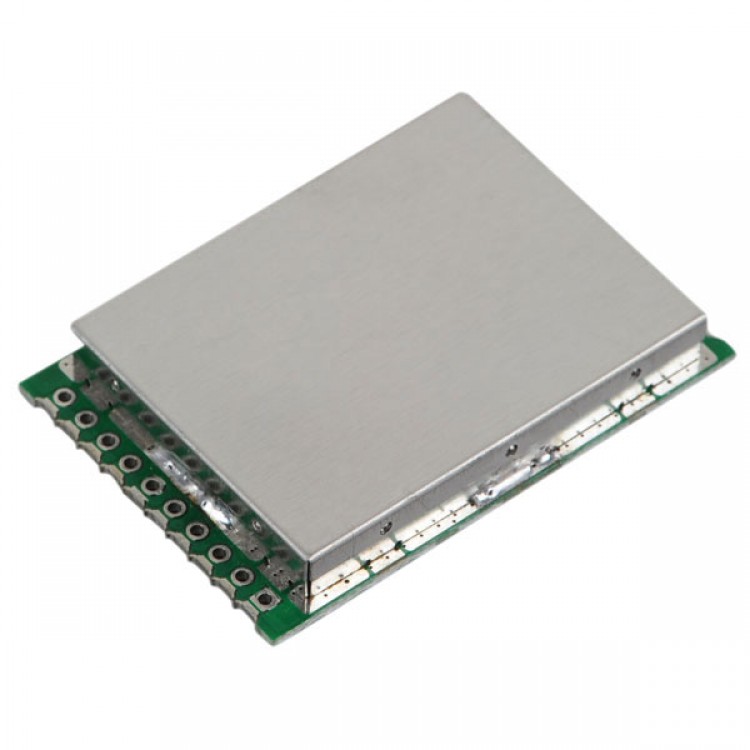

SM106R Dual Channel Audio Receiver Module

SM106R Dual Channel Audio Receiver Module
Specfication:
- (POWER SUPPLY) +3.3~5.0V
- (Current Consumption) 170mA , Max
- Environmental Specification
- Operating Temperature: -10~+55 ºC
- Storing Temperature: -30~+85 ºC
- Operating humidity:85%RH
- Receiving frequency range:2370 ~ 2510MHz*
- Voltage Standing Wave Ratio:2:1
- Demodulation system:FM/PLL
- IF 480MHz
- ANT. input impedance:50Ω, Typ.
- LO Frequency stabilization: ±100kHz
- LO Frequency Precision:±200kHz
- LO Control:PLL
- (Input LO Leak) -55dBm
- Receiving Sensitivity:-85dBm
- Input Level Range:-85 dBm ~+5 dBm
(Video Characteristics)
- Video Output impedance: 75Ω, Typ.
- Video Output Level:1Vp-p, Typ.
- Video Polarity: NEGATIVE
- Video Frequency Respone: ±5 dB, Max. 50Hz ~ 6MHz
- Differential Gain: ±5 %, Max
- Differential Phase:±5 Deg., Max
- 3Db IF WIDEBAND:' 16.5MHz
- S/N 38dB, Min
Audio
- Audio Output impedance:600Ω, Typ.
- Audio Output Level: 1±0.2Vp-p, Typ.
- Audio Output Frequency Range:100Hz ~ 20kHz
- Audio carrier: 6.0MHz(AR), 6.5MHz(AL)
- Audio carrier precision):±30kHz
- S/N(50Hz ~ 15kHz): 50dB, Min
