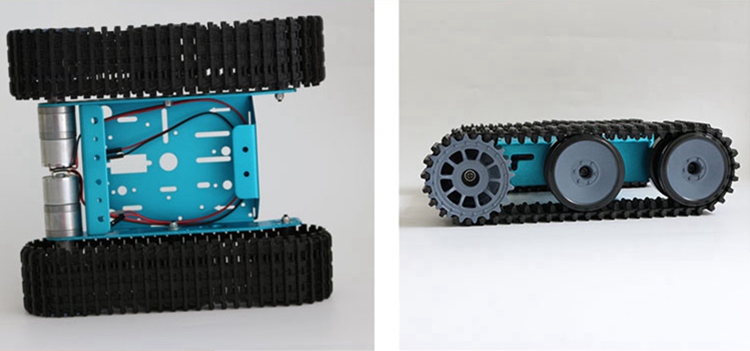

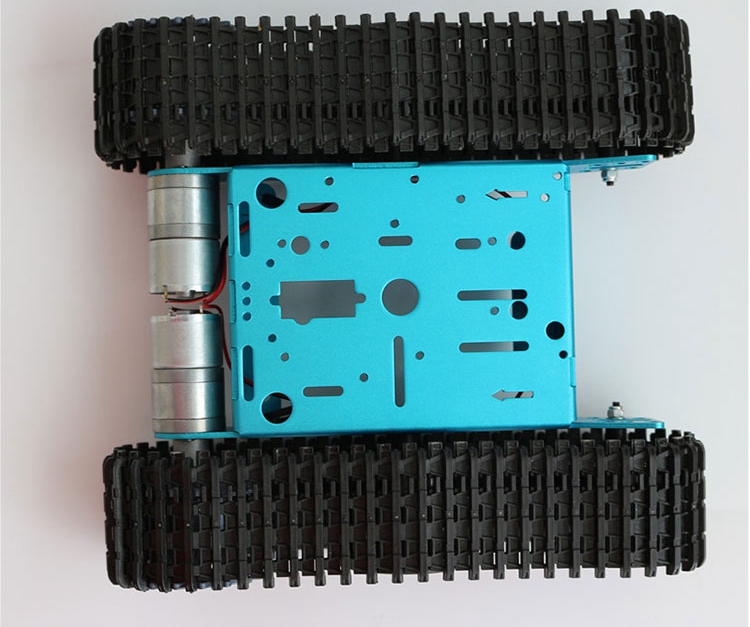

Smart Tank Robot Chassis Robot Tracked Car Platform w/ Motors For Arduino Raspberry PI DIY Robot Toy
Features:
- Material: Aluminum Alloy
- Surface Treatment: sandblasting oxidation
- Reserve Arduino UNO and Raspberry Pi mounting holes
- Reserve servos mounting hole
- Battery box with various standards can be installed
- Line-tracking sensor can be installed at the bottom of the chassis
- Metal motors for lower noise performance
- Chassis External Size: 205 x 185 x 60mm (L*W*H)
- Product Weight: 510g
- Working Voltage: 6-9V

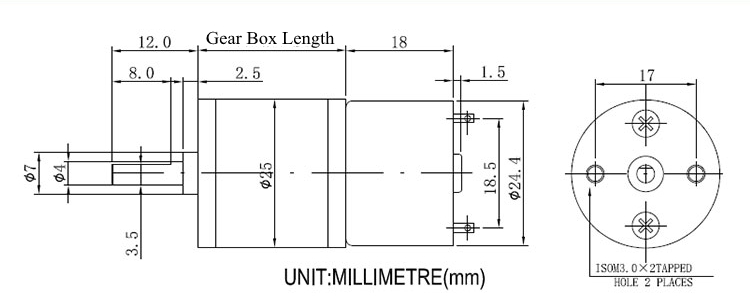

Motor Parameters:
- Model: DC Step-down Motor
- Reduction Ratio: 1:34
- No-load Current: ≤75mA
- Rated Torque: 0.3kg.cm
- Rated Speed: 85rpm
- Rated Current: ≤320mA
- Stall Torque: ≥0.75kg.cm
- Stall Current: ≤ 0.56A
- Voltage: 6-9V Recommended
Package Included (As pictures show):
- One Set of Robot Tank Chassis with Motors
