Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $35.48 | $34.75 | $33.67 | $32.22 | Contact US |

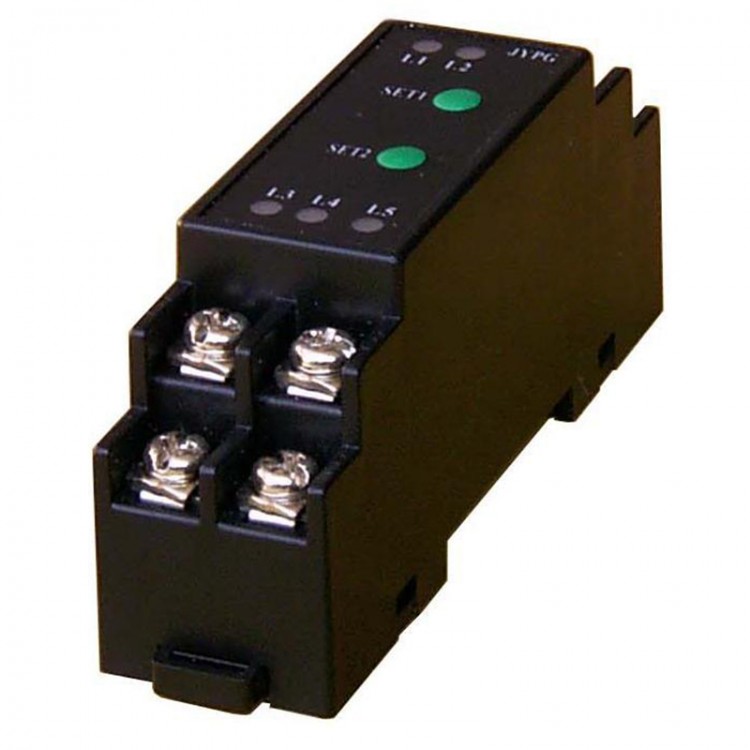

Stepper Motor Controller/ Economic Controller/ Potentiometer Speed Regulation/ JYPG
Description:
- JYPG is a economical controller, speed and direction are adjustable, convenient and easy operation, one year warranty
Working mode
- Indicator light L1 on, means working mode 1, PI1 and PI2 those two switches control CW or CCW movement, PI3 doesn't control
- Indicator light L2 on, means working mode 2, PI1 and PI2 those two switches trigger CW or CCW movement, PI3 controls movement and stop
Speed grade:
- Indicator L3 on, shows speed is at 0-25KHZ grade
- Indicator L4 on, shows speed is at 0-5KHZ grade
- Indicator L5 on, shows speed is at 0-1KHZ grade
Speed adjustment: potentiometer 10K speed adjustment
3 channel switch input:
- PI1, PI2, PI3: different function in different working mode
- PI4, potentiometer speed adjustment terminal
- 2 channel NPN open circuit output, controlling stepper motor CP and DIR
- Installation: DIN-rail mounting
- Working voltage: 5-24VDV
- Dimension: 95X25X41 MM
