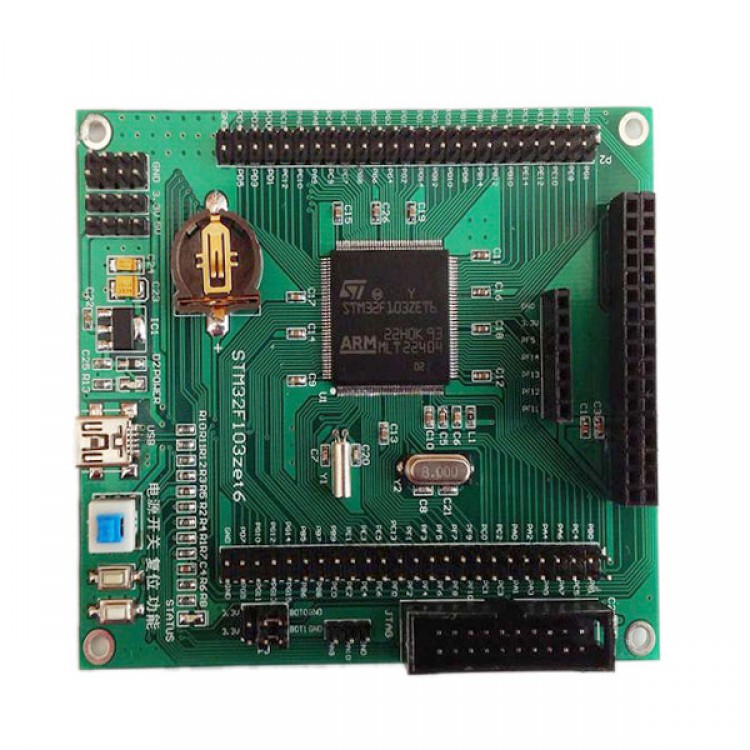

• STM32 Develop Board Core Board STM32F103ZET6 Min System Board

STM32 Develop Board Core Board STM32F103ZET6 Min System Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$11.54
  • Price in reward points: 115 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $11.31 $11.08 $10.73 $10.27 Contact US
Quantity:

STM32 Develop Board Core Board STM32F103ZET6 Min System Board

Features:

- Matching chip is STM32F103ZET6, having more resources than F3 series, all pins are lead out, and marked with terminal port for expansion
- Functions integrated onboard can be used as serial port experiments and ISP programme downloding, or having ISP program downloading through USB to TTL serial communication cable
- Onboard 1pcs mini USB interface circuit for USB communication experiment
- This board adopts crystal parameter and matching capacitor that official recommends
- BOOT start mode jumping cap switch, using ST official develop board mode
- 1PCS power supply indicator light
- 1PCS user indicating light
- Standard 20pins JTAG socket
- 8M working crystal oscillator
- 1PCS CR1220 clock battery base
- 1PCS reset press button
- 1PCS serial port external pins
- 1PCS asm1117-3.3 stabilization tube
- Can externally connect to OLED12864 display module
