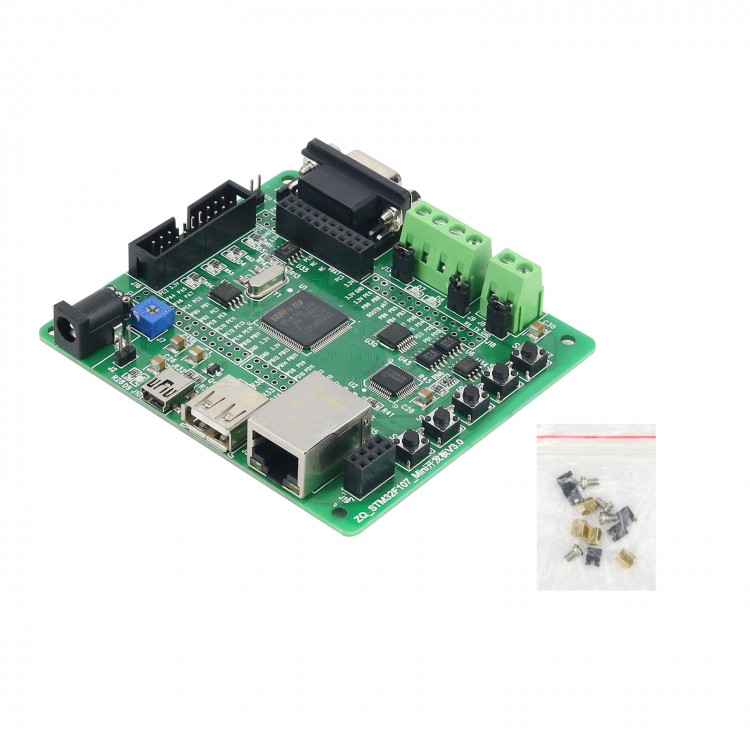

STM32F107VCT6 Development Board with RC522/2 CAN Supporting RF Module and Camera Module for IoT

STM32F107VCT6 Development Board with RC522/2 CAN Supporting RF Module and Camera Module for IoT

Hardware resources of the board:
1. Main control chip: STM32F107VCT6 (RAM: 64KB; flash memory: 256KB)
2. External expansion EEPROM: 24C02
3. External expansion FLASH: SST25F016B (16Mbits)
4. 2-way CAN (transceiver PCA82C251T)
5. 1-channel RS232
6. 1-channel RS485
7. One Ethernet port - DP83848IVV (10/100M adaptive)
8. USB OTG
9. USB main interface (easy to connect to U disk, etc.)
10. 4 LED lights and 4 user buttons
11. DS18B20 interface
12. 2.4G wireless module (NRF24L01) interface, the best transmission distance in open space is 240 meters
13. RC522/RF radio frequency card interface (can be used as various IC card readers)
14. All I/Os of STM32F107VCT6 are led out for secondary development
16. Camera OV2640 interface
17. Standard 20-pin JTAG interface

Download the Program:
1. JTAG download
2. Serial download
3. USB (DFU) download

Package Included:
- 1 x Development Board
- 1 x Bag of Accessories

Note:
- The board is not for beginners because technical support is not provided.
- It can be powered by 5V power adapter or USB cable.
