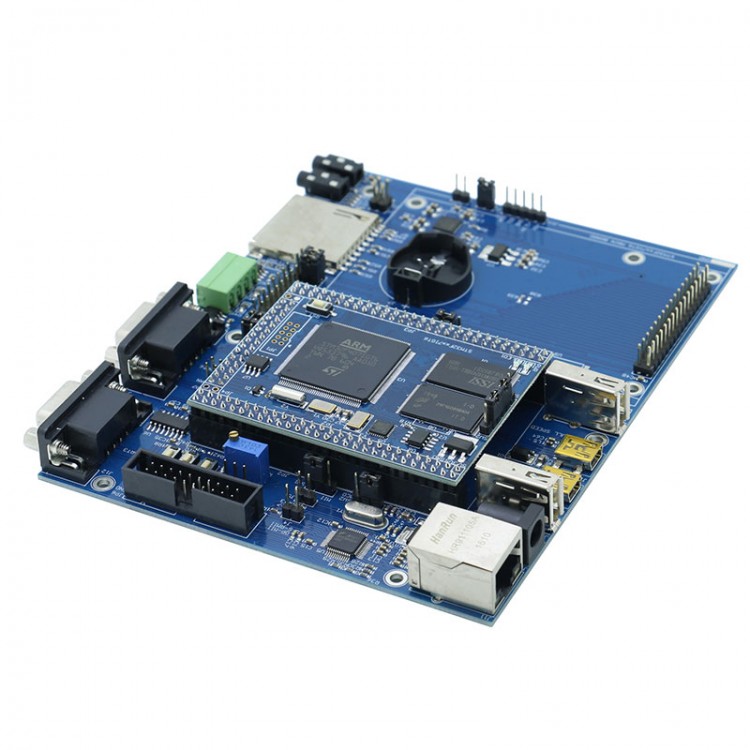

STM32F407IGT6 Development Motherboard + Core Board Audio USB Master Slave SRAM NAND

Availability: In stock, usually dispatched in 1 business day

  • Price:$119.07
  • Price in reward points: 1191 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $116.69 $114.31 $110.74 $105.97 Contact US
Quantity:

STM32F407IGT6 Development Motherboard + Core Board Audio USB Master Slave SRAM NAND

Processor specifications:

- Core: ARM 32-bit Cortex™-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 168 MHz, memory protection unit, 210 DMIPS/1.25
- DMIPS/MHz (Dhrystone 2.1), and DSP instructions
- Up to 1 Mbyte of Flash memory
- Up to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data RAM
- Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories
- LCD parallel interface, 8080/6800 modes
- Clock, reset and supply management
- 1.8 V to 3.6 V application supply and I/Os
- POR, PDR, PVD and BOR
- 4-to-26 MHz crystal oscillator
- Internal 16 MHz factory-trimmed RC (1% accuracy)
- 32 kHz oscillator for RTC with calibration
- Internal 32 kHz RC with calibration
- Sleep, Stop and Standby modes
- VBATsupply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM
- 3*12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode
- 2*12-bit D/A converters
- General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
- Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
- Debug mode
- Serial wire debug (SWD) & JTAG interfaces
- Cortex-M4 Embedded Trace Macrocell™
- Up to 140 I/O ports with interrupt capability
- Up to 136 fast I/Os up to 84 MHz
- Up to 138 5 V-tolerant I/Os
- Up to 15 communication interfaces
- Up to 3 × I2C interfaces (SMBus/PMBus)
- Up to 4 USARTs/2 UARTs (10.5 Mbit/s, ISO 7816 interface, LIN, IrDA, modem control)
- Up to 3 SPIs (37.5 Mbits/s), 2 with muxed full-duplex I2S to achieve audio class accuracy via internal audio PLL or external clock
- 2* CAN interfaces (2.0B Active)
- SDIO interface
- Advanced connectivity
- USB 2.0 full-speed device/host/OTG controller with on-chip PHY
- USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
- 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
- 8- to 14-bit parallel camera interface up to 54 Mbytes/s
- True random number generator
- CRC calculation unit
- 96-bit unique ID
- RTC: subsecond accuracy, hardware calendar

Development board hardware configuration:
- 16M Bit high speed asynchronous CMOS static RAM
- 4G Bit NAND Flash
- IIC EEPROM
- 20 pin 2.54 pitch JTAG interface
- 10/100M Ethernet interface (MII, RMII two configuration mode)
- USB2.0 high speed master slave device interface (mini)
- USB2.0 high speed master device interface
- USB2.0 full speed master slave device interface (mini)
- USB2.0 full speed master interface
- Two channel RS232 interface
- Two channel CAN2.0 interface
- SD memory card interface (4-bit)
- Audio output and microphone input interface
- 16 bit bus mode LCD interface
- 1* controllable LED
- Three keys with a wake up function
- An adjustable resistor
- Large button battery seat
- The core board 2.54mm spacing of the I/O exit, can be installed on the board

NOTE:STM32F407IG processor is without LCD controller, only controls LCD with CPU interface.

Package Contents:
- 1 x STM32F407IGT6 base board
- 1 x STM32F407IGT6 core board
- 1 x Mini USB cable
- 1 x 5V power supply
- Cables
