Product details
Reviews (0)

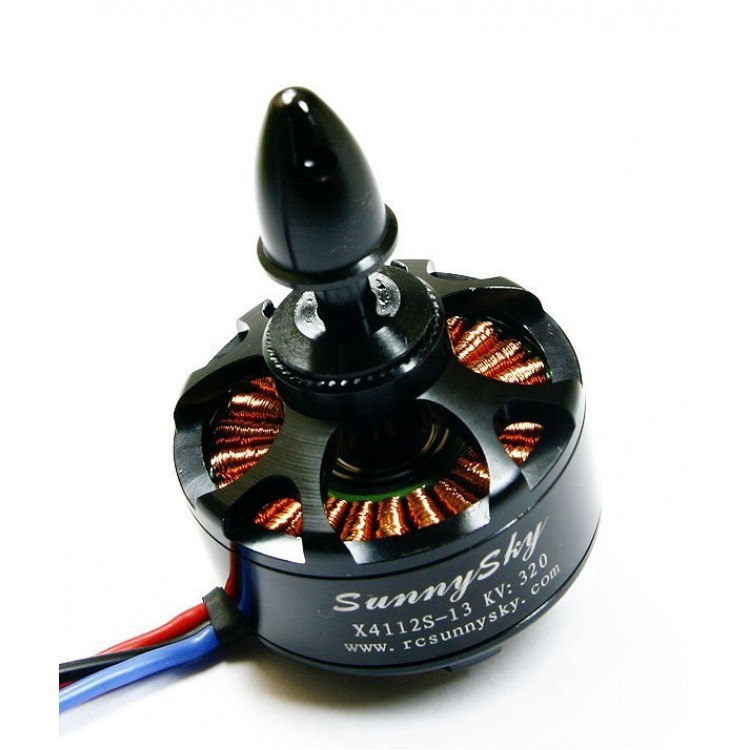

SUNNYSKY X4112S 485KV Disk Type Brushless Motor 1555 15x4 1550 Prop Multi-rotor Aircraft Hexacopter

SUNNYSKY X4112S 400KV Brushless Motor for 15x5 1540 Prop Multi-rotor Aircraft 310w
Specification:
- Model: X4112S 485KV
- KV (rpm): 485
- Weight: 153g
- Diameter: 46.4mm
- Length: 32.5mm (excluding motor shaft)
- Wire length: 60cm
- Prop adaptor output shaft diameter: 6mm
- Application: specially designed for quadcopter and multi-rotor aircrafts.

Type	Prop size (inch)	Voltage(V)	Throttle	Current (A)	Pull(g)	RPM (RPM/Min)	Power(W)	g/w ratio	Temperature under 100% throttle for 10 minutes（℃）
X4112S kv485	APC14*4.7	14.8	50%	3.2	560	3180	47.36	11.82432	52
			65%	6.1	880	3878	90.28	9.747452
			75%	10.8	1260	4592	159.84	7.882883
			85%	13.4	1460	4880	198.32	7.361839
			100%	16.8	1650	5225	248.64	6.6361
	APC15*4		50%	2.2	460	3425	32.56	14.12776	43
			65%	3.9	670	4156	57.72	11.60776
			75%	6.6	950	4970	97.68	9.725635
			85%	8.6	1160	5400	127.28	9.113765
			100%	11.2	1450	5960	165.76	8.747587
	DJI15x5		50%	2.8	580	3185	41.44	13.99614	47
			65%	5.7	900	4050	84.36	10.66856
			75%	9.3	1240	4783	137.64	9.009009
			85%	11.6	1410	5127	171.68	8.212954
			100%	14.5	1630	5498	214.6	7.595527
	APC13*4	18.5	50%	2.4	500	2995	44.4	11.26126	43
			65%	4.2	740	5427	77.7	9.52381
			75%	7.2	1140	6627	133.2	8.558559
			85%	9.5	1390	7265	175.75	7.908962
			100%	11.3	1550	7685	209.05	7.414494
	APC14*4.7		50%	4.8	850	3810	88.8	9.572072	73
			65%	8.6	1250	4570	159.1	7.856694
			75%	14.2	1700	5260	262.7	6.47126
			85%	18.2	1920	5600	336.7	5.702406
			100%	22.4	2200	6000	414.4	5.30888
	APC15*4		50%	3.1	670	4107	57.35	11.68265	50
			65%	5.9	1040	5105	109.15	9.528172
			75%	9.9	1530	6087	183.15	8.353808
			85%	13.3	1850	6675	246.05	7.518797
			100%	15.9	2070	7045	294.15	7.037226
	DJI15x5		50%	4	800	3850	74	10.81081	66
			65%	7.5	1230	4765	138.75	8.864865
			75%	12.6	1710	5630	233.1	7.335907
			85%	16.3	1960	6090	301.55	6.499751
			100%	19.3	2210	6390	357.05	6.189609
	APC13*4	22.2	50%	3.1	680	5149	57.35	11.85702	47
			65%	5.5	1050	6335	101.75	10.31941
			75%	9.2	1510	7570	170.2	8.871915
			85%	12.2	1800	8275	225.7	7.975188
			100%	14.6	2050	8765	270.1	7.589782

Package Includes:
- 1 x motor
- 1 x prop adaptor
- 6 x screws
