Super_S BS06D Guide 4 In 1 6A Blheli_s ESC Support DSHOT 2S Power Supply

Super_S BS06D Guide 4 In 1 6A Blheli_s ESC Support DSHOT 2S Power Supply

Product Description:Small BLHELI_S 2S 4 in 1 brushless ESC,EFM8BB21F16G default DSHOT Continually output 6A current,16mm*16mm intall hole spacing suitable for Racewhoop,Super_S F3, Super_S F4 flight control set up miniature fortigate.

BLHELISUITE Debugging Software Download:Click here

Details:
- Item name: Super_s BS06D 4 In 1 6A BLHeli_S ESC

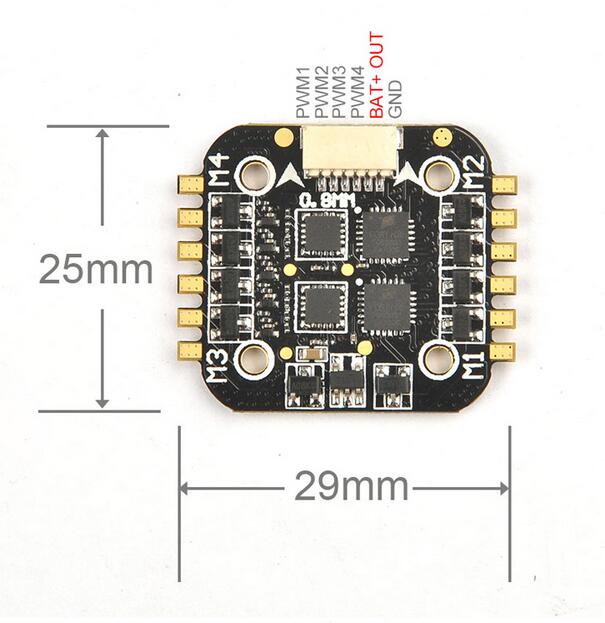

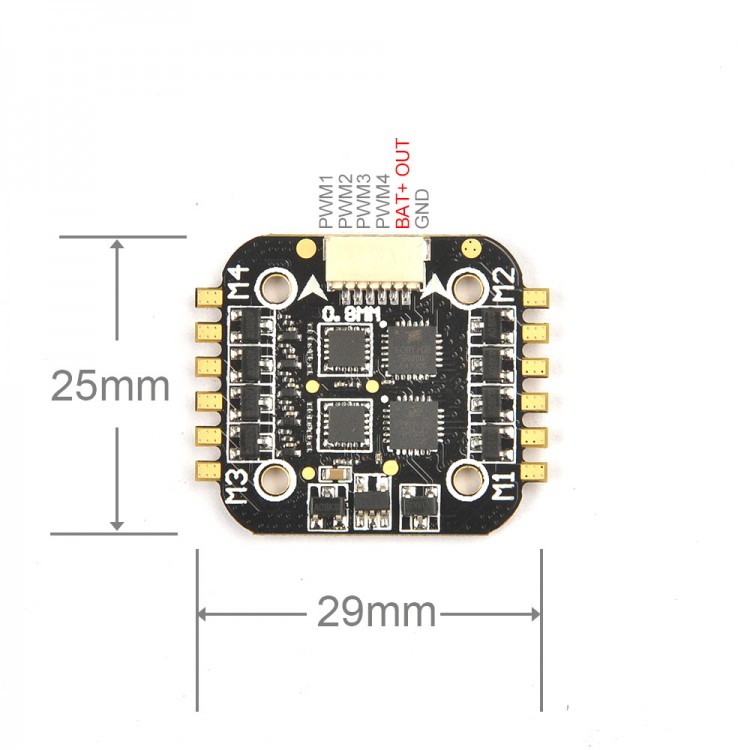

- Size: 25x29mm (includes solder pad)
- Processor:SILABS  EFM8BB21F16G
- Suitable for Racewhoop, Super_S F3, Super_S F4 flight control set up miniature fortigate
- Input voltage:2S LiPo
- Four in one ECS weight:2.7g
- Mounting holes: 16x16mm, φ2mm  Screw hole dimenion:2mm
- Support DSHOT150/300/600,Oneshot,multishot
- A single tune with continuous operating current: 6A
- Peak Current: 10A (5 seconds)
- Firmware: BLHELI_S
- BEC output: NO
- Driver: 3 in 1 MOS
- Input voltage: 2S lipo

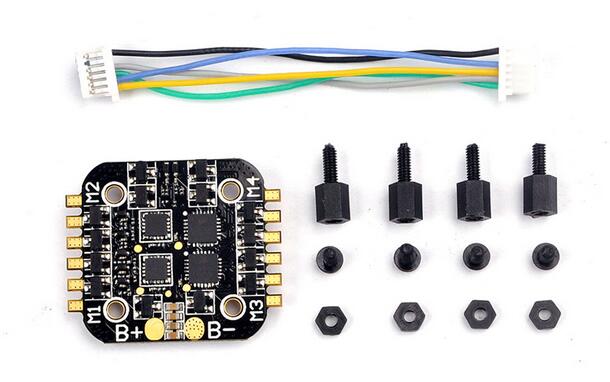

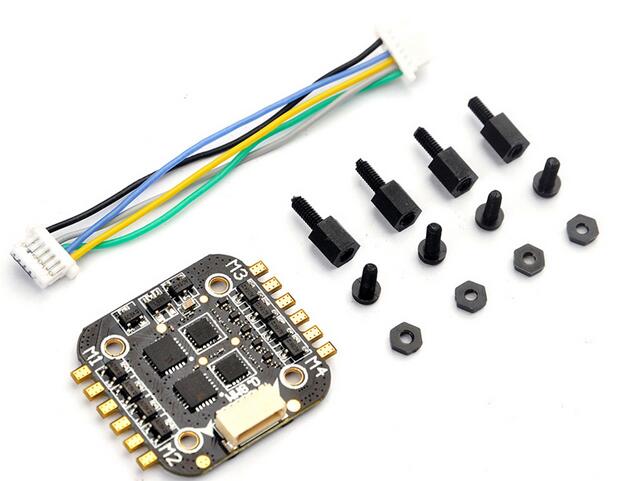

Package include:
- 1 x Guide 4 In 1 6A BLHeli_S ESC
- 1 x Cable
- 4 x M2*5+5 nylon column
- 4 x M2 Screw
- 4 x M2 Nut
