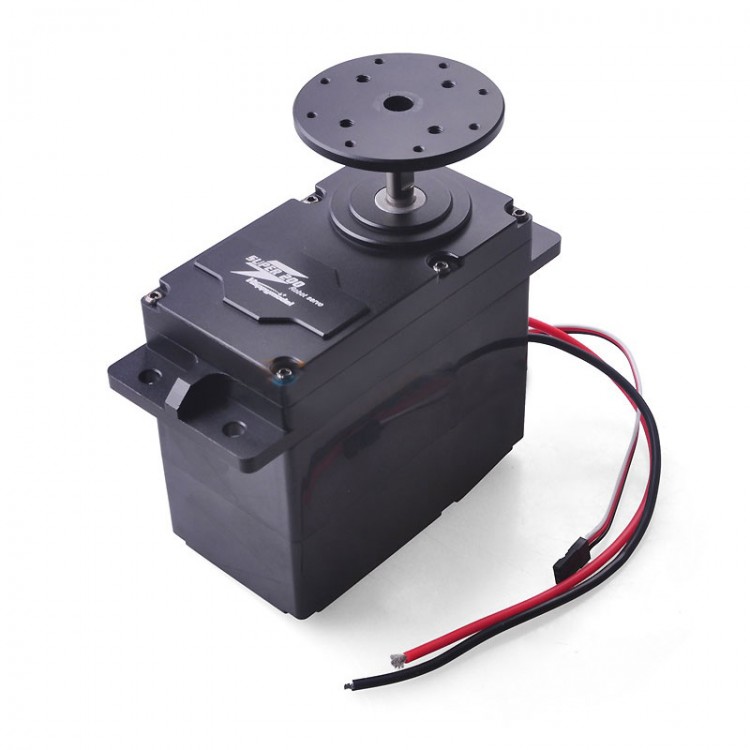

SUPER200 High Torque Metal Servo 12V 24V 200kg.cm 0.5S/60° BEC 5V for DIY Large Robot Arm

Availability: Out Of Stock

  • Price:$74.13
  • Price in reward points: 741 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $72.65 $71.16 $68.94 $65.98 Contact US
Quantity:

SUPER200 High Torque Metal Servo 12V 24V 200kg.cm 0.5S/60° BEC 5V for DIY Large Robot Arm

Description:

- Namely 1cm long lever can lift 200kg weight! Real high torque servo!! High torque servos actually have a wide range of applications, different kinds of manipulators, gimbals, drones, AI equipment, industrial control etc.

- This high torque servo is structurally designed with steel gear, 540 motor, CNC aluminum alloy shell with anti-flaming ABS shell, and some extent waterproof. The servo is equipped with servo plate.

- The servo adopts digital circuit, so it responds fast, stroke (travel) is long, and compatible perfectly with many remote controlling systems in market.

- Support PWM pulse 1-2MS signal control that is standard servo control signal, Analog voltage signal control 0-5V, with normal servo function, and with 360 degree operating modes selectable, you can control the speed of servo. The servo build in BEC 5V output, you can direct power to the receiver.

Specifications:

- Power input: 12V-24V DC (V-connected to the cathode, V + connected to the anode)
- No load current: <500MA
- Maximum torque: 200KG.CM (24V) (measured, non-theoretical)
- Angular velocity: 0.5S / 60 ° (60 degrees 0.5S), 24V
- Rotation angle: 300 ° MAX, meaning the maximum stroke of 300 degrees (0 to 300 ° adjustable electronic limit)
- Input mode: pulse signal (remote control, multi-way servo controller, microcontroller) or analog voltage signal (potentiometer)
- Pulse signal input range: 1.0ms-2.0ms
- Analog voltage signal input range: 0 to 5V

Control & Interface Description:
- Motor output (M +, M -): M - connected to the motor negative, M + connected to the motor positive
- Motor speed adjustment input (LD): used to control the steering angle of the Servo.
- Corner Adjustment Input (XC): Used to control the angular range of the Servo.
- Mode selection (VR): not short for the pulse signal PWM 1-2MS input, short for the analog voltage signal input 0-5V; default PWM input
- Servo mode (360): Not short Connect for the normally Servo, short for 360-degree Servo; default Normal Servo
- Analog control mode (5V-VR-GND): The angle input signal is analog; you can use the potentiometer to control the motor shaft angle position.
- Digital control mode (PW-5V-GND): The input signal is a digital square wave signal with a pulse width of 1ms-2ms.

Mode Selection:
- Short circuit is analog voltage signal 0-5V input, if not short circuit, is pulse signal PWM 1-2ms input; the default input is PWM input.

Servo Mode:

- If short circuit, is 360degree servo; if not short-circuit, is normal servo; the default mode is normal servo.
- Analog control mode (5V-VR-GND):
- Angle input signal is analog, motor output shaft angle can be controlled with potentiometer.
- Digital control mode (PW-5V-GND):
- Input signal is square wave signal with pulse width 1ms-2ms.

Package Included:

- 1 x Super 200 Servo
- 1 x Metal Servo Plate
