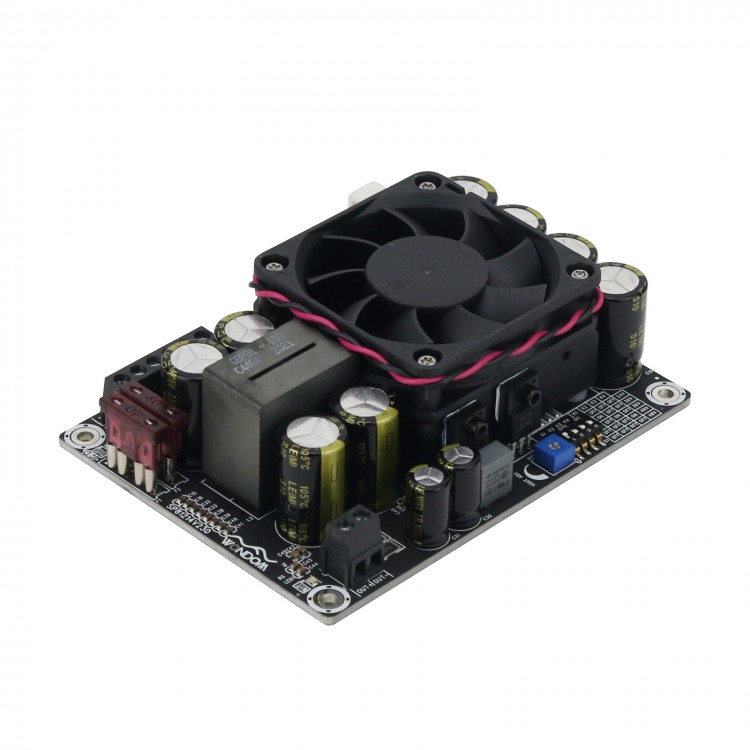

SURE PS-SP12148 500W Boost Module DC To DC Step Up Converter 12V To 24V 48V DC Power Supply For Cars
Description:
This product is designed for car audio. It can be used in electronic amplifiers. DC12V input, you can adjust the voltage output DC24V, DC30V, DC36V, DC40V, DC48 as needed, and the power output power is up to 500W. Full power output, never falsely marked, you can set the DIP dial to adjust the voltage.
Single DC 12V power supply, VIN is connected to power supply +, GND is connected to power supply -, and the output is connected to your power amplifier.
Attention:
Please adjust the voltage after the power supply is turned off!
More Details:
- PCB board thickness 2mm
- Our products can output enough power
- All products have passed full power copy machine
- All products have CE and FCC certificates
- All products can provide industrial products
- All products are produced under ISO9001 quality control

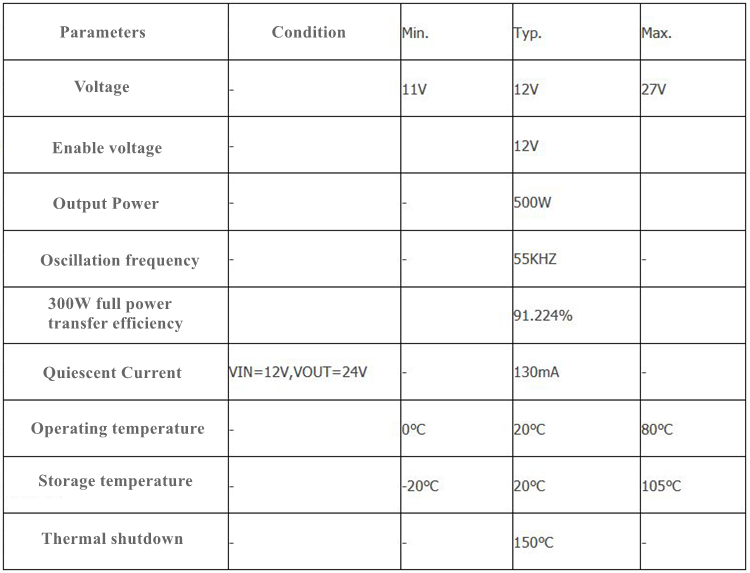

Specifications:
- Weight: 340g
- Model: PS-SP12148

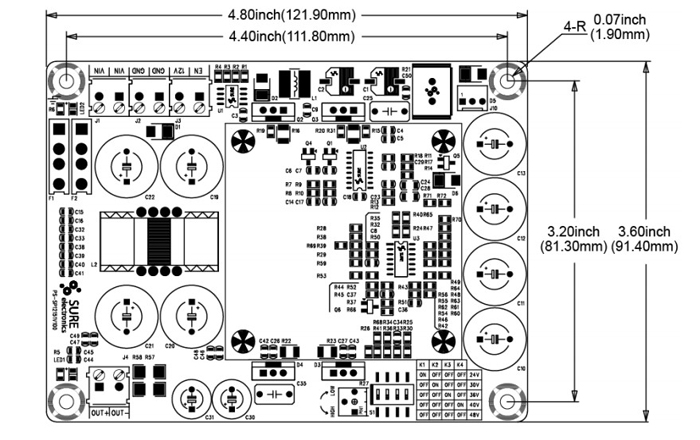

- Product size: 121.9mm x 91.4mm*36.5mm±2mm
- Power supply voltage: 12V
- DC / DC boost converter
- LED status indicator light

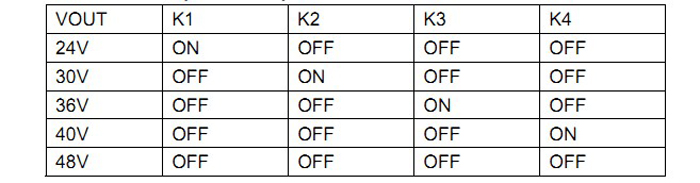

- Voltage is regulated by DIP switch
- Independent heat sink
- High quality 12V fan cooling
- Universal voltage input
- Fused protection input line
Package Included:
- 1 x Boost Converter
