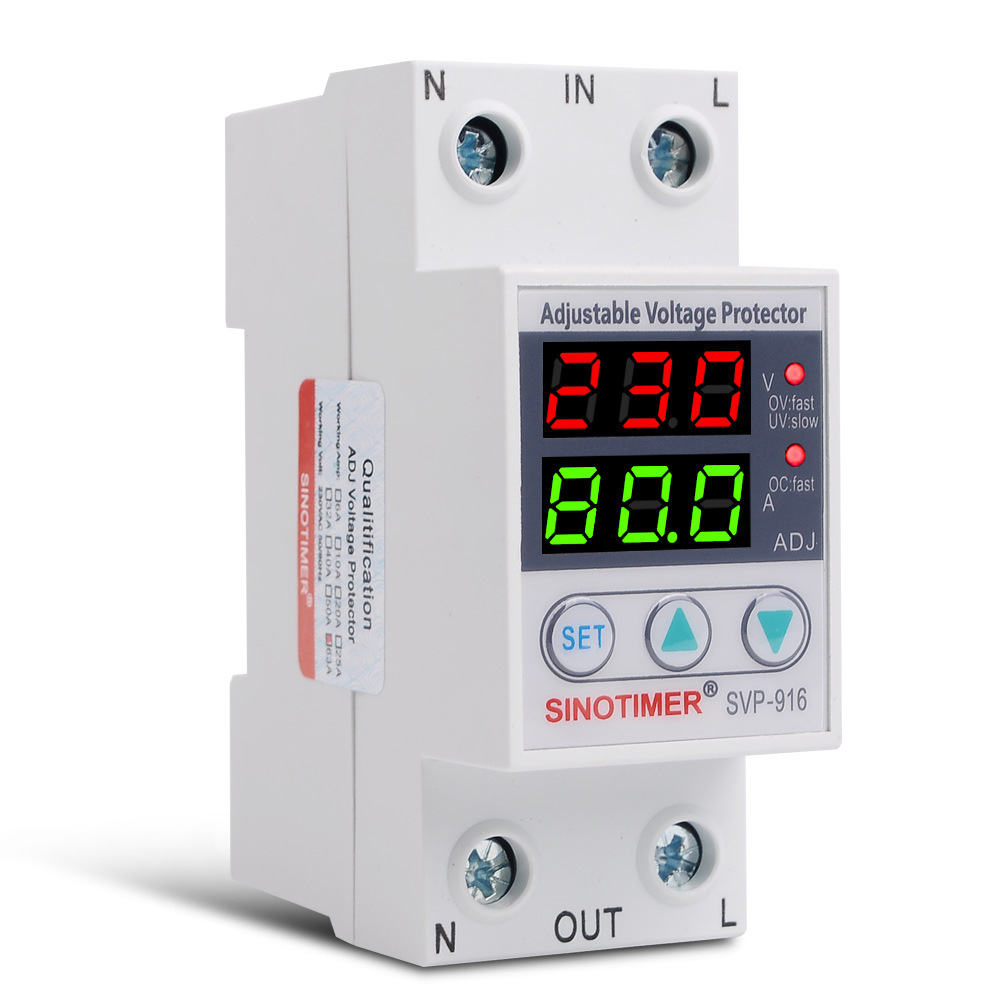

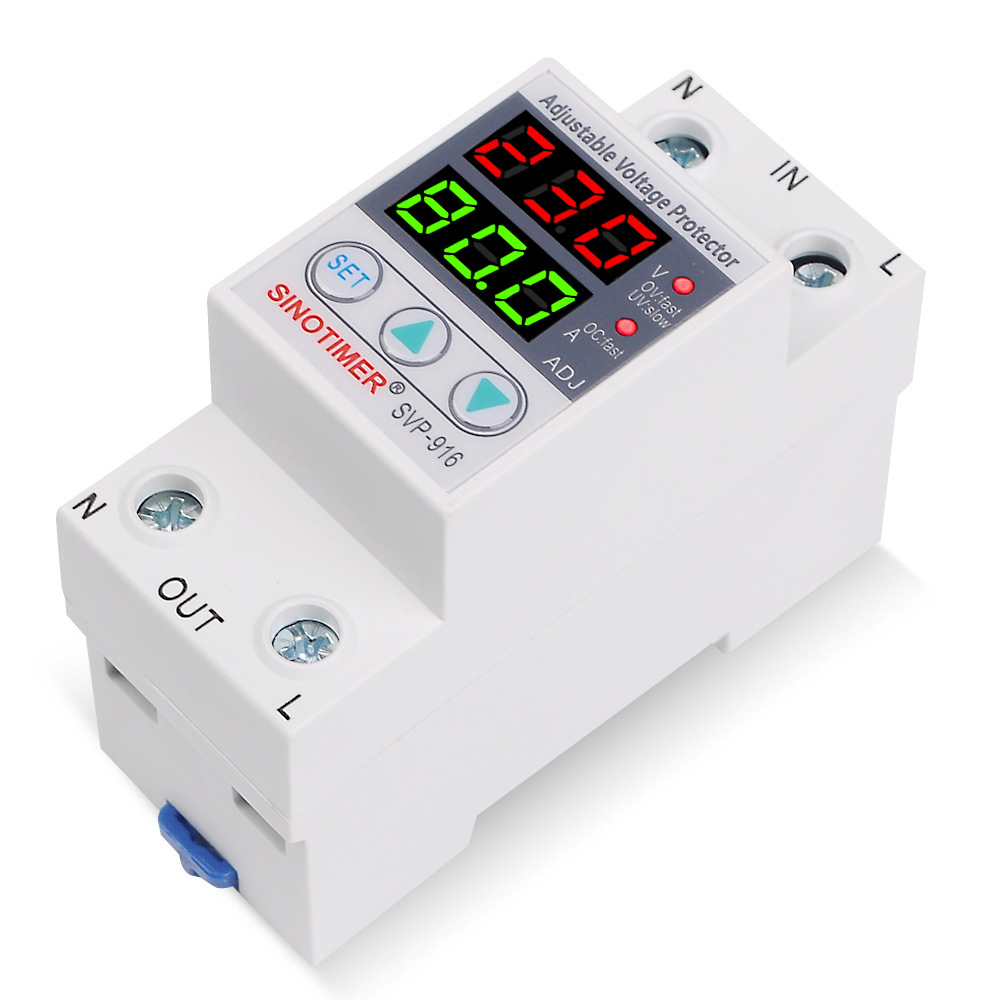

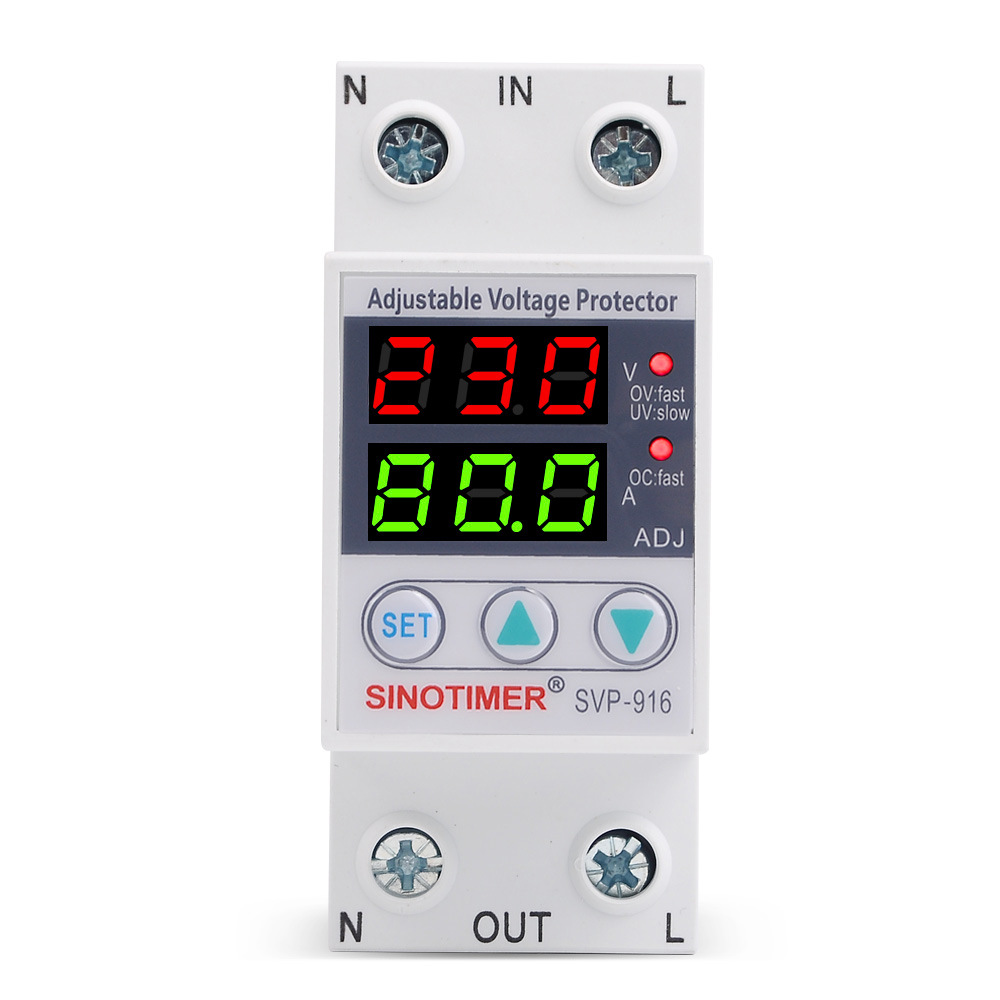

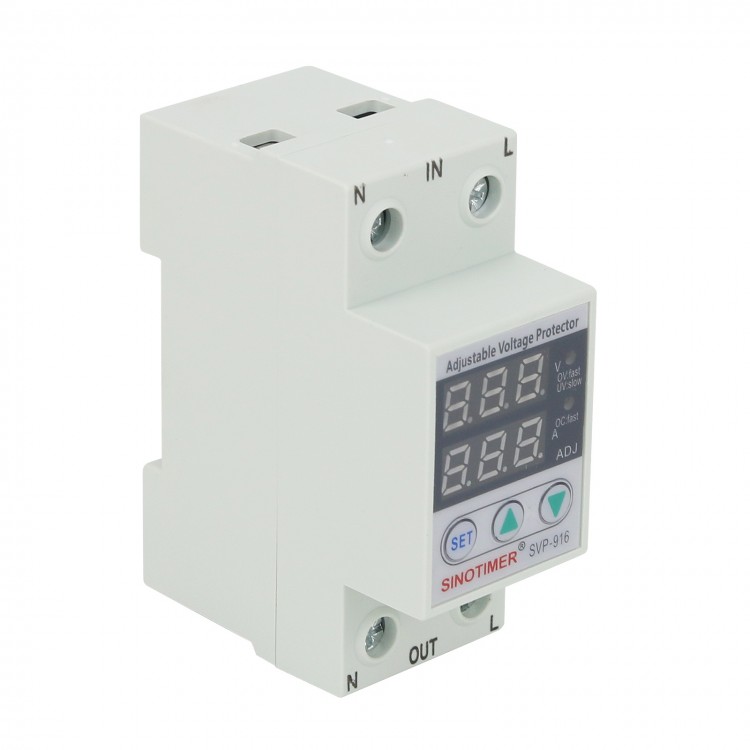

SVP-916 80A Over Voltage Protection Limit Current Dual Display Adjustable Voltage Monitoring Device Protector Relay 220V
Description:
- Over-voltage protection
- Under-voltage protection
- Over-current protection
- Automatic recovery
- Voltage display (voltage measurement)
- Current display (current measurement)
Parameters:
- Model number: SVP916-80A
- Power supply:230VAC 50/60Hz
- Max. Loading power:1~80A Adjustable (default: 80A)
- Over-voltage protection value range: 221V~300~OFF (default: 280V)
- Over-voltage recovery voltage range: 220V~299V
- Over-voltage protection action time: 0.1s~10s (default value: 0.1s)
- Under-voltage protection value range: 219~150V~ OFF (default: 160V)
- Under-voltage recovery voltage range: 151V~220V (default: 180V)
- Under-voltage protection action time: 0.1s~10s (default: 0.1s)
- Over-current adjustment range: 1-80A (default: 80A)
- Over-current action range: 0.1~512 second (default: 5.0s)
- Recovery delay time: 2s~120s (default: 60s)
- Power-on delay time: 2s~10s (default: 2s)
- Power consumption: <2W
- Electric machinery life: 100,000times
- Installation: 35mm DIN rail
Package Included:
- 1 x 80A Voltage Protector
Note:
- When you first connect the product, you have to wait several seconds, after the red light turn off, then the product will work.
