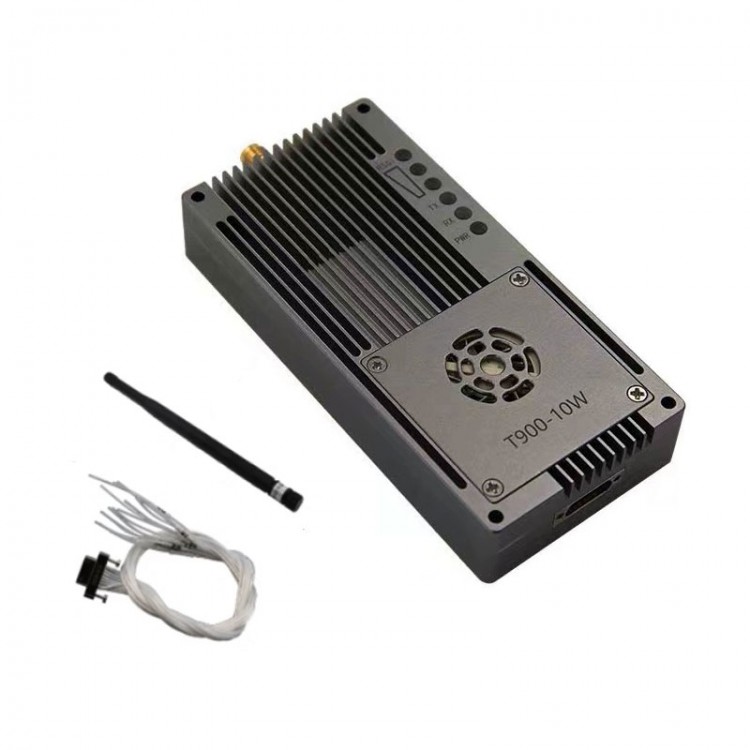

T900-40A-SMA T900-10W 100KM Drone Telemetry Radio Module Long Range Communication for UAV Drones

T900-40A-SMA T900-10W 100KM Drone Telemetry Radio Module Long Range Communication for UAV Drones

Description:
T900-40-SMA (10W) is one of the digital radios in the T900 series. It is mainly used for transmission of high-power long-distance industrial data. It has the advantages of small volume, high integration and high sensitivity. The T900-40-SMA works in the 902~928MHz band. It has two models: the T900-40A-SMA and the T900-40B-SMA. The only difference between them is the transmission distance. In good environment, the maximum transmission distance of the T900-40A-SMA is 100km, and that of the T900-40B-SMA is 200km.This product is suitable for UAV, inspection, monitoring, etc.

Features:
- High sensitivity, automatic frequency hopping
- Easy installation and configuration
- Small volume, good integration and high sensitivity
- Working frequency band is 902~928MHz
- FHSS spread spectrum and frequency hopping are adopted. It can replace foreign 900M industrial radio modules. The AT software protocol is fully consistent
- Data encryption: Supports 256-bit physical layer encryption
- The output power is 10W
- The transmission distance is 100KM (T900-40A-SMA)
- High stability: In the case of uninterrupted power, the module can work stably for dozens of days
- Automatic relay: The data transmission module can perform multi-trunk automatic join function without manually configuring internal parameters. When the trunk exits, the master and slave devices will automatically restore the link and resume normal communication
- Networking: The module can adopt the centered networking mode MESH-TDMA, which can realize two-way data interaction between each slave device and the central point, and also support data interaction between each slave device
- Application scenarios: point to point, point to multi-point, and central MESH application scenarios

Specifications:
- Model number: T900-40A-SMA
- TX power: 10W/40dBm
- Transmission distance: up to 100KM (T900-40A-SMA)
- Working voltage: DC15~26V
- Overall power: ≤48W
- Serial port level: RS232/TTL level (optional)
- Antenna interface: SMA female
- Product size: 111mm*49mm*18.5mm (SMA included)
- Product weight: Approx. 137g
- Operating temperature: -40°C to +85°C

Package Included:
- 1 x 10W module
- 1 x 2.5dBi rubber antenna
- 1 x J30J-15pin cable
