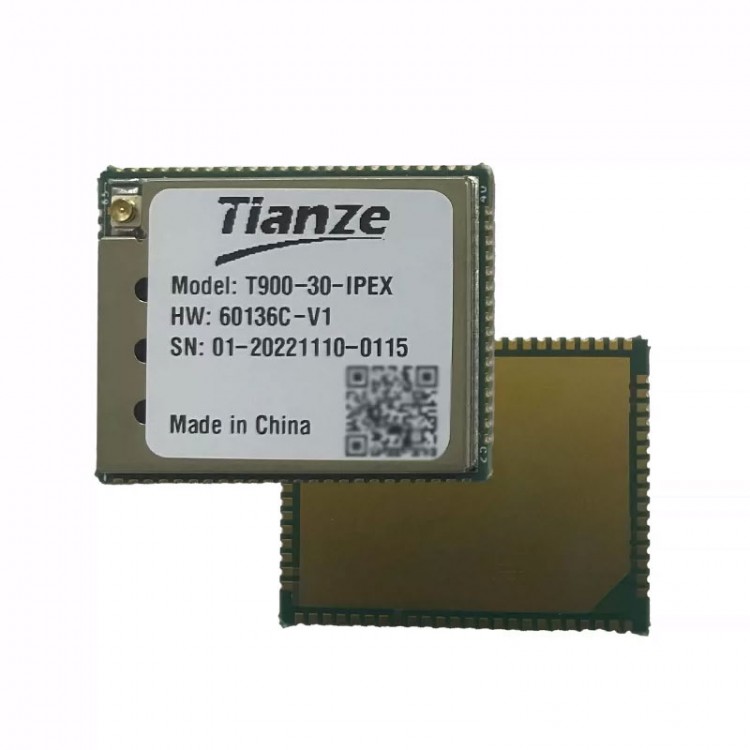

Tianze T900-30-IPEX 1W 60KM Drone Telemetry Radio Module Compatible with P900 for UAV Drones

Tianze T900-30-IPEX 1W 60KM Drone Telemetry Radio Module Compatible with P900 for UAV Drones

Description:
T900-30-IPEX is an ad hoc network chip module. It has high sensitivity and supports automatic frequency hopping. It can be used in low-cost OEM integrated circuits.

Features:
- High sensitivity, automatic frequency hopping
- Easy installation and configuration
- Working frequency band is 902-928MHz
- FHSS spread spectrum and frequency hopping are adopted. It can replace foreign 900M industrial radio modules. The AT software protocol is fully consistent
- Data encryption: Supports 256-bit physical layer encryption
- The output power is 1W
- The transmission distance is up to 60KM
- High stability: In the case of uninterrupted power, the module can work stably for dozens of days
- Automatic relay: The data transmission module can perform multi-trunk automatic join function without manually configuring internal parameters. When the trunk exits, the master and slave devices will automatically restore the link and resume normal communication
- Networking: The module can adopt the centered networking mode MESH-TDMA, which can realize two-way data interaction between each slave device and the central point, and also support data interaction between each slave device
- Application scenarios: point to point, point to multi-point and central MESH application scenarios

Specifications:
- Product name: T900-30-IPEX (T900 chip)
- Working frequency: 902-928MHz
- Transmit power: 1W/30dBm
- Transmission distance: up to 60KM
- Transmission delay: 20ms in one direction
- Operating voltage: 3.3V at 2A
- Serial port level: TTL level
- Antenna interface: IPEX
- Product size: 26.5mm*33mm*3.5mm
- Product weight: Approximately 5.2g
- Working mode: point-to-point, relay, point-to-multipoint, with central MESH

Package Included:
- 1 x Module
