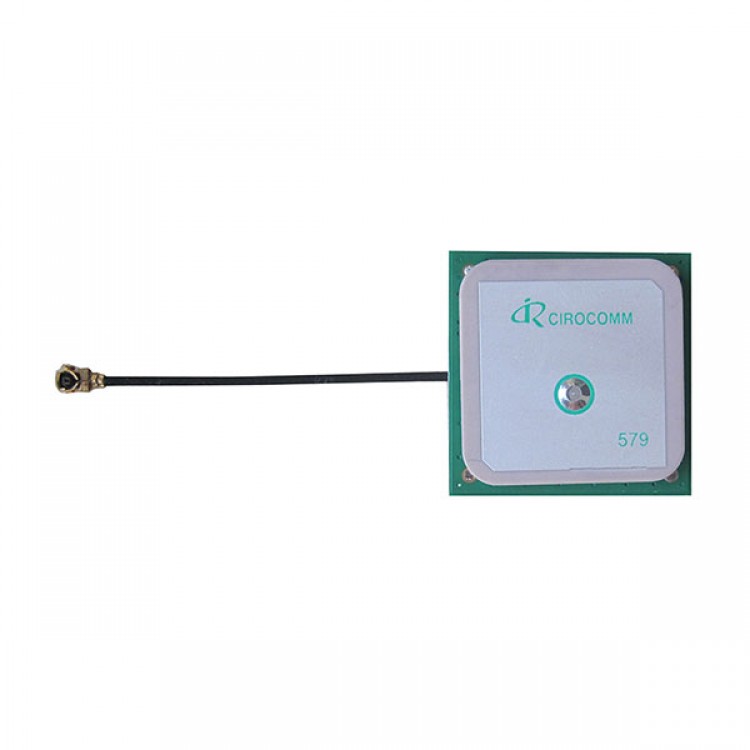

Taiwan 32db High Gain 5cm High Gain GPS Passive Built in Ceramic Antenna 25*25*5mm
Parameters:
- Dimension: 28*28*4.5mm
- Thickness: 25*25*2mm
Dielectric Antenna:
- Center frequency: 1575.42MHZ,1561MHZ
- Voltage SWR: 2:1
- Band width: ±30 MHz
- Impedence: 50Ω
- Max gainning: ＞3dBic Based on 7×7cm
- Gain range: ＞-4dBic at -90°＜0＜+90°
- Antenna polarization: RHCP
Amplifier:
- Amplifying gain: 28dB
- Noise series: 1.5dB
- Filter attenuation: 7dB Min f0+/-20MHz;,20dB Min f0+/-50MHz;, 30dB Min f0+/-100MHz
- Output voltage filter ratio: ＜2.0
- DC voltage: 3-5v
- Consumption: 10mA
- Weight: 7g
- Dimension: 46X38.5X13.5mm
- Cable length: 5/10/20cm can customize
- Connector model: IPEX
- Color: black
- Working temp: -40℃~+85℃
- Waterproof test: pass
- Humidity: 95%~100%RH
