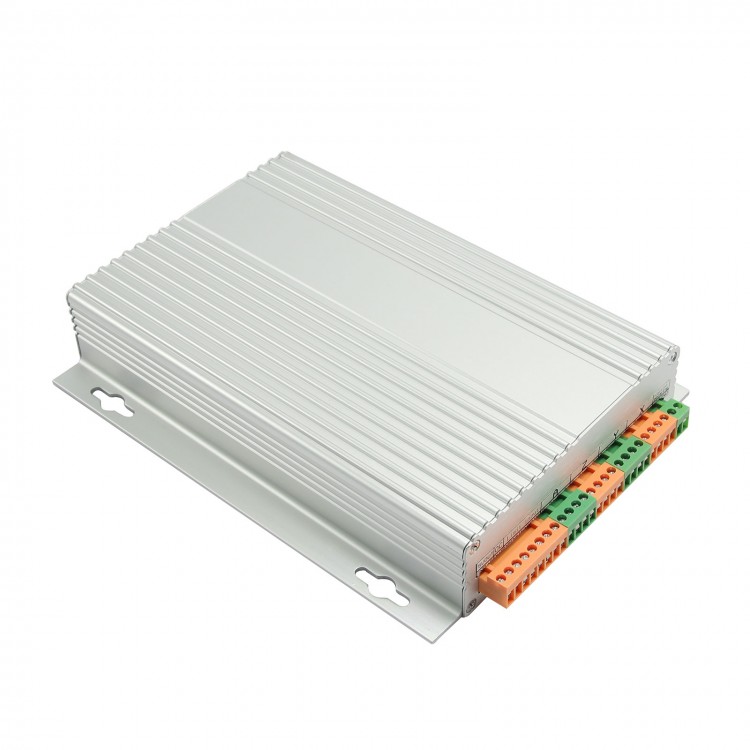

TB6560-T4 CNC Motor Driver Board Aliminium Shell 12V-30V TSD 3.5A Peak

TB6560-T4 CNC Motor Driver Board Aliminium Shell 12V-30V TSD 3.5A Peak
General introduction
- Low noises and low vibration due to the using of the 16 excitation two-phase bipolar stepping motor driver chip
- TB6560AHQ imported from Japan. The electric circuit is well-designed. All the electric items have been strictly checked to insure the quality.

Specification
- rated voltage: DC12-DC30V;
- Single-chip motor driver for sinusoidal microstep control of stepping motors
- Forward and reverse rotation
- Selectable phase excitation modes (2, 1-2, 2W1-2 and 4W1-2)
- High output current: IOUT = AHQ: 3.5 A (peak)
- Thermal shutdown (TSD)

 Advantages
-  one power only
- The control parts and the driving parts share one power. Users don’t need any more power.
-  adjustable electric current
- The out-put current can be adjusted according to user’s needs.
-  well-arranged ports
- The X port、the Y port、the Z port and the A port are connected to one port (3.96mm), which is very convenient for users to arrange the circuitry.
-  manual-control function
- Users can manually control the drive board through a standard port which has 15 pins
- protection of the computer
- By using the isolating power(1000V DC\DC) and the optoelectronic coupler, the drive board are separated from the computer. Such design can protect user’s computer in case the board are going abnormal.
- protection of the driver board
- The electric current of the drive board can be locked to 100% / 75% / 50% / 20% (up to user’s needs) of the normal one when no signals are received from the computer, thus the service life of the drive board is assured

5.1 DB25 LPT pin definition：
1: the 2nd output control (corresponding circuitry pls see OUT on the board, for electric relay or PWM OC
output control, output current=50mA, voltage=24V)
2 ：X axis pulse input
3 ：X axis direction setting
4 ：Y axis pulse input
5 ：Y axis direction setting
6 ：Z axis pulse input
7 ：Z axis direction setting
8 ：A axis pulse input
9 ：A axis direction setting
10：LPT input signal 1 (corresponding IN1 on the board)
11：LPT input signal 2 (corresponding IN2 on the board)
12：LPT input signal 3 (corresponding IN3 on the board)
13：LPT input signal 4 (corresponding IN4 on the board)
14: NC
15：LPT input signal 5 (corresponding IN5 on the board)
16：All axis enable input
17：The 1st circuitry output control (corresponding display light see RY1 on the board, for electric relay or
PWM OC output control, output current=50mA, voltage=24V)
18：GND
19：GND
20：GND
21：GND
22：GND
23：GND
24：GND
25：GND
5.2 Manual control ports and definition
Input signal=0-5V
1 ：X axis pulse input
2 ：X axis direction setting
3 ：Y axis pulse input
4 ：Y axis direction setting
5 ：Z axis pulse input
6 ：Z axis direction setting
7 ：all axis enable input
8 ：The 1st circuitry output control (corresponding display light see RY1 on the board, for electric relay or
PWM OC output control, output current=50mA, voltage=24V)
9 ：A axis pulse input
10：A axis direction setting
11：24V output
12：The 1st output
13：5V output
14：Direct connecting to IN1
15：Power GND
5.3 Power port
Power:12-24V
Current:10A
Pls see the picture for reference.
up: power GND
Down: power 12-24V
5.4 Ports for extending
From up to down:
1、IN1
2、IN2
3、IN3
4、IN4
5、IN5
6、OUT (display light see RLY2 to show the working condition ;current=50mA,voltage=24V)
7、+5V
8、GND
