| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $105.71 | $103.56 | $100.32 | $96.00 | Contact US |
TF02-i-RS485 0.1m-40m Industrial 7-30V Wide Voltage Laser Radar Sensor with RS485 Interface for Vehicle/UAV Drones
$151.01
TF02-i-CAN 0.1m-40m Industrial 7-30V Wide Voltage Laser Radar Sensor with CAN Interface for Vehicle/UAV Drones
$151.01
TFmini-i-RS485 0.1m-12m Industrial 7-30V Wide Voltage Laser Radar Sensor with RS485 Interface for Vehicle/UAV Drones
$107.87

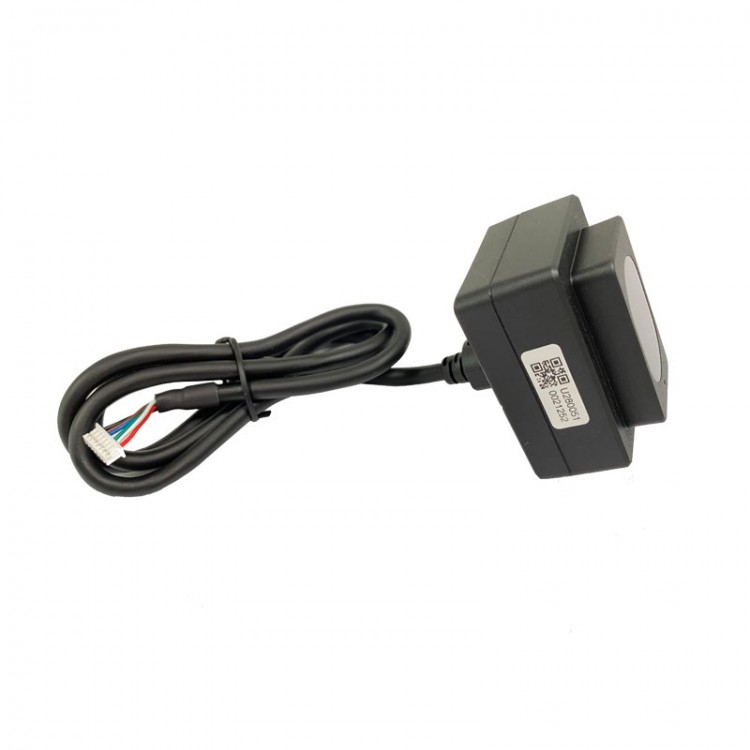

TFmini-i-CAN 0.1m-12m Industrial 7-30V Wide Voltage Laser Radar Sensor with CAN Interface for Vehicle/UAV Drones
Specification:
Product Performance:
- Range:
90% reflectivity, 0Klux 0.1m - 12m
10% reflectivity, 0Klux 0.1m - 7m
90% reflectivity, 70Klux 0.1m - 12m
10% reflectivity, 70Klux 0.1m - 7m
- Distance resolution: 1cm
- Accuracy: ±6cm (0.1m - 6m), ±1% (6m - 12m)
- Frame rate: 1Hz - 100Hz adjustable (default 100Hz)
- Ability to resist environmental light: 70Klux
- Working temperature: -20℃ ~ 60℃
- Protection level: IP65
Optical Parameter:
- Light source: VCSEL
- Centre wavelength: 850nm
- Human-eye safety: Class1 (IEC60825)
- FOV: 2°
Electrical Parameter:
- Power supply voltage: DC 7V - 30V
- Average current: ≤65mA at 12V
- Power consumption: ≤0.8W at 12V
- Peak value current: ≤100mA at 12V
Others:
- Cable length: 70cm/200cm
- Product size: 50 x 34 x 41mm
- Shell material: ABS/PC/PMMA
- Storage temperature: -30℃ ~ 75℃
- Net weight: 52g (with cable weight)
Package Included:
- 1 x Radar Sensor
