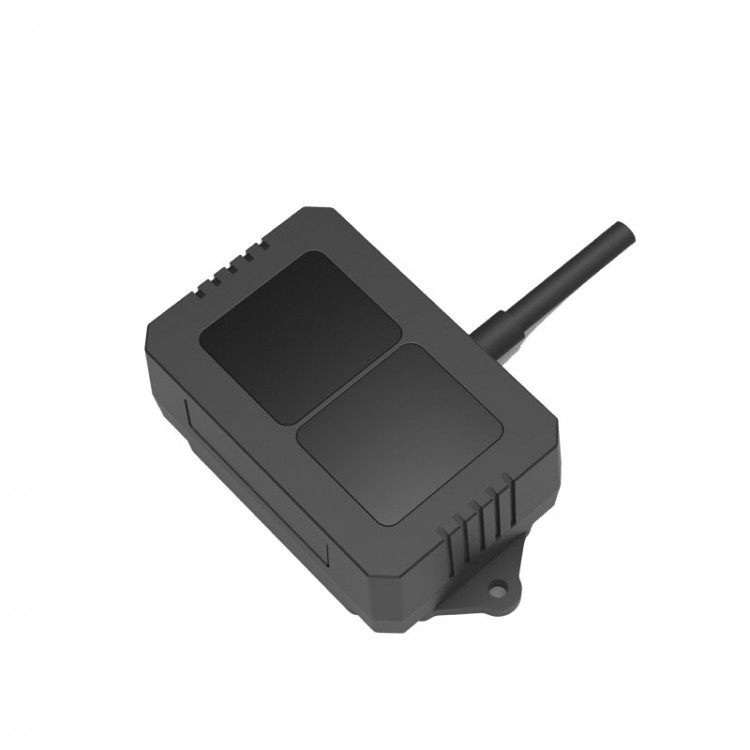

TF02-i-CAN 0.1m-40m Industrial 7-30V Wide Voltage Laser Radar Sensor with CAN Interface for Vehicle/UAV Drones

Availability: In stock, usually dispatched in 1 business day

  • Price:$151.01
  • Price in reward points: 1510 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $147.99 $144.97 $140.44 $134.40 Contact US
Quantity:

TF02-i-CAN 0.1m-40m Industrial 7-30V Wide Voltage Laser Radar Sensor with CAN Interface for Vehicle/UAV Drones

Specification:

Product Performance:
- Range:
  90% reflectivity, 0Klux 0.1m - 40m
  10% reflectivity, 0Klux 0.1m - 13.5m
  90% reflectivity, 100Klux 0.1m - 40m
  10% reflectivity, 100Klux 0.1m - 13.5m
- Distance resolution: 1cm
- Accuracy: ±6cm (0.1m - 5m), ±1% (5m - 40m)
- Frame rate: 1Hz - 100Hz adjustable (default 100Hz)
- Repeat accuracy: < 2cm (0.1m - 35m at 90% reflectivity)
- Ability to resist environmental light: 100Klux
- Protection level: IP65

Optical Parameter:
- Light source: VCSEL
- Centre wavelength: 850nm
- Human-eye safety: Class1 (IEC60825)
- FOV: 3°

Electrical Parameter:
- Power supply voltage: DC 7V - 30V
- Average current: ≤70mA at 12V
- Power consumption: ≤0.85W at 12V
- Peak value current: 100mA

Others:
- Cable length: 70cm

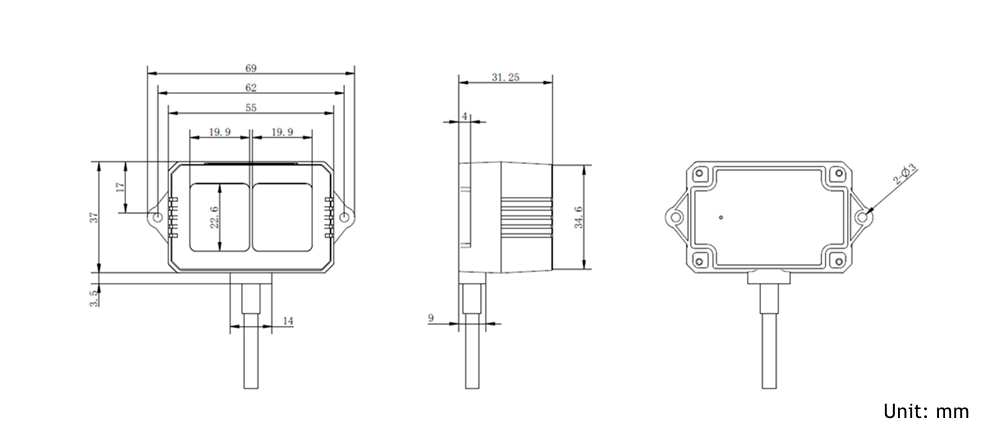

- Product size: 69 x 40.5 x 31.5mm
- Shell material: ABS/PC/PMMA
- Storage temperature: -30℃ ~ 80℃
- Working temperature: -20℃ ~ 60℃
- Net weight: 60g (with cable weight)

Package Included:
- 1 x Radar Sensor
