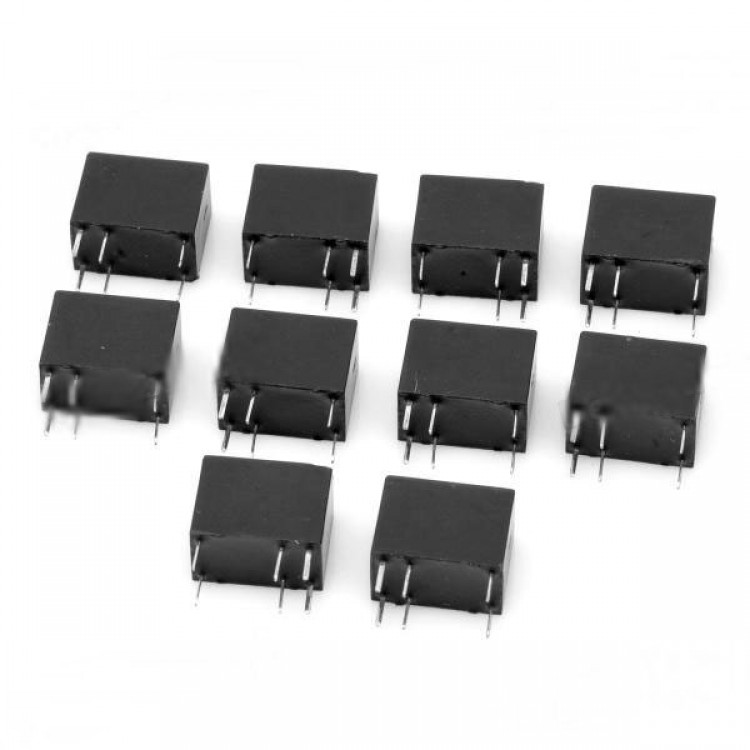

- PA66 material
- Designed for thermostst modem, computer, peripherals, video recording and security
Applications
- Surge Strength 1500V FCC68
- Low coil power requirement for IC Compatibility
- Terminals arranged on gird pattern
- Designed for compact, high density Mounting
- Contact Form: 1Z
- Max Operating Current: 2A
- Max Operating Voltage: 120V AC / 60V DC
- Max Operating Power: 240VA / 48W
- Rated Load: 2A 120VAC / 2A 24VDC
- Contact Resistance: 100
- Coil Ratings:
- Rated Voltage: 3~24V DC
- Nominal Operating Power: 150/200/360mW
- Operate/Release Time: 4mS / 3mS
- Mechanical Life(Min): 10,000,000
