Time Relay Controller Module Timer 5 Channel Relay Control Board 12V XH-M194

Availability: In stock, usually dispatched in 1 business day

  • Price:$30.64
  • Price in reward points: 306 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $30.03 $29.41 $28.50 $27.27 Contact US
Quantity:

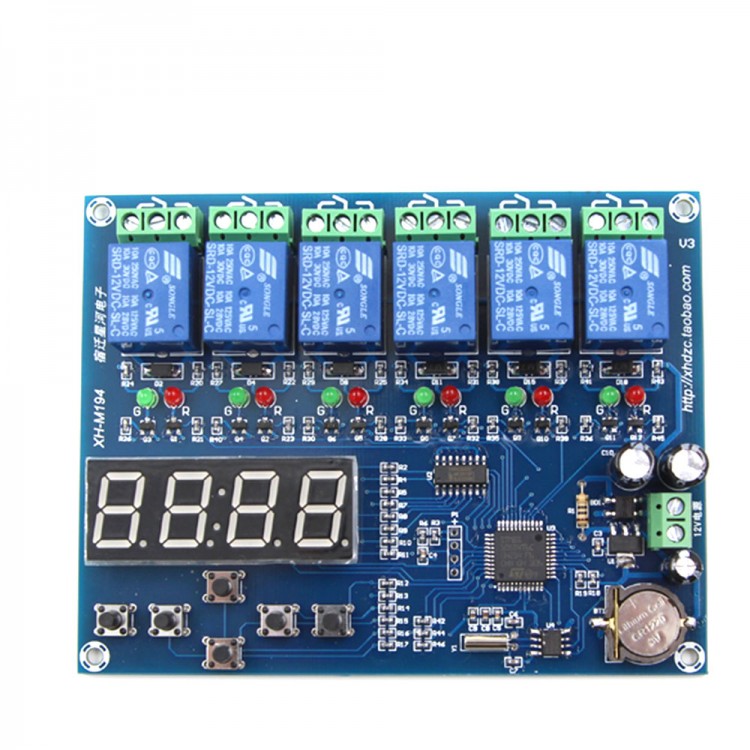

Time Relay Controller Module Timer 5 Channel Relay Control Board 12V XH-M194

Descriptions:

- Name: 5CH timing relay output module
- Model: XH - M194
- The motherboard power supply: AC/DC12V
- The output type: MAX250V10A relay output
- Appearance SIZE: 120 * 93 * 19 mm installation empty diagonal 113 * 83 mm
- Screen size: 50 * 19 mm
- Timing accuracy: 1 mins

Features

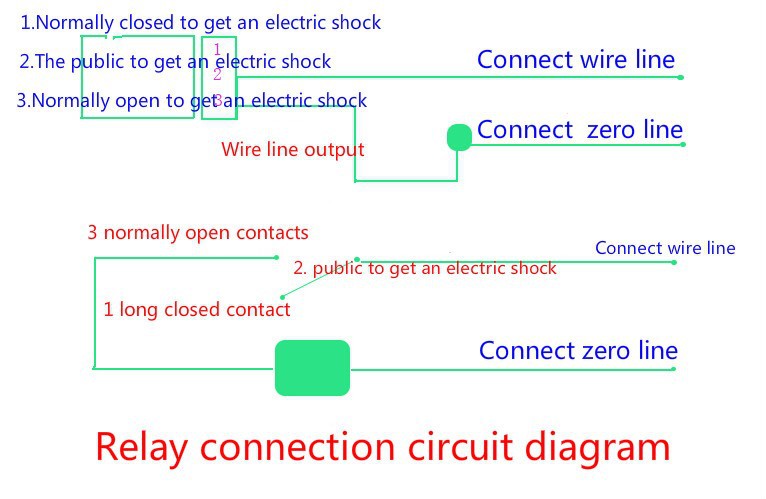

- This module can be Control five way independent relay and one way all Relay Output normally open or Normally closed to get an electric shock
- This module is applied to motor control, water pump control, the control of the boiler

Method of use

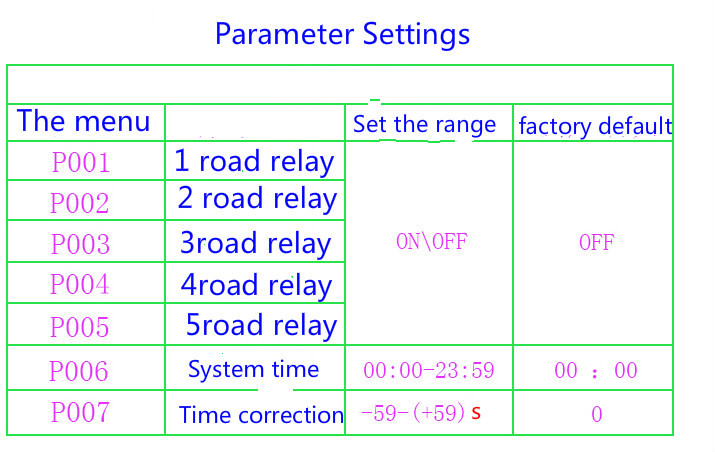

1 sets the system time: enter P006, set the time.If you have already set up can ignore time steps
2 open the first channel: press set button to enter P01, change to NO
3 set H1 and H2: after set, press the return key to exit
4 6 road relay for total output, that is, from 1 to 5 any road closed, then the sixth followed closed!

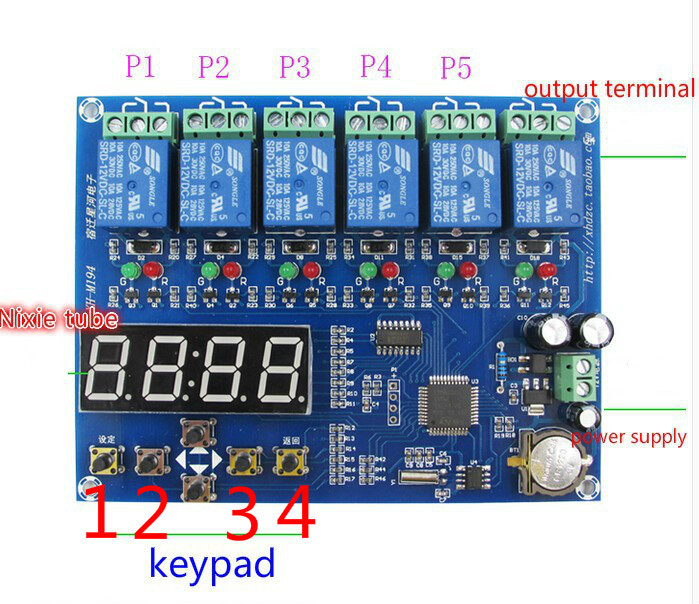

1: press once to enter menu P001 - P007
2: move to the left, setup time effectively
3: moves to the right, set a time effective
4:click a return to the higher level menu

Up-Key: increase in the currently displayed value, setting time, menu available at the time
Down-Keys: reduce the currently displayed value, setting time, menu available at the time

Packaging

- 1 x XH-M194 Module
