Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $182.95 | $179.21 | $173.61 | $166.15 | Contact US |

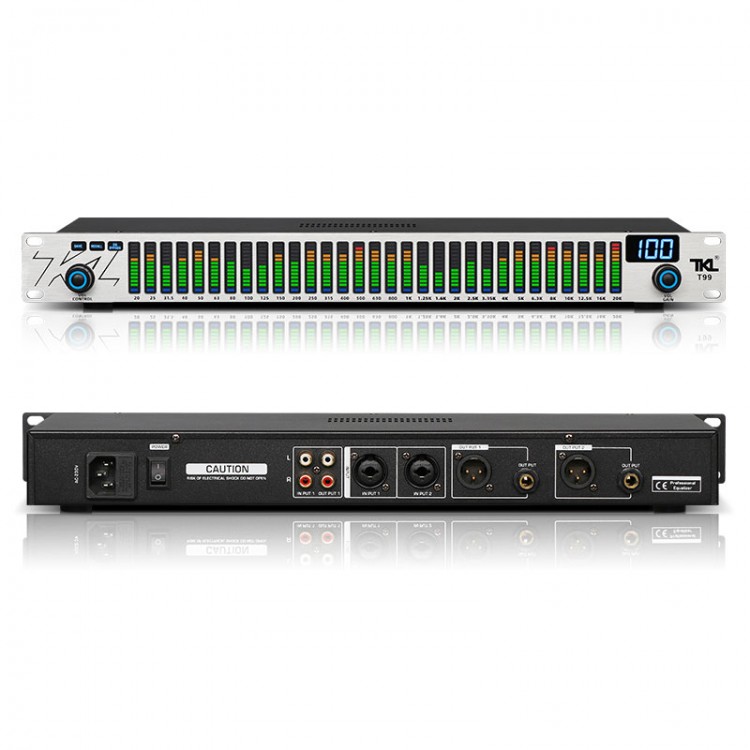

TKL T99 Silver Panel Digital Equalizer EQ Audio Equalizer Spectrum Display For KTV Stage Performance
①
SAVE: Press the SAVE button, turn knob CONTROL or GAIN to select any
mode 1-10, after the screen displays number 1-10, press SAVE after
confirming the mode to save the mode successfully.
② RECALL: Press
the RECALL button, turn knob CONTROL or GAIN to select any mechanical
type from 1-10; the screen displays 1-10 number options, confirm the
mode and press RECALL to call the mode successfully.
③ EQ BYPASS:
Press the EQ BYPASS button, the machine does not go through any
frequency band value adjustment, the screen displays "--" means that the
current state is the pass-through function, then press this button
again to cancel the pass -through function.
④ LCD: Display the volume
of the signal passing through the machine 01-100, save and recall
modes, 0-10 gain attenuation, ±18db value, - means through state.
⑤
VOL CONTROL: System control knob. When the machine is stationary, turn
CONTROL knob to adjust the volume of the machine. Press the CONTROL knob
to start frequency band parameter adjustment. When the rotary knob
jumps to the 20-20K frequency band, the blue light under the
corresponding frequency band of the panel will flash. Rotate the CAN
knob to increase or decrease.
⑥ 20db-20K: 31-segment spectrum display
light, 20db-20K frequency band selection (the 31-segment signal light
will change according to the corresponding signal when the signal is
input). The frequency band signal strength changes. Green light
indicates normal state. Yellow light indicates warning state. Red light
indicates impending state. The static state of blue light represents
normal, and the flashing blue light represents the increase of frequency
band parameters, which can be attenuated and adjusted.
⑦ VOL GAIN:
When the machine is stationary, rotate GAIN to adjust volume. Press the
GAIN knob to start frequency band parameter adjustment. When turning the
knob to jump to 20-20K frequency band, the blue light below the
corresponding frequency band on the panel will flash. Turn the CAIN knob
to adjust. It will automatically exit this function when there is no
operation after blinking for 8 seconds.
Package Included:
- 1 x Set of Digital Equalizer
Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
