TLE5012 Magnetic Encoder Angle Sensor 4096 Lines High Precision 15Bit ENC_ABZ_2V0 For ABZ/SPI/RS422

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.82
  • Price in reward points: 188 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.44 $18.07 $17.50 $16.75 Contact US
Quantity:

TLE5012 Magnetic Encoder Angle Sensor 4096 Lines High Precision 15Bit ENC_ABZ_2V0 For ABZ/SPI/RS422

Specifications:

- Model: TLE5012
- Item name: Magnetic encoder, angle sensor
- Power supply: 4.5V~5.5V
- Resolution: 16384 (4096 lines)
- Support TTL signal ABZ output, RS422 differential ABZ output, support SPI communication
- Reference program for stm32 spi to read encoder position is provided

Installation Tips:
- The sensor chip should be coaxial with the magnet (error control is within 0.5mm/0.02")
- The distance between the sensor chip and the magnet is controlled within 1mm~3mm/0.04-0.12"

Package Included:

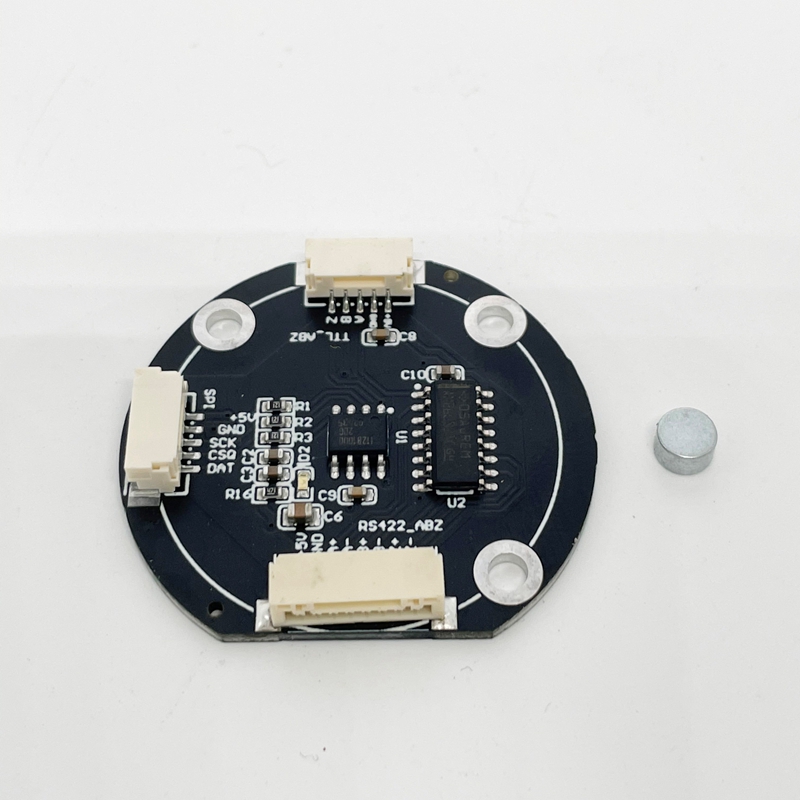

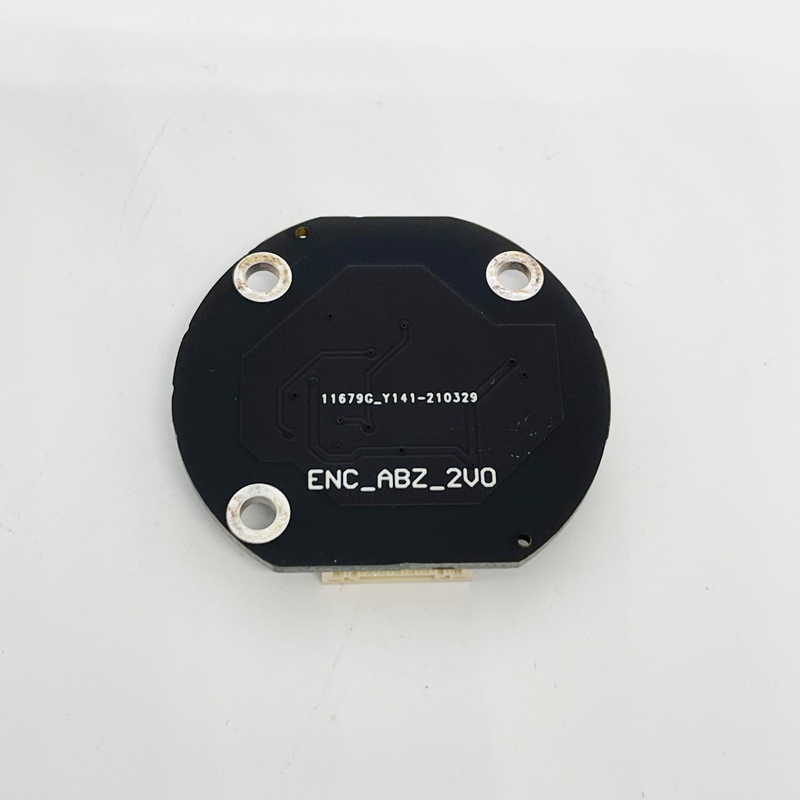

- 1 x Encoder Board
- 1 x Round Magnet

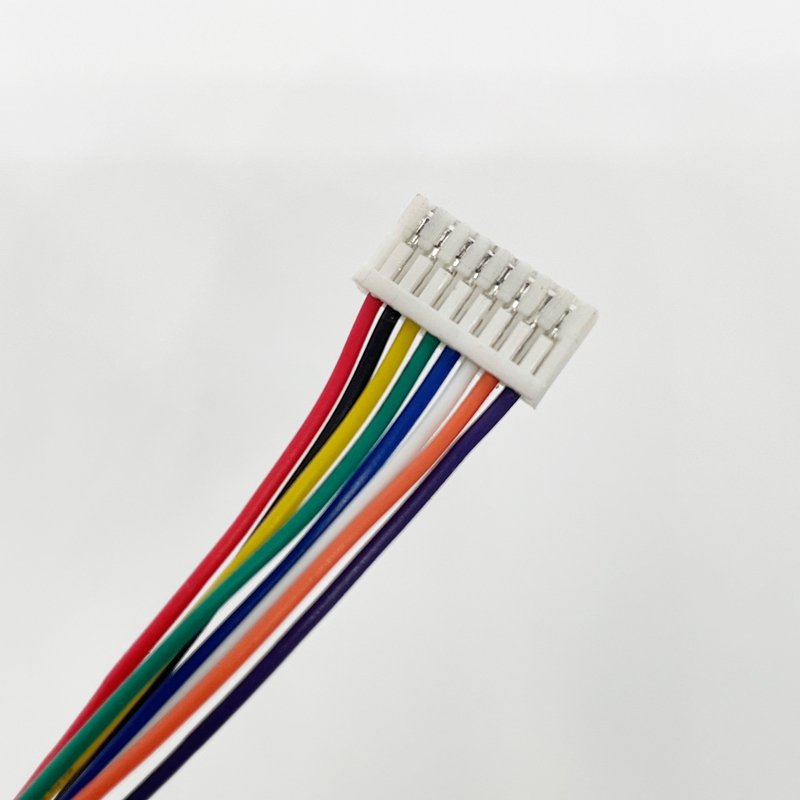

- 1 x Signal Cable
