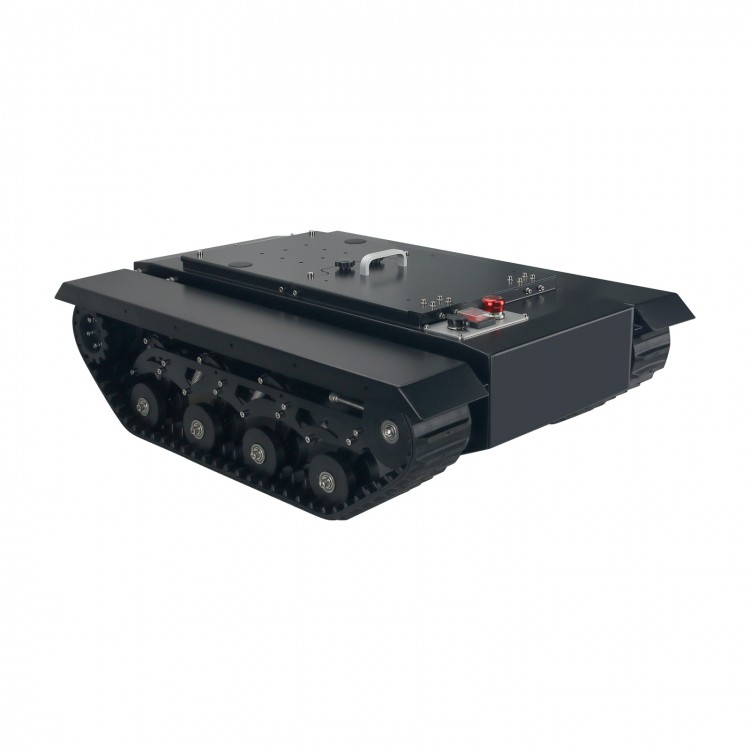

TR500S Robot Chassis Tank Chassis All-Terrain Chassis Rubber Track Assembled Load 50KG No Controller
Features:
- TR500S brushless DC motor robot chassis
- Suitable for universities, laboratories, scientific research units, robot enthusiasts, etc.
- High-carbon steel metal structure, shock-absorbing tank chassis
- Rubber track, large load
- 24V 300W DC brushless motors with incremental encoder
Application Scenarios:
- ROS autonomous navigation robot
- Outdoor exploration robot
- Mobile Targeting Robot
- Photovoltaic panel cleaning robot
- Anti-epidemic robot
- 4G/5G network robot
- Outdoor shooting robot
- Networking robot
- Cruising robot
- EOD robot
Product Parameters:

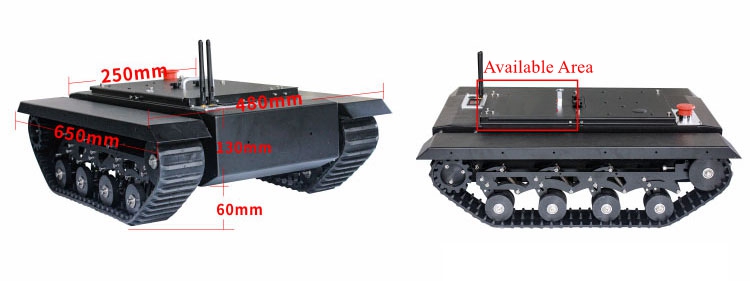

- Dimensions: 650*480*190mm
- Practical size of cabin: 250*170*115mm
- Tank net weight: about 22KG
- Tank motor: Brushless DC motors with incremental encoder
- Running speed: 0-2m/s (The running speed depends on the motor speed and voltage)
- Rated power: 300W*2
- Rated voltage: 24V default voltage
- Rated current: 25A
- Maximum obstacle crossing: 120mm
- Track width: 80mm
- Track material: rubber track with built-in tension layer
- Body material: 1.5mm steel
- Surface treatment: electrostatic paint
- Maximum climbing: 40°
- Shock absorption design: 8 groups of independent suspension shock absorbers
- Maximum load: 50KG default configuration

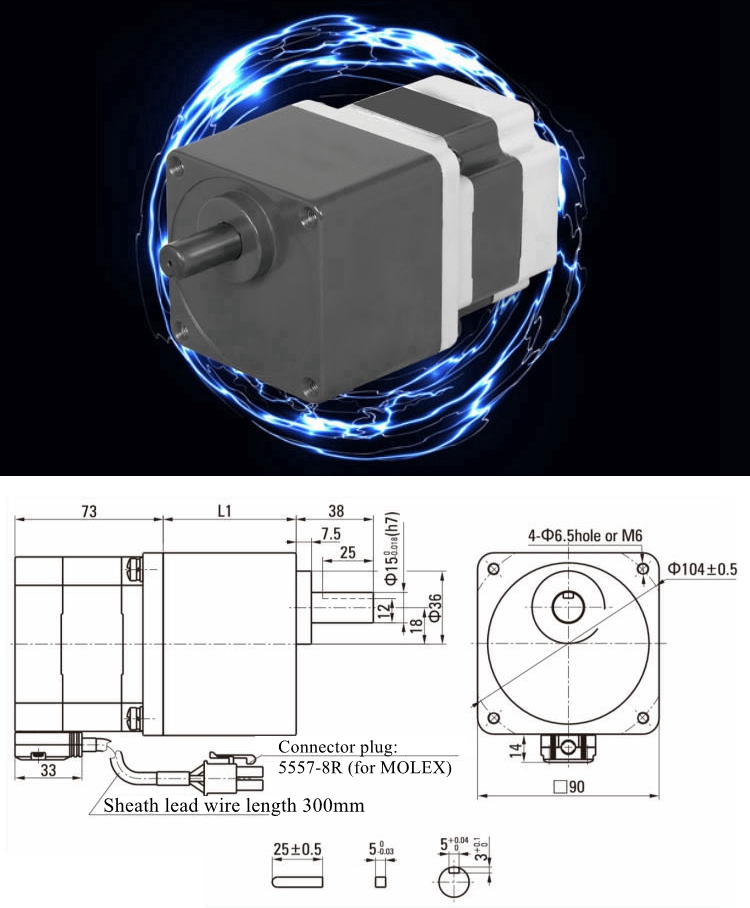

Parameters of DC Brushless Motor:
- Voltage: 24V
- No-load current: 1.0A
- Rated current: 15.0A
- Rated power: 300W
- No-load speed: 3500RPM
- Rated speed: 3000RPM
- Rated torque: 0.955N.m
- Output speed: 300RPM
- Reduction ratio: 1:10
- GU allowable moment: 7.0N.m
Package Included (Assembled):
- 1 x Tank Chassis
- 2 x Brushless Motors With Encoder
- 2 x Brushless Drivers
Note:
- The robot is assembled and has been debugged before delivery.
- Controller system and lithium battery set are not included in this version.
- It is recommended to use a 24V battery with 30A continuous discharge current. Battery is not included.
