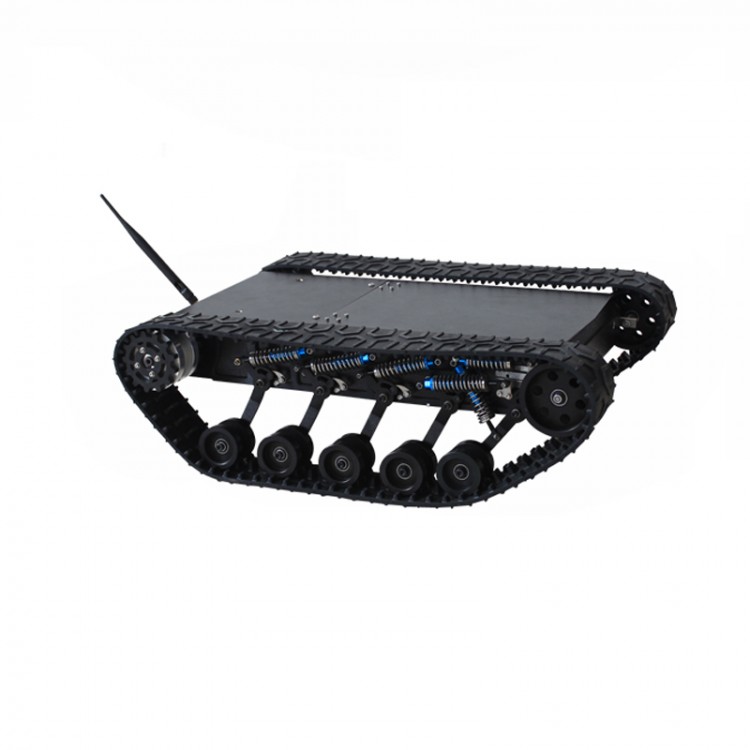

Tracked Robot Tank Chassis RC Smart Crawler Tank Full Kit Max Load 20kg Safari-138T Package 2
Features:
- Chassis Tank Car: With outstanding off-road and stable performance, the Safari-138T tank platform meets your strict requirement.
- Large Supporting Area: Featuring lower sinking degree and perfect off-road mobility, it is quite suitable for muddy, soft and other complex environment.
- Small Steering Radius: It enables pivot steering.
- Anti-Slip Design: Special tracks bring in excellent adhesive ability and greater traction. 10pcs independent shock absorbers cut down shock.
- Wide Application: It can be used for detection, photography, education etc.
Parameters:
- Power: 24V DC Brushless Motor
- Suspension System: Christy Suspension
- Rated power: 138W*2
- Rated Torque: 8NM
- Running Speed: 0~1.2m/s
- Maximum Across obstacles: 50mm
- Maximum climbing: ＜40°when loading
- Shock Absorber: 10pcs independent shock absorbers
Dimensions:
- External Dimensions: 600 x 450 x 190mm
- Internal Dimensions: 300 x 240 x 80mm
- Chassis Height: 90mm
- Track Width: 80mm
Weight:
- Chassis Weight: 24kg
- Load Capacity: 20kg
Materials:
- Wheel: Aluminum
- Chassis Body: Steel Plates
- Track: Rubber + Fiber
- Surface Process: Plastic-Sprayed/Partial Painting
Package Included:
- 1 x Tank Chassis Full Kit (Including Chassis, Drive, Remote Control)
Note: Battery is not included in this package.
