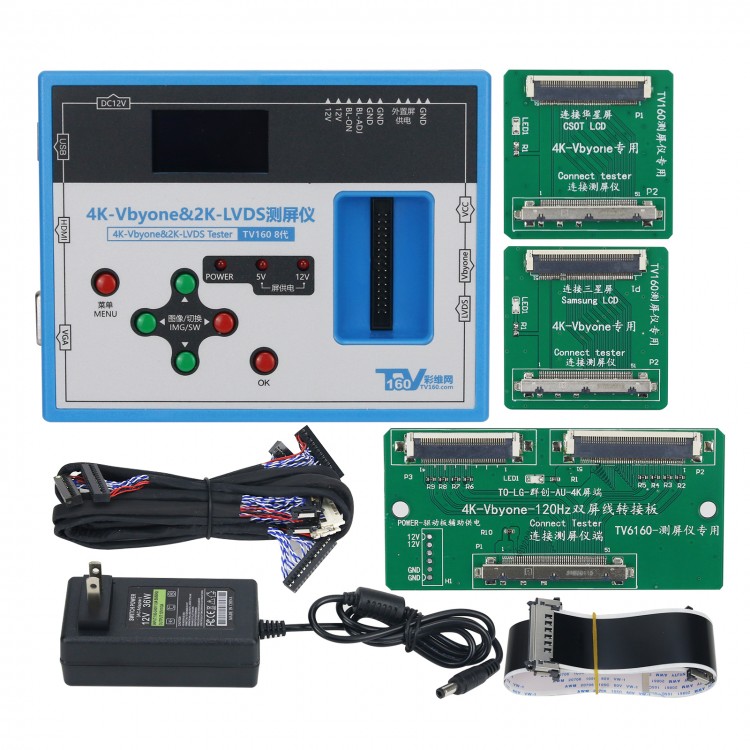

TV160 8Th Generation LCD Screen Tester Set 4K-Vbyone & 2K-LVDS For TV Screen & Monitor Screen Test

TV160 8Th Generation LCD Screen Tester Set 4K-Vbyone & 2K-LVDS For TV Screen & Monitor Screen Test

Features:
1. Support 2K And 4K TV screen And Monitor Screen Test, the output signal is: 4K-Vbyone signal And 2k-LVDS signal
2. Support Picture Testing with USB Player, you can customize the Video and Picture to test the screen According to your requests or aging screen
3. With HDMI/VGA interface, you can easily input such signals
4. Built-in test images: five images of red, green, blue, black and white field, which meet the needs of conventional screen test
5. Perfect protection circuit, when the screen wire is wrongly connected or the screen body is not connected, there will be a prompt when the screen is turned on
6. Support USB flash disk upgrade, upgrade is more convenient, screen parameters can be added by contacting customer service, and the upgrade program will be sent later, and the USB flash disk can be upgraded directly
7. There is a backlight control interface and an external screen power supply interface to meet the needs of screen measurement in special scenes
8. Compatible resolutions are as follows :
* 2K-LVDS: 1024*768；1366*768；1280*800；1280*1024；1440*900；1600*1200；1920*1080；1920*1200;
* 4K-Vbyone: 3840*2160-1FC (1 partition); 3840*2160-2FC (2 partitions); 3840*2160-LGD (for LG screens, with better picture quality when LG screens); 3840*2160-120Hz ( 4k-120Hz dual-screen cable test-dual-screen cable conversion board required); 1920*1080-JEIDA (for high-definition screen); 1920*1080-VESA (for high-definition screen-2 sets of Vbyone signals
* 1920*120HZ-JEIDA (for 4 groups of Vbyone signal screen)
* 1920*120HZ-VESA (for 4 groups of Vbyone signal screen)

Package Included:
- 1 x Set of LCD Screen Tester
