TZT DMX1024D ART-Net DMX 1024 DMX Lighting Controller with SPI for WYSIWYG to Control Light Strips

TZT DMX1024D ART-Net DMX 1024 DMX Lighting Controller with SPI for WYSIWYG to Control Light Strips

Description:
DMX Input/Output
* Support DMX input/output. 512 and 512 channels (1024 channels in total)

Two-Channel DMX signals and SPI signals are Output Simultaneously
* SPI signal can control light strips including P9813, WS2801, WS2811, WS2812, 1903 and TM1804.
* It cannot control ordinary RGB strip lights. Only programmable strip lights can be controlled. It can output 1360-point RGB: 680 points for each channel. DMX signal output is also supported.

Bidirectional (Set by Software)
* Art-Net to DMX and DMX to Art-Net.
* Input function: connect an external physical console to PC 3D software to simulate the operation of stage lights:
1. Support WYSIWYG software to connect to computer and physical console for computer 3D simulation.
2. Free support for physical console to connect to Magic 3D Easy View software for Sunlite! Easy View 3D is an easy-to-use stage lighting scene simulation software!
3. Support China-made LightingStudio professional lighting simulation software (users need to go to the official website to buy a dongle).
* Output function: use software to control physical lights to do light shows.
1.Support MCSWE light console software to do sound and light synchronization.
2. Support for FreeStyler X2 Chinese/English. Support 3D, and it can be used with MIDI software to achieve music synchronization effect, with tutorials.
3. Support for Pearl 2004 analog software (output DMX signal to control lights). Provide software.
4. Support for Resolume_Arena. Support physical consoles such as for Tiger Touch, MA and Flying Pig as extenders to output DMX signals.

Support Software with ART-NET Output/Input
* It is a multifunctional lighting software controller

Two-way Transfer Capability:
* Art-Net to DMX512 and DMX512 to Art-Net.
* It has node mode and server mode. In node mode, it receives ArtNet signals through the network cable and converts them into DMX512 (2-way) signals;  In server mode, it converts the DMX512 (2-way) signal to ArtNet signal and transmits it over the network cable.

1024-Channel Controller
* With 2 DMX domain ports, a total of 1024 channels. It supports for MCSWE light console software, MADRIX (powerful LED pixel light video screen playing software. Full-featured version requires USB-KEY), Abuelites, PC_DIMMER, FreeStyler, Magic Q and other lighting software (these software may have limitations) to output DMX-512 signals to control lighting equipment. It can also be used as a DMX output expansion device for network lighting consoles.

Network Connectivity
* The controller can be connected to the network card of your computer through a network cable. You can also connect the controller through the router. Then through the wireless router connection, you can use the laptop wireless WIFI to control the controller. At the same time, it supports the software for MAC system! As long as your software has Art-Net standard features, it can be used with the controller. With 10/100M adaptive network port, IP and sub-net mask can be modified by yourself. One network cable can transmit up to 256 DMX lines (domains)

Features:
* 1024 channels (2 DMX lines. Can be set as input or output)
* 32-bit processor for ARM and built-in high-speed network processor chip
* 10/100M adaptive network port, IP and sub-net mask can be modified by yourself
* One network cable can transmit up to 256 DMX lines (domains)
* After a large number of performances and practical applications, stable quality, no delay in transmission, the DMX refresh rate of this product is 40Hz/s
* Convenient and fast to use. For professional uses, with stable performance
* It can transmit DMX signals over long distances

Settings:
* The default IP address is: 192.168.1.100, and the sub-net mask: 255.255.255.0. The working mode, IP address, mask and SPI-IC model (WS2812 by default) can be set through the software, and the IP can be set using our setting software or the DMX-Workshop software on the ART-NET website.

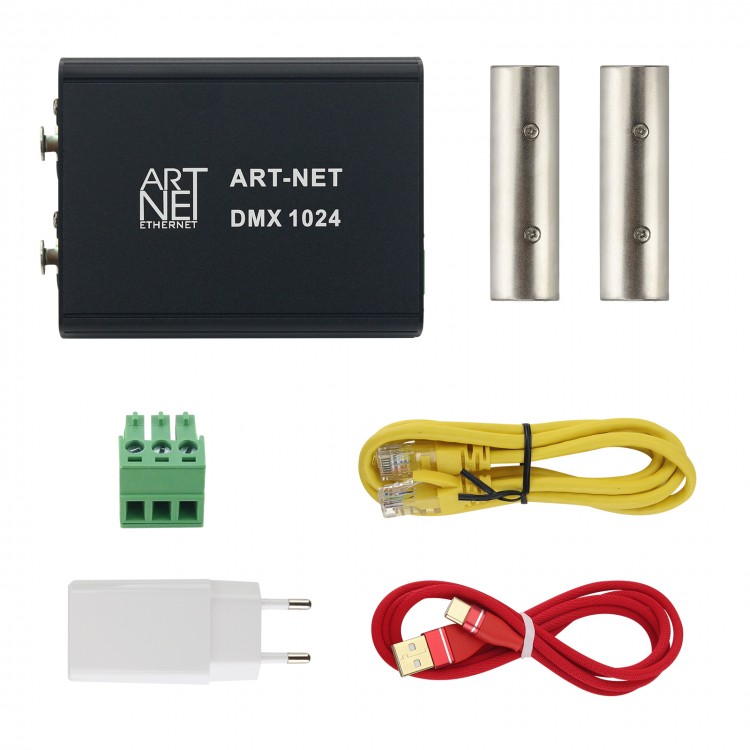

Package Included:
* 1 x 1024-channel controller
* 1 x Power adapter (100-220V to USB 5V)
* 1 x USB power cable

Note:
* Professional knowledge is highly recommended.

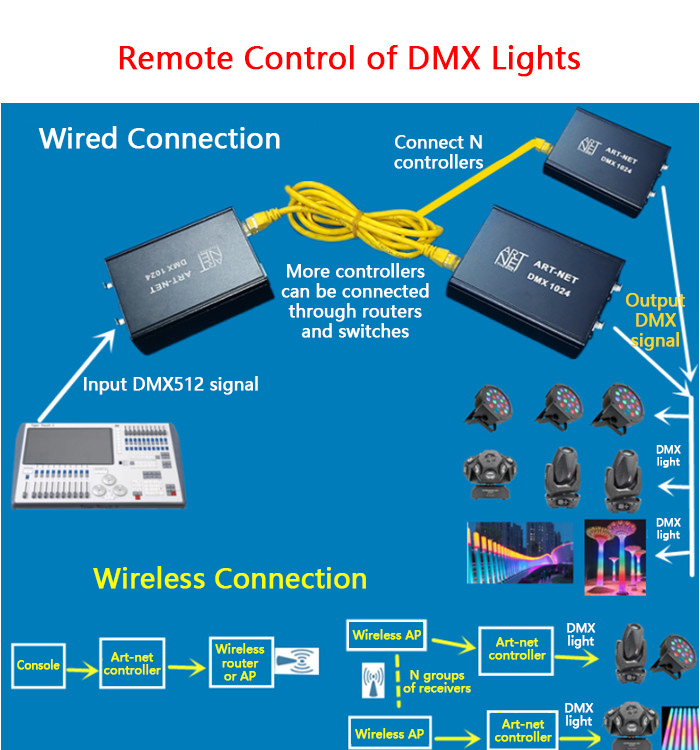

Connection Diagram 1:
An external light console can be connected to the controller, and you can use 3D software in your computer to simulate the operation of lights (DMX to ART-NET signal, decoded to the computer's software for WYSIWYG/LightingStudio/Easy View 3D for simulation)

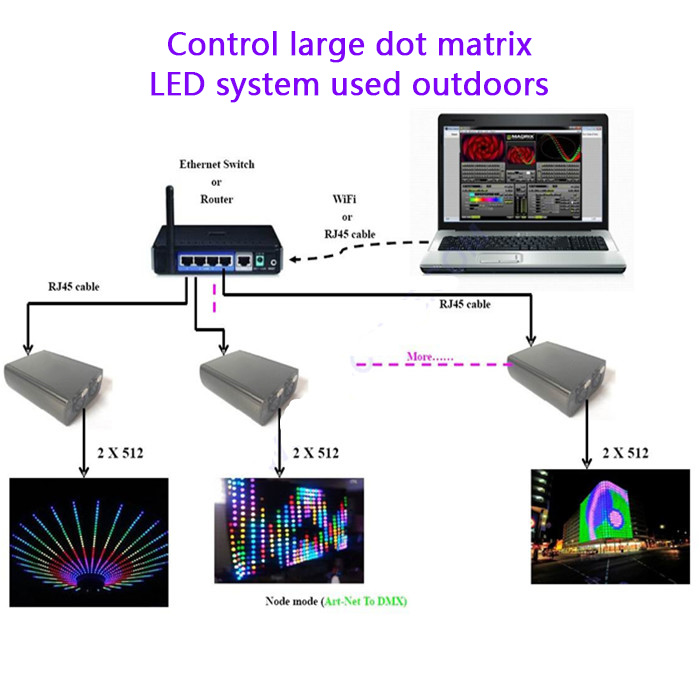

Connection Diagram 2:
Connect the controller to the network card port of the computer. Control various stage lights through software installed on the computer.

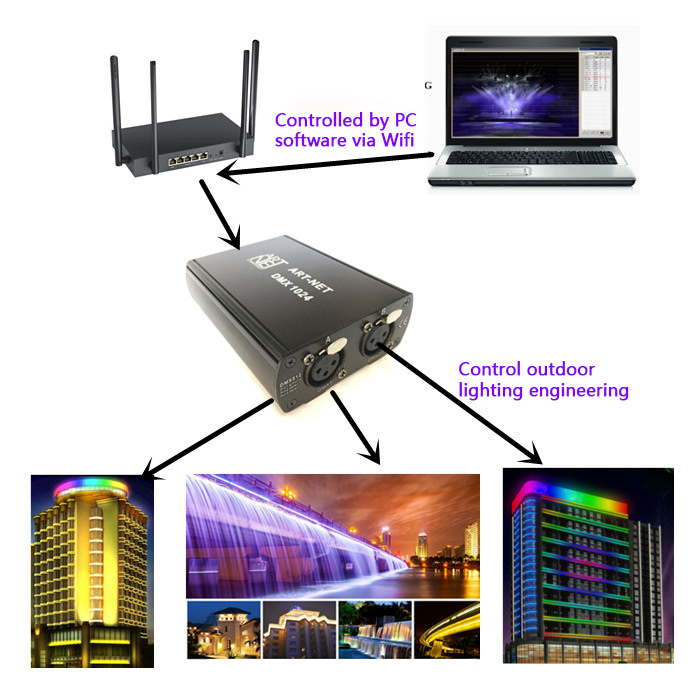

Connection Diagram 3:
It can also be connected through a wireless router and controlled by using the laptop wireless WIFI. It is very easy to use.

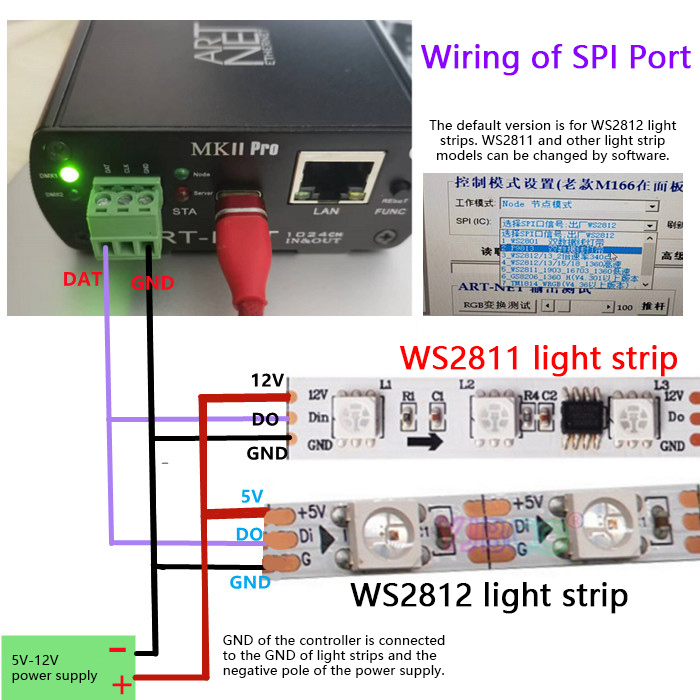

Connection Diagram 4:
Two-channel DMX signals are output simultaneously with SPI signals. The SPI signal can directly output the control signal of P9813 and WS2801 to control the LED pixel light (one controller can be connected to 340pcs RGB LED pixel lights. Multiple controllers can be purchased to expand more DMX outputs. The software used here is the software for MADRIX to control the LED pixel light. The controller can directly output the SPI signal without the need to connect the DMX to SPI decoder.
