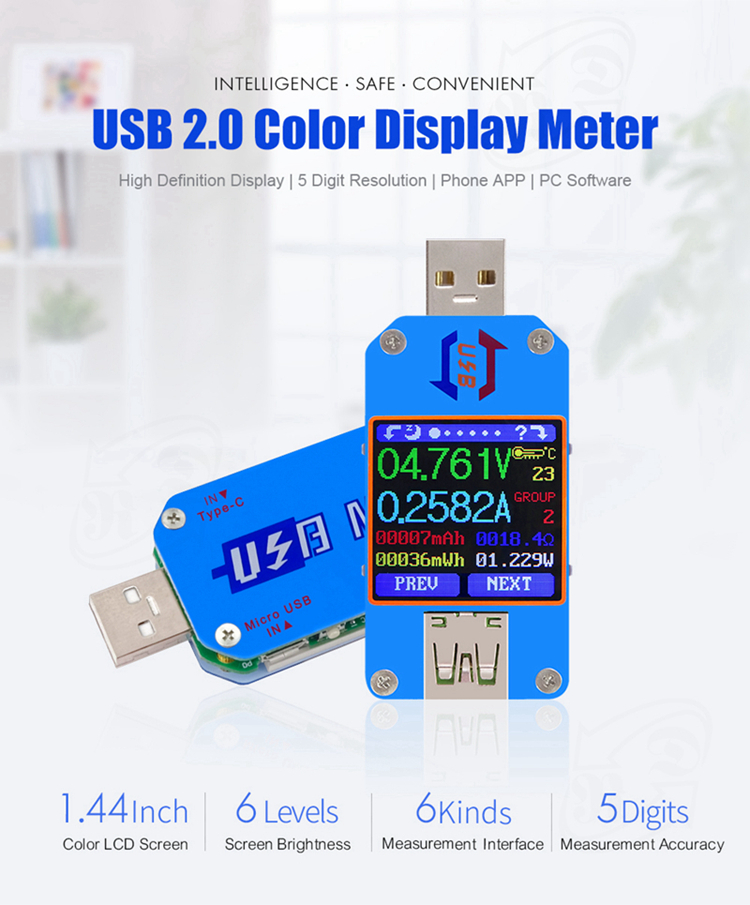

UM25C USB Voltage Current Tester USB2.0 Type-C Bluetooth Communication + HD35 USB Electronic Load

Availability: In stock, usually dispatched in 1 business day

  • Price:$33.30
  • Price in reward points: 333 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.63 $31.97 $30.97 $29.64 Contact US
Quantity:

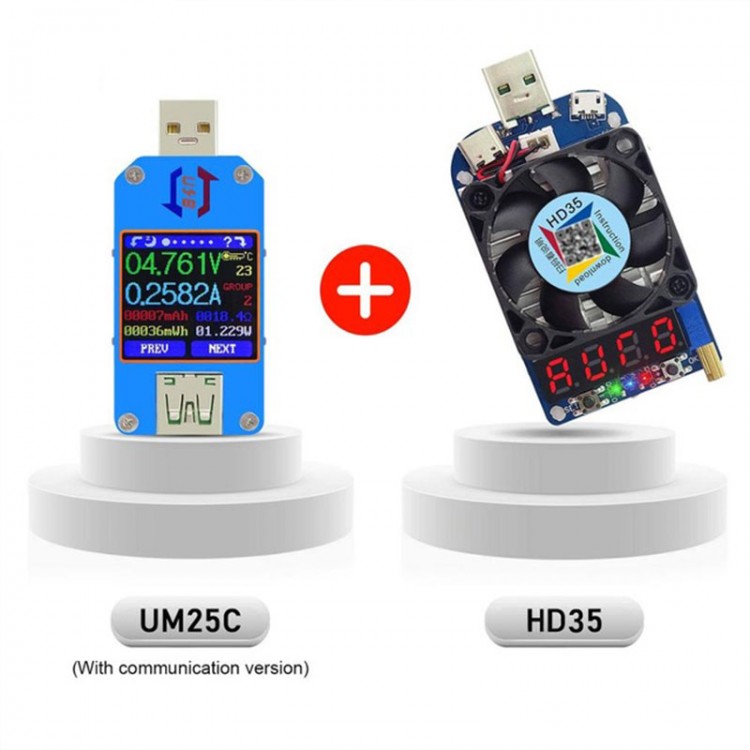

UM25C USB Voltage Current Tester USB2.0 Type-C Bluetooth Communication + HD35 USB Electronic Load

Package Included:

- 1 x UM25C USB Meter Tester with Storage Box
- 1 x HD35 USB Electronic Load

File Download Way:
1.User manual, PC software installation instruction and PC software and APP for Android download link: http://www.mediafire.com/folder/q2b8h079hpywq/UM25
2. APP For IOS: search UM meter on APP store for iPhone to download
3. APP For Android: search UM meter at Google play to download

Note:
Recently products appearance is updating, there are some words changed. Other things are the same. So please refer to the received product.

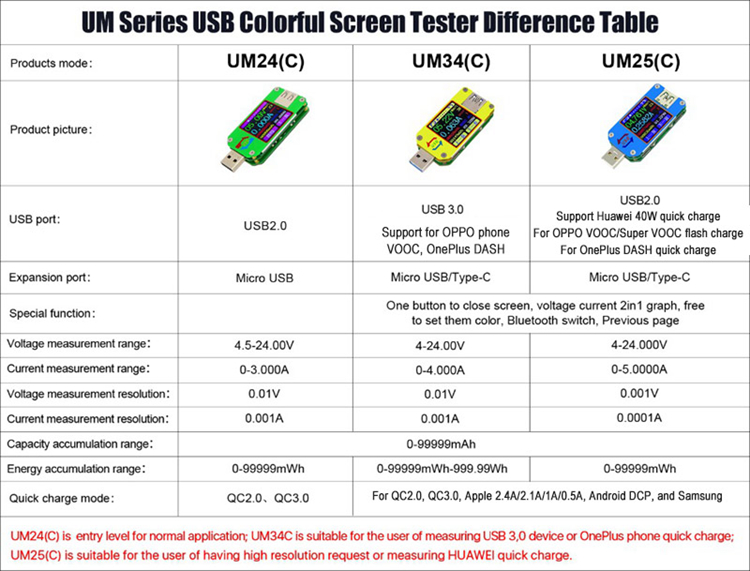

1.UM25 is no communication version, UM25C is communication version by Bluetooth connection.

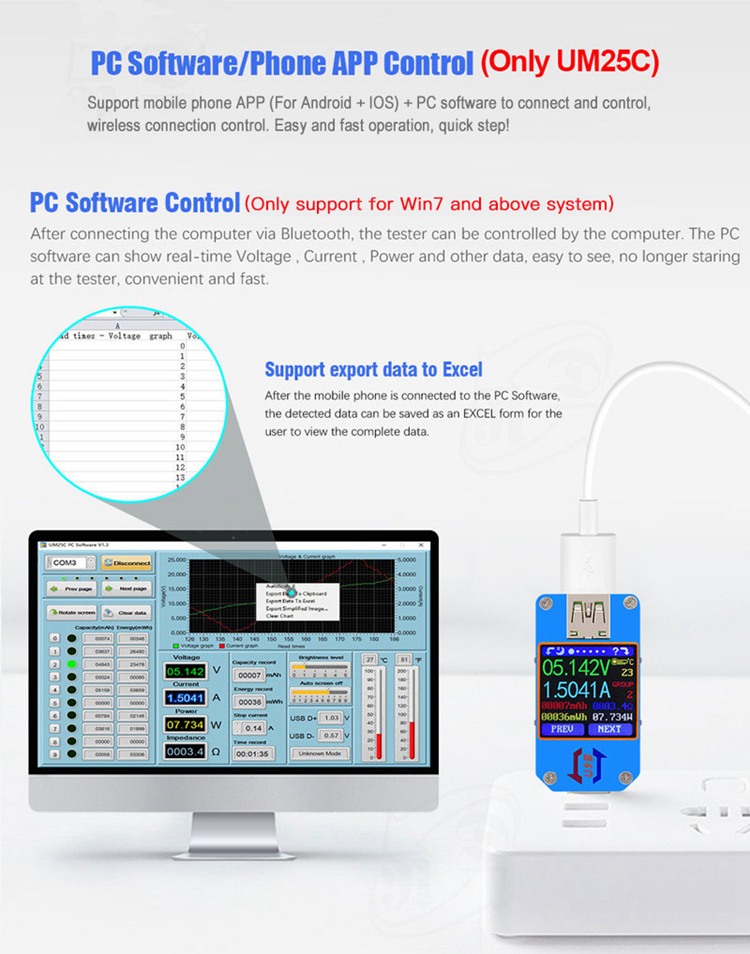

2.PC software support for PC window (for Win 7 and above) and Phone Android and IOS (for Android 5.0 and above, IOS 8 and above , support 14 kind of language, Chinese, English and Russia ... ). (Some brand phone system for Android belongs to custom-built system, our APP will not compatible with. For example, it is not for Xiaomi, Nokia and other brands, so please download and test before buying).

3.User manual, PC software installation instruction and PC software and APP for Android download link: http://www.mediafire.com/folder/q2b8h079hpywq/UM25
For IOS APP, search UM meter on APP store for iPhone to download

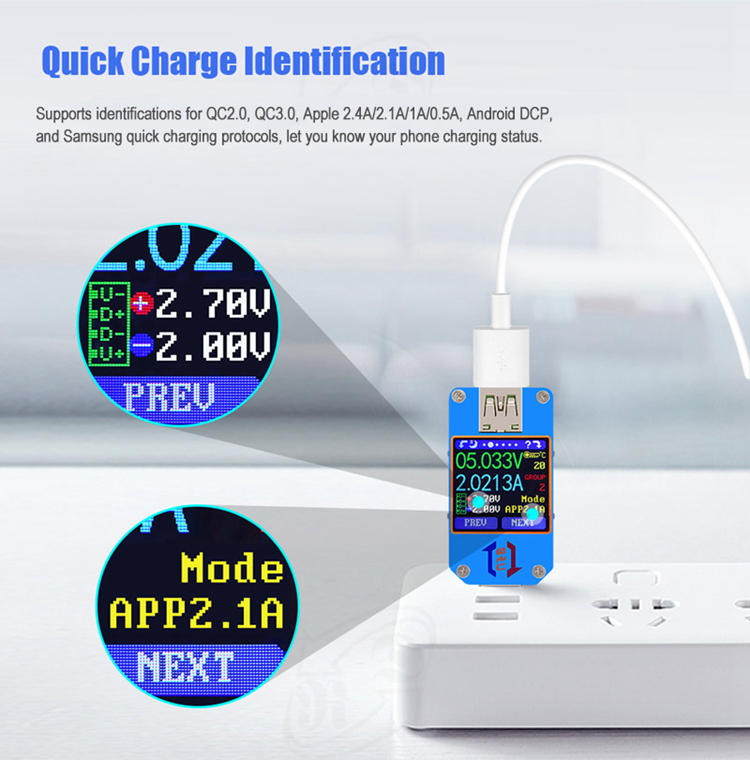

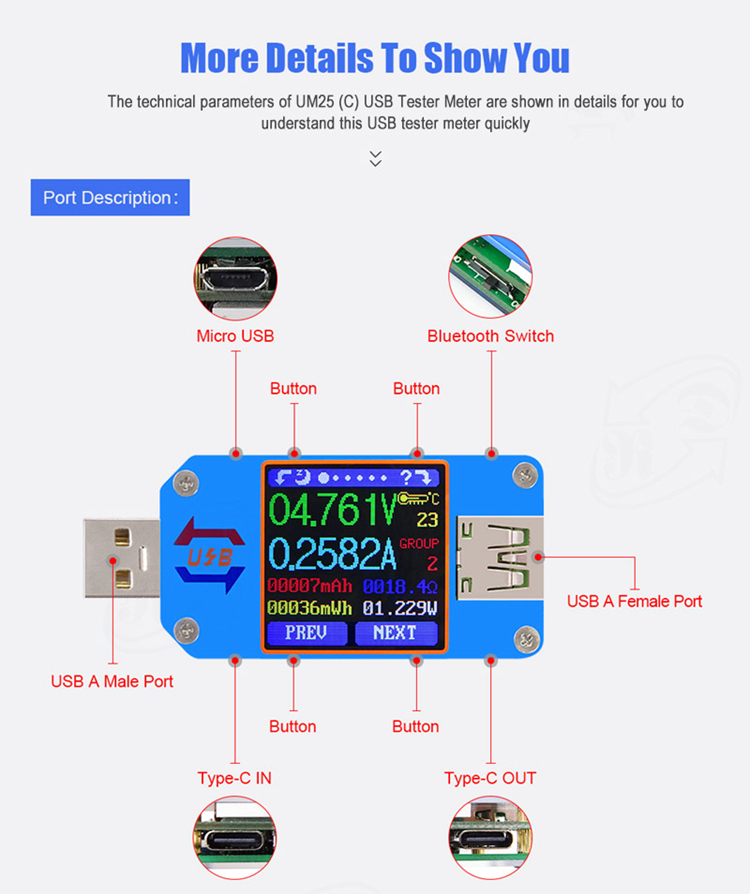

4: USB2.0 support for Huawei quick charge. There is type-c in and type-c output port, it can measure type-c cable , support type-c charge , but not type-c charger identify resistance, not trigger.

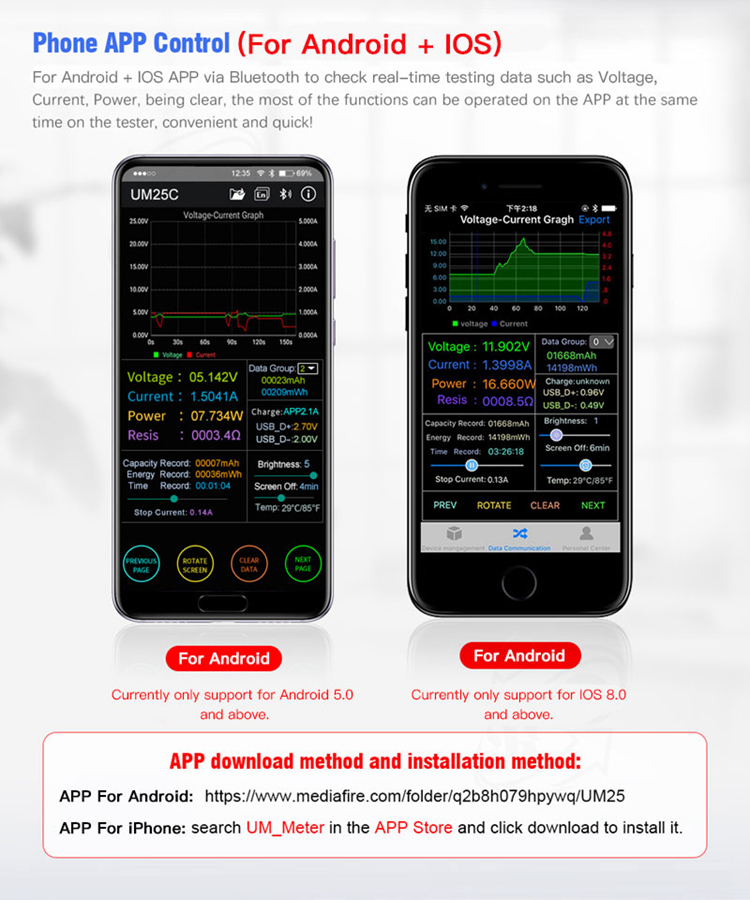

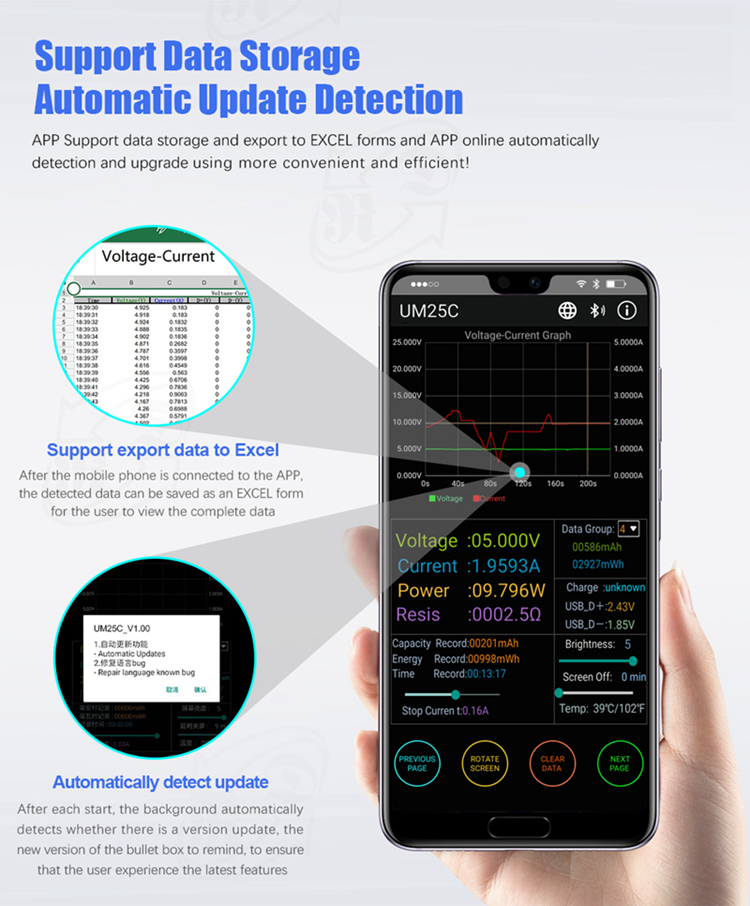

5. For Android and IOS APP:
A: APP only support for Android 5.0 and above (for device must over iPhone 6), and IOS 8 and above.
B: Allow APP to do in the background, not be cleaned.
C: allow APP self-starting.
D: Allow APP stay after screen locked, not be cleaned.
E: for desktop, when you use the Bluetooth adapter to make Bluetooth connection, Please don't use the adapter own driver, and use the system Bluetooth driver for windows, otherwise the module can't make SSP series port communication. If you have installed the adaptor driver, you can uninstall it and unplug the adaptor, then plug in again, the system will install it automatically.

6. Description video:
A: https://www.youtube.com/watch?v=rNDMIFiWq64

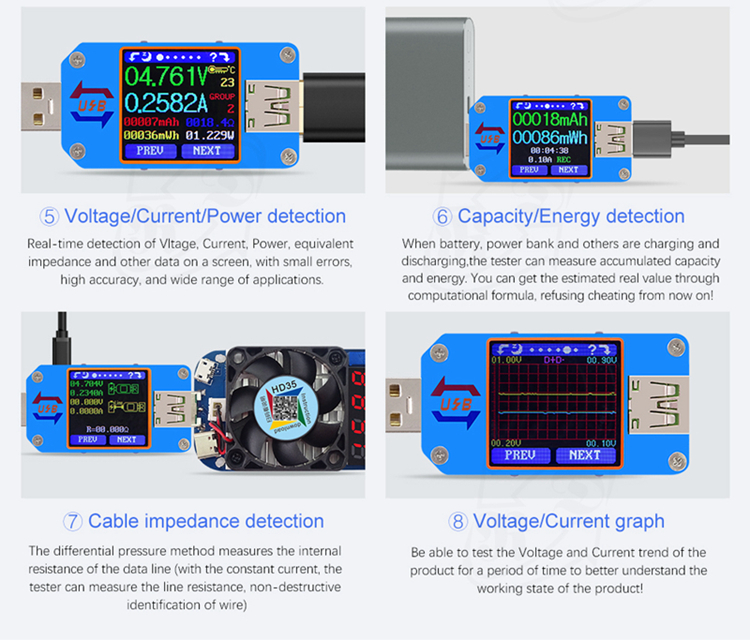

B: cable resistance measurement video: https://www.youtube.com/watch?v=-kNJVNPbGvc&t=30s
C: customer test video: https://www.youtube.com/watch?v=zwrBlG3DWZk
D: APP test for IOS: https://www.youtube.com/watch?v=K_IpRdneCwY&feature=youtu.be



















Introduction of HD35 USB Electronic Load:
https://www.thanksbuyer.com/electronic-usb-load-tester-intelligent-trigger-for-quick-charge-afc-fcp-qc3-0-2-0-hd35-5a-35w-64629?search=64629
