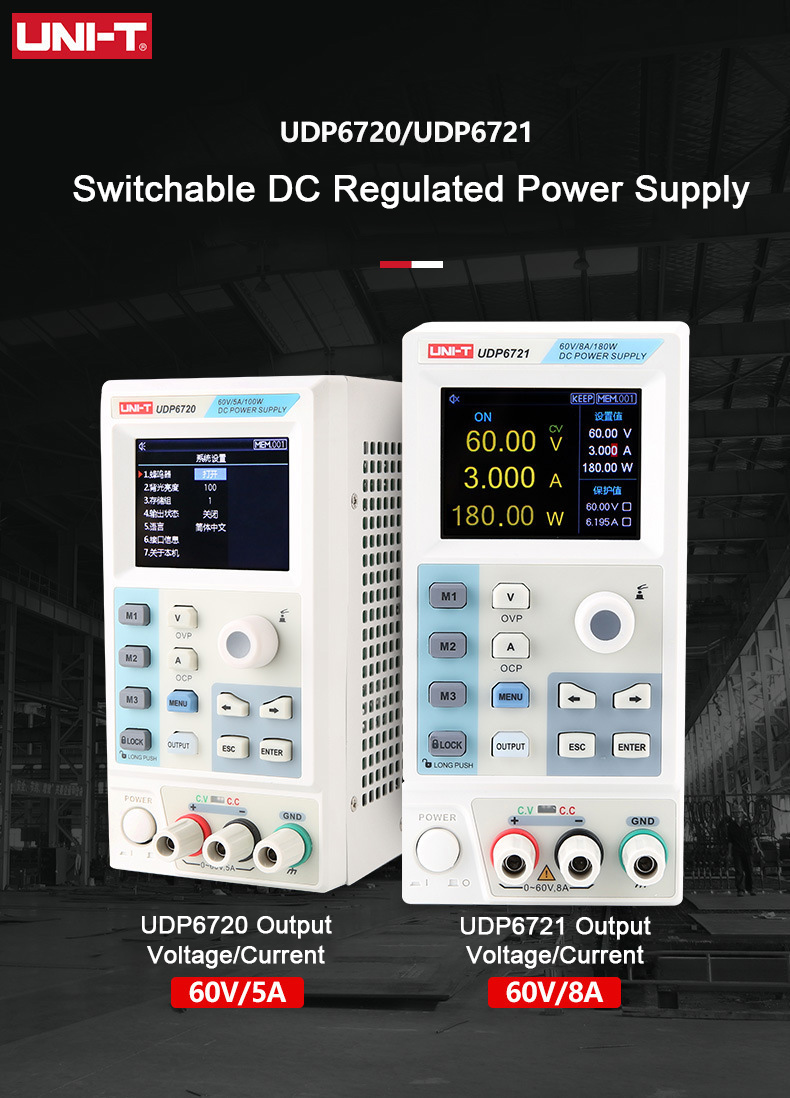

UNI-T UDP6720 60V 5A 100W DC Power Supply Regulated Power Supply with 2.8" LCD Display & RS232 Port
Description:

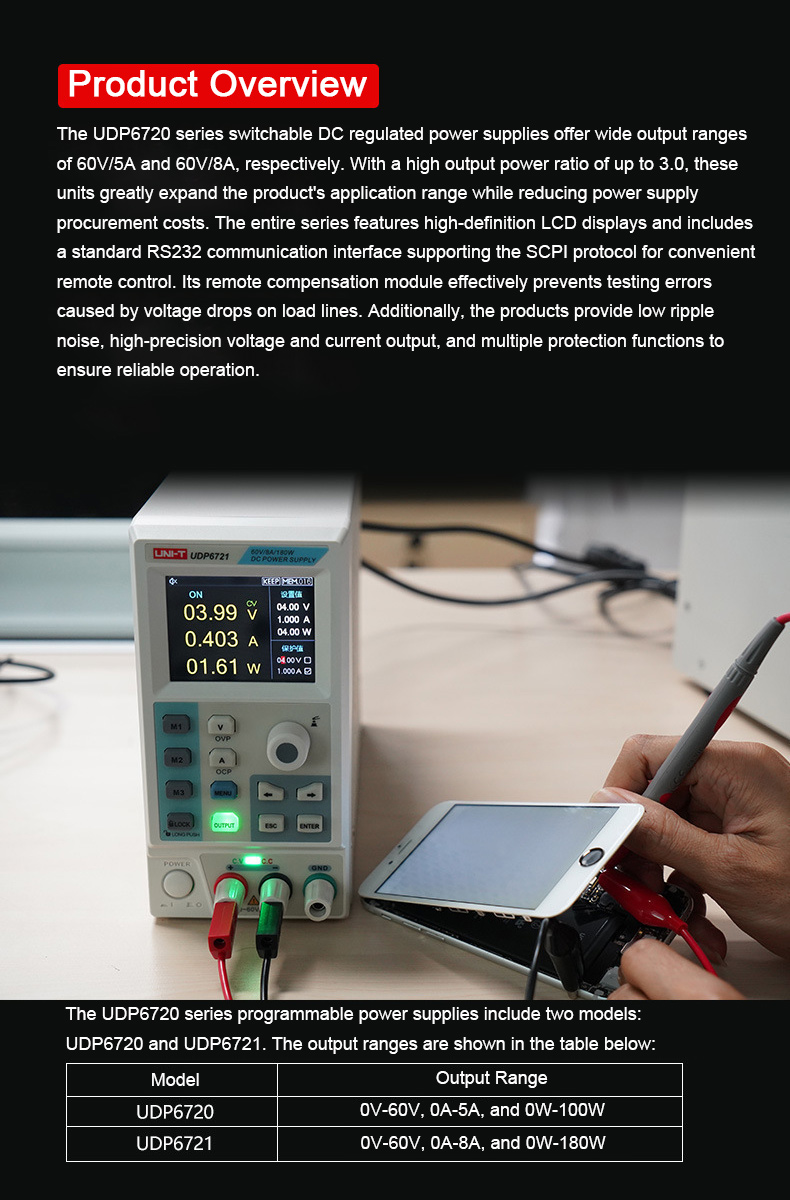

The UDP6720 series switchable DC regulated power supplies offer wide output ranges of 60V/5A and 60V/8A, respectively. With a high output power ratio of up to 3.0, these units greatly expand the product's application range while reducing power supply procurement costs. The entire series features high-definition LCD displays and includes a standard RS232 communication interface supporting the SCPI protocol for convenient remote control. Its remote compensation module effectively prevents testing errors caused by voltage drops on load lines. Additionally, the products provide low ripple noise, high-precision voltage and current output, and multiple protection functions to ensure reliable operation.

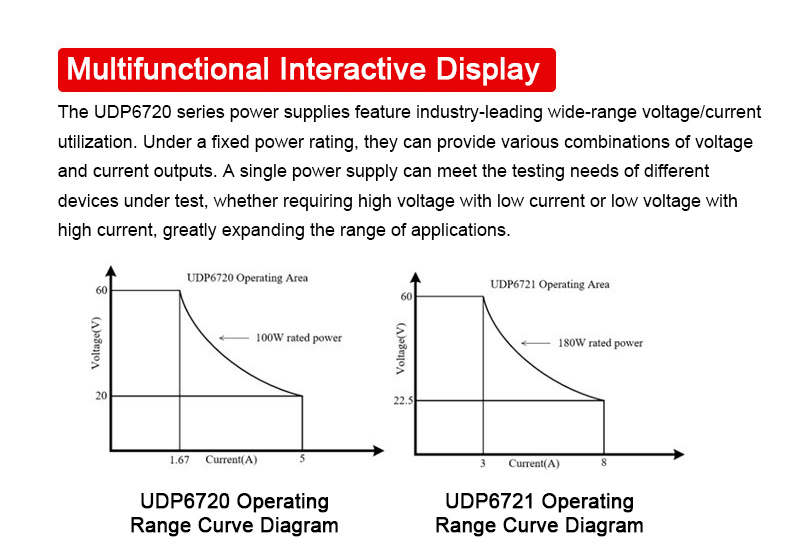

Multifunctional Interactive Display:
* The DP6720 series provides users with a feature-rich, easy-to-operate human–machine interactive interface. It is equipped with a 2.8-inch high-definition display that can show in real time the power supply's current set output voltage/current, actual output voltage/current, and protection output voltage/current values. At the same time, users can conveniently perform system settings. This user-friendly design can meet a variety of application needs in engineers' testing work.
RS232 Communication:
* The UDP6720 series comes standard with an RS232 communication interface and upper-computer software. Using this software, users can easily perform remote control of the power supply system, set output voltage and current, and save data.
Features:
* Fully Digital Control
* Full-scale High Resolution: 10mV/1mA
* Low Ripple and Low Noise
* Software Calibration Function
* Compact Size
* High-definition LCD Display
* Remote Compensation
* Supports RS-232 Communication
* Intelligent Fan Speed Control
* Constant Voltage and Constant Current Output
* High Reliability: Over-voltage/Over-current/Over-temperature Protection Functions
* Switch-controlled Output
* High Quality and Cost-effectiveness
* Multiple Preset Output Voltage/Current Groups: 3 × 200 Groups

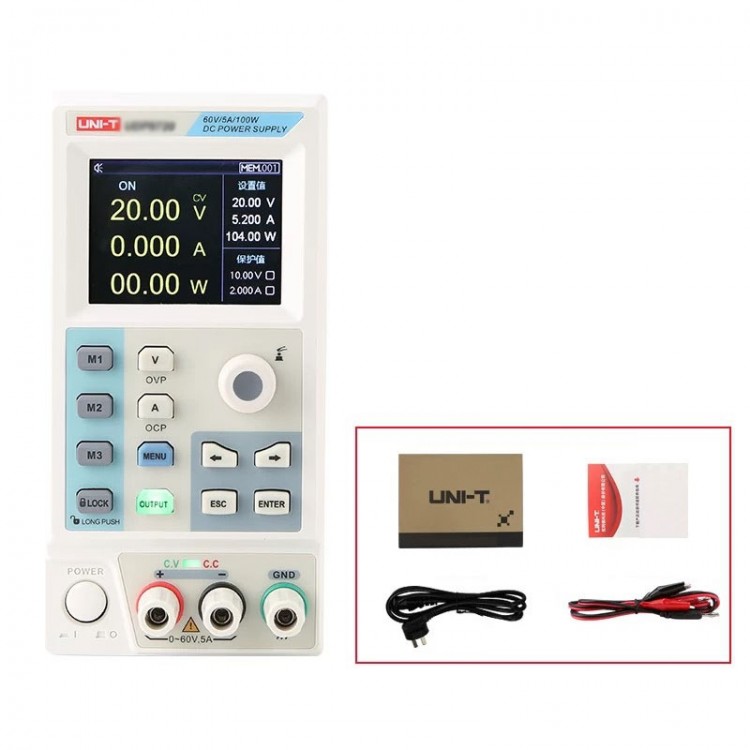

Packing List:
* 1 x DC Power Supply
* 1 x Download Guide
* 1 x Power Cable
* 1 x Pair of Alligator Clip Test Leads
Packaging Details:
* Weight: 5kg
