| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $58.66 | $57.47 | $55.67 | $53.28 | Contact US |
QLeTEK KL500A 100V 500A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter
$59.85
QLeTEK KL300A 100V 300A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter
$49.96
QLeTEK KL150A 100V 150A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter
$43.95

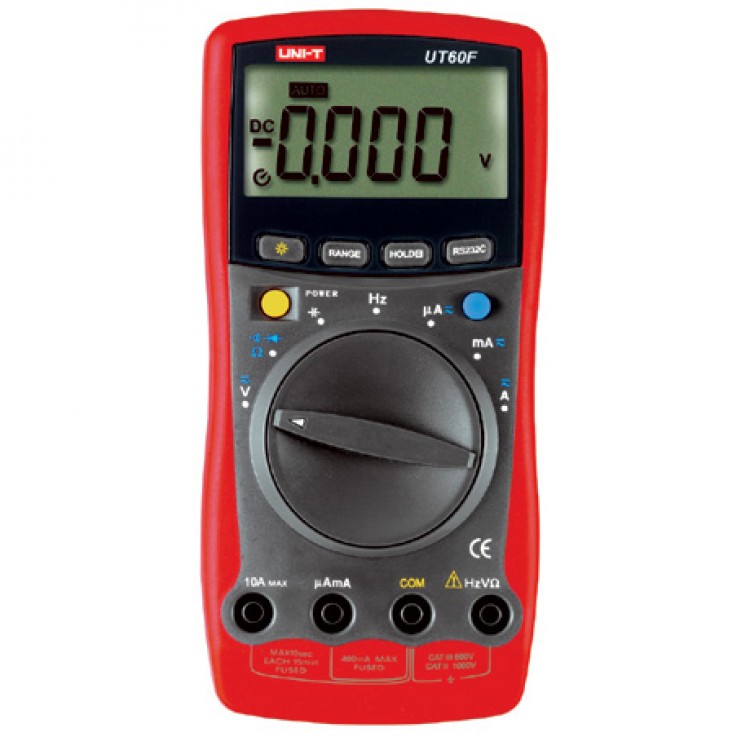

SPECIFICATIONS
| Basic Functions | Range | Best Accuracy | |||
|---|---|---|---|---|---|
| DC Voltage | 400mV/4V/40V/400V/1000V |  (0.5%+3) | |||
| AC Voltage | 400mV/4V/40V/400V/1000V | (1%+2) | |||
| DC Current | 400mA/4000mA/40mA/400mA/10A | (1%+2) | |||
| AC Current | 400mA/4000mA/40mA/400mA/10A | (1.5%+5) | |||
| Resistance | 400W/4kW/40kW/400kW/4MW/40MW | (1%+2) | |||
| Capacitance | 4nF/40nF/400nF/4mF/40mF/400mF/4mF | (4%+3) | |||
| Frequency | 4kHz/40kHz/400kHz/4MHz/40MHz | (0.05%+3) | |||
| Special Functions | |||||
| Fused 10A Range |  | ||||
| Auto Ranging | | ||||
| Diode | | ||||
| Continuity Buzzer | | ||||
| Data Hold | | ||||
| RS232C | | ||||
| Display Backlight | | ||||
| Full Icon Display | | ||||
| Sleep Mode | | ||||
| Low Battery Display | | ||||
| Input Impedance for DC Voltage Measurement | Around 10MW | ||||
| Max. Display | 3999 | ||||
GENERAL CHARACTERISTICS
| Power | 9V Battery (6F22) |
| LCD Size | 63 x 31mm |
| Product Colour | Red and Grey |
| Product Net Weight | Around 312g |
| Product Size | 177 x 73.5 x 35mm |
| Standard Accessories | Test Lead, Battery, English Manual, Test Clip RS232C Interface Cable, Software |
| Optional Accessories* | Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2) |
| Standard Individual Packing | Gift Box |
| Standard Quantity Per Carton | 40 pcs |
| Standard Carton Measurement | 595 x 400 x 326 mm (0.078 CBM Per Standard Carton) |
| Standard Carton Gross Weight | Around 26kg |
