UNI-T UT8805N 5½-digit Desktop Multimeter Digital Multimeter 200000 Counts with 1GB NAND Flash

UNI-T UT8805N 5½-digit Desktop Multimeter Digital Multimeter 200000 Counts with 1GB NAND Flash

Description:
The UT8805N 5½-digit dual-display digital multimeter features outstanding reading speed and accuracy. It is designed to meet customer requirements for multi-functionality, high precision, and automatic measurement.

Basic Measurement Functions:

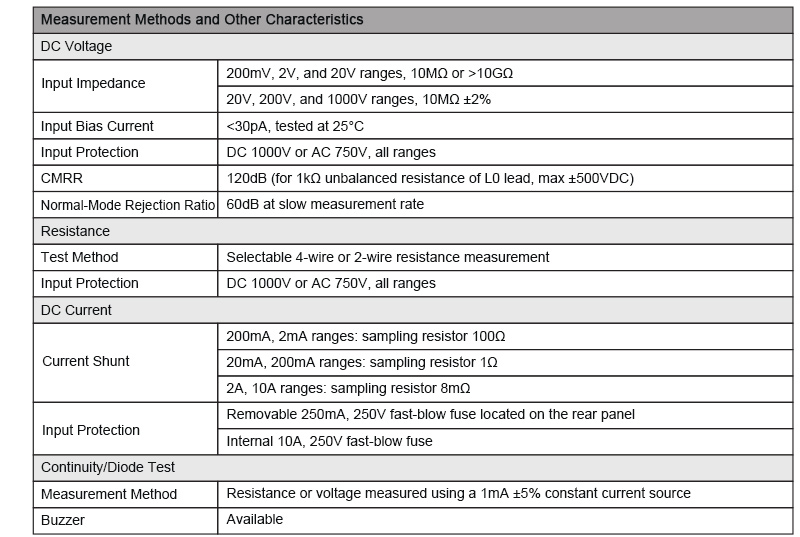

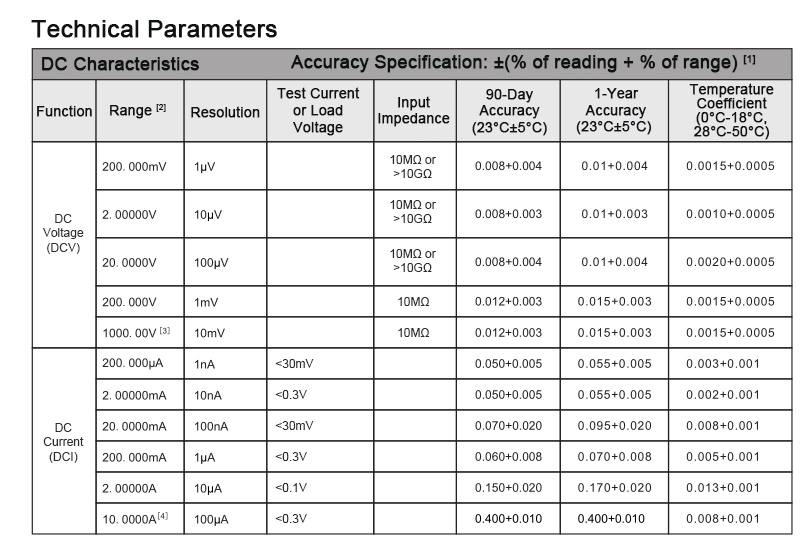

* DC Voltage Measurement: 200mV, 2V, 20V, 200V, 1000V
* DC Current Measurement: 200µA, 2mA, 20mA, 200mA, 2A, 10A
* AC Voltage Measurement: RMS 200mV, 2V, 20V, 200V, 750V

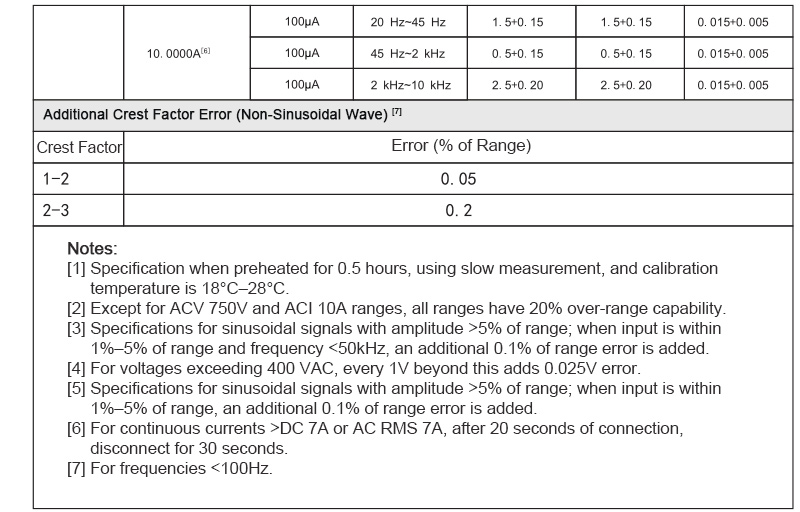

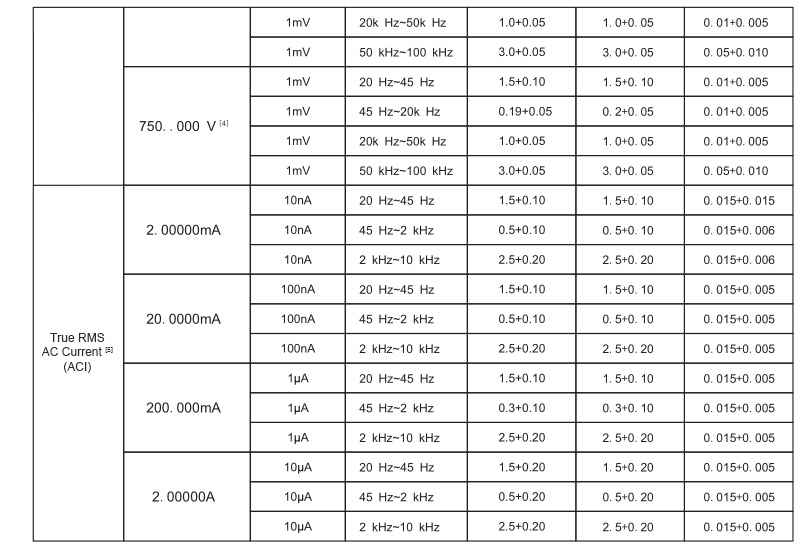

* AC Current Measurement: RMS 2mA, 20mA, 200mA, 2A, 10A
* Resistance Measurement (2-wire and 4-wire): 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 10MΩ, 100MΩ

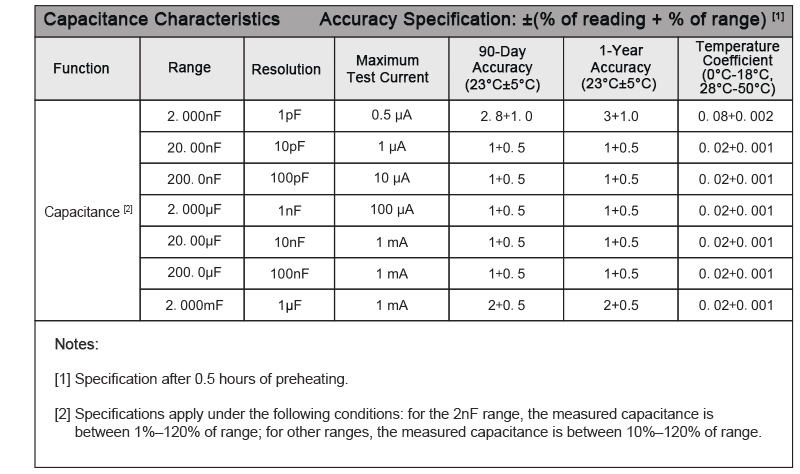

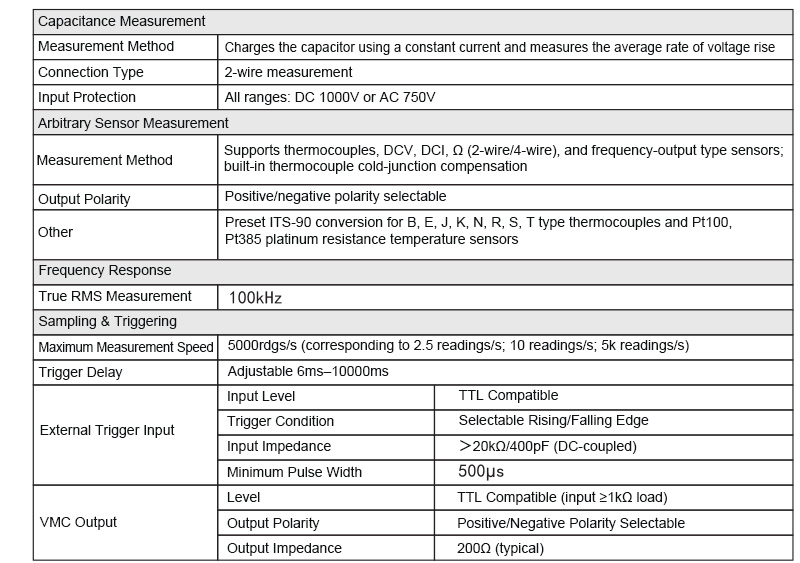

* Capacitance Measurement: 2nF, 20nF, 200nF, 2µF, 20µF, 200µF, 2mF
* Continuity Test: Fixed 2kΩ
* Diode Test: 0 V to 2V

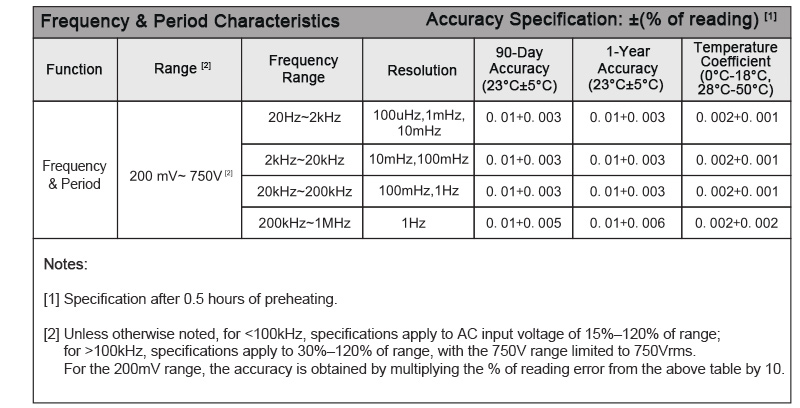

* Frequency Test: 20Hz to 1MHz
* Period Measurement: 1µs to 0.05s

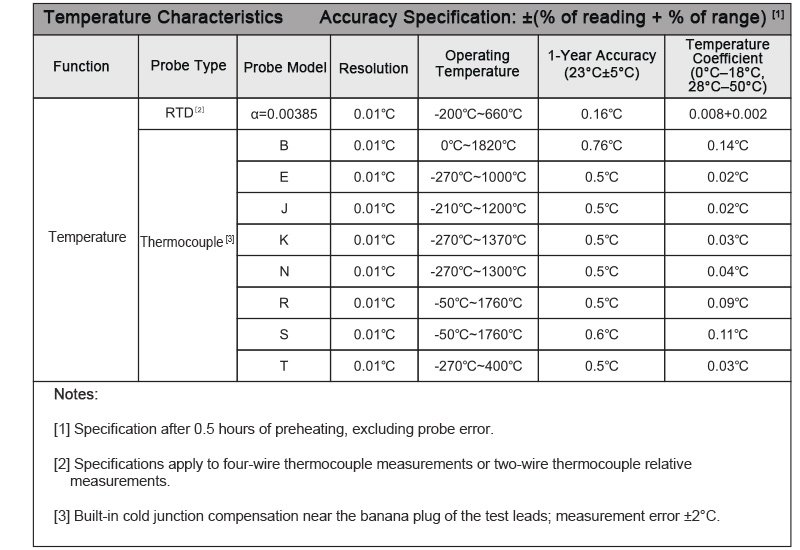

* Temperature Measurement: Supports thermocouple and RTD sensors

Mathematical Functions:
* Maximum, Minimum, Average, Standard Deviation, Relative Measurement, Bar Graph, Histogram, Trend Chart, dB/dBm, Pass/Fail, etc.

User-Friendly Design:
* Graphical user interface for easy operation; built-in help system for easy information access; supports Chinese/English menus; dual-window display function; supports USB drive and local storage for convenient file management.

Features:
* 4.3" TFT-LCD with 480×272 display resolution
* 5½-digit readings
* Measurement speed up to 5,000rdgs/s
* 100kHz frequency response
* 0.01% annual DC voltage accuracy

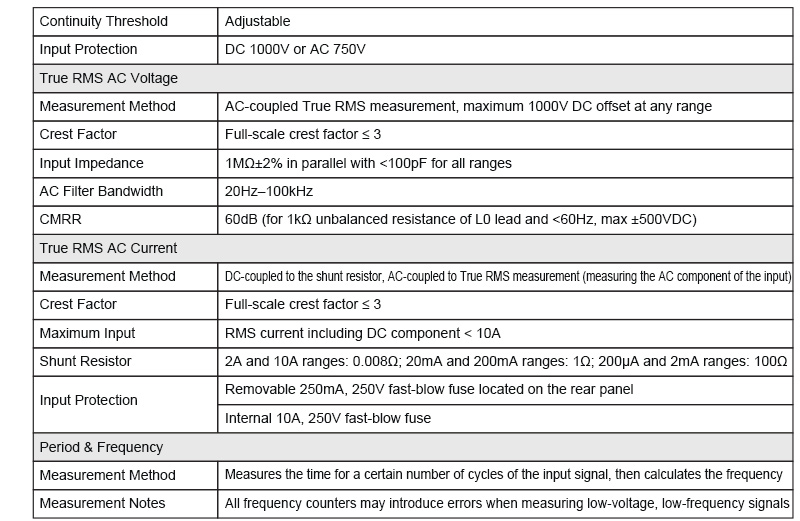

* True RMS AC voltage and current measurement

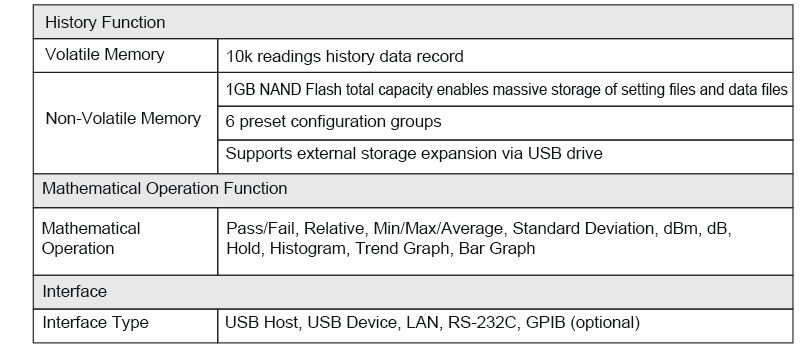

* 1GB NAND Flash total capacity, enabling massive storage of instrument setting files and data files
* Built-in thermocouple cold junction compensation
* Supports standard SCPI remote control commands, PC software, and is compatible with the latest mainstream multimeter command sets
* Supports dual display, Chinese/English menus, and a built-in help system for easy information access
* Interface configuration: USB Device, USB Host, LAN, RS-232C, GPIB (optional)
* Settings and measurement data can be imported or exported via VXI-11, USBTMC, or USB drive for easy modification, viewing, and backup

Application Areas:
* Scientific Research and Education
* Research and Development
* Inspection and Maintenance
* Calibration
* Automated Testing

Packing List:
* 1 x Set of Multimeter

Packaging Details:
* Weight: 5kg

General Characteristics:
* Power Supply:
   ** AC 90V–110V, 45–440Hz
   ** AC 110V–132V, 45–440Hz
   ** AC 200V–240V, 45–66Hz
   ** AC 216V–264V, 45–66Hz
* Power Consumption: Max 20W

Mechanical Characteristics:
* Dimensions (W×H×D): 260mm × 116mm × 332mm
* Weight: 4.4kg

Other Characteristics:
* Full Accuracy Operating Environment: 0℃–28℃ <90% RH; 28℃–40℃ <75% RH; 40℃–55℃ <50% RH (non-condensing)
* Storage Environment: -20℃ to 70℃, <95% RH; after high-humidity storage, operate continuously for at least 7 days before use
* Altitude: ≤ 2000m
* Shock and Vibration: MIL-T-28800E, Class 111, Grade 5 (sine wave only)
* Electromagnetic Compatibility: Complies with Low Voltage Directive (2004/108/EC), Standard EN61326-1:2013
* Safety: Complies with Low Voltage Directive (2006/95/EC), Standard EN61010-1:2010 (to be confirmed)
* Remote Interfaces: 10/100 Mbit LAN, USB Device, USB Host, RS-232C
* Programming Language: Standard SCPI, compatible with the latest mainstream multimeter command sets
* Warm-up Time: 30 minutes
