UNI-T UTD2102CEX 100MHz 1GS/s Digital Storage Oscilloscope 2-Channel Automotive Oscilloscope
Description:

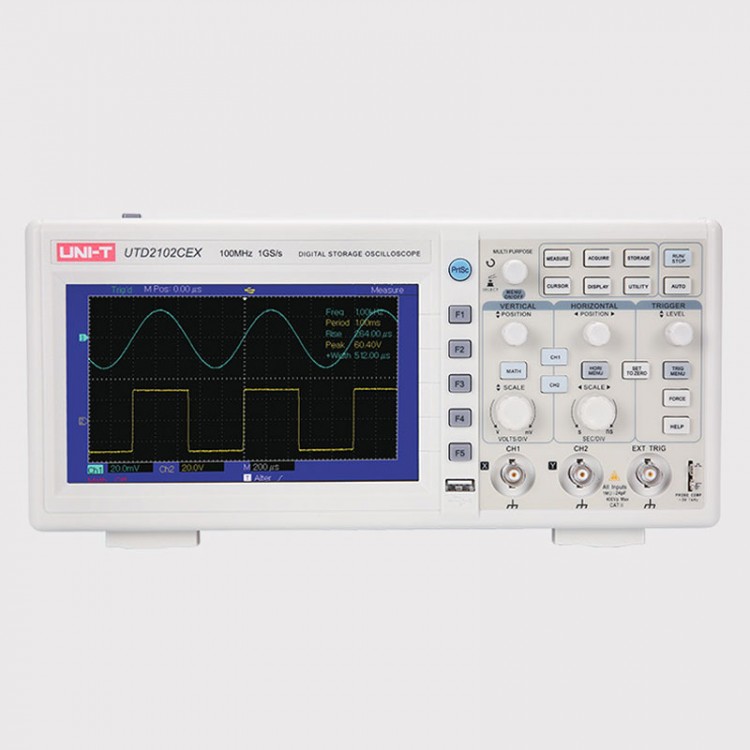

UTD2102CEX is an economical desktop digital storage oscilloscope designed to meet the key requirements of basic measurements. The simple and clear front panel design makes it more convenient for users to operate.
The digital oscilloscope also offers high-performance specifications and powerful functions necessary for completing measurement tasks more quickly. With high-speed real-time sampling and equivalent sampling, faster signals can be observed on the oscilloscope. Its powerful triggering and analysis capabilities make it easy to acquire and analyze waveforms. The clear LCD display and built-in mathematical operations allow users to observe and analyze signal issues faster and more clearly.

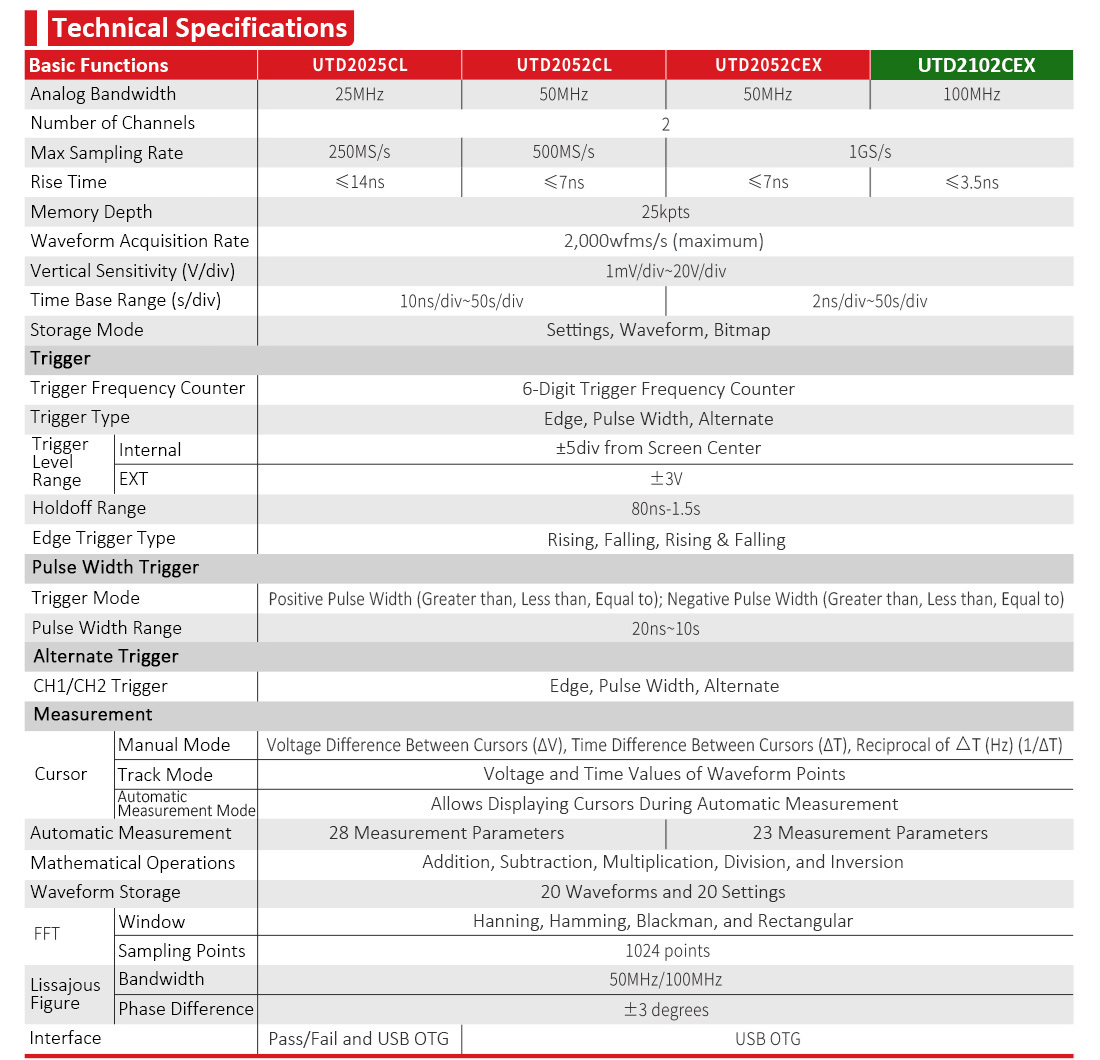

Features:
* Two-Channel Oscilloscope
* 100MHz Bandwidth
* 2 Analog Channels, Low Noise Floor, Wide Vertical Range from 1mV/div to 20V/div
* 1GSa/s (per channel) maximum real-time sampling rate
* 25kpts Memory Depth
* Waveform Acquisition Rate up to 2,000wfms/s
* System Software Upgrade via USB Flash Drive
* 7-Inch TFT LCD
* Supports Plug-and-Play USB Storage Devices, and USB Communication with Computer for Remote Control
Packing List:
* 1 x UTD2102CEX Main Unit
* 1 x Certificate of Conformity
* 1 x USB Data Cable
* 2 x Probes (1×/10× Switchable)
* 1 x Power Cable
Packaging Details:
* Weight: 5kg
