Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $117.41 | $115.02 | $111.42 | $106.63 | Contact US |

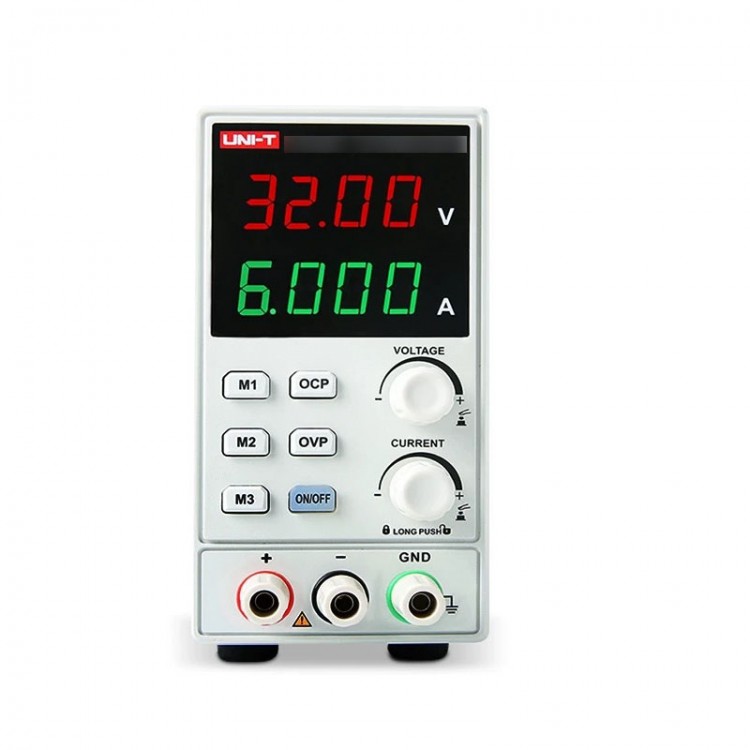

UNI-T UTP1306S 192W 32V 6A 4-Digit DC Power Supply Regulated Power Supply for Mobile Phone Repair
Description:
UTP1306S Power Supply is an economic switch-mode DC regulated power supply with a single output. It features a clean output and excellent performance specifications, capable of meeting diverse testing requirements.
Features:
* 32V/6A
* Voltage/Current Display Resolution: 10mV/1mA
* One-Channel Output
* 4-Digit Voltage and Current Display
* Over-Voltage/Over-Current/Over-Temperature Protection
* 3 Sets of Data Can Be Stored and Recalled
* Adjustable Over-Current/Over-Voltage Protection Values
* Independent Output Switch
* Lockable Operation Buttons
Specifications:
* Rated Output Voltage: 0–32V
* Rated Output Current: 0–6A
* Output Power: 192W
* Load Regulation:
** Voltage: <0.1% + 5mV
** Current: <0.2% + 3mA
* Power Supply Regulation:
** Voltage: <0.01% + 5mV
** Current: <0.2% + 3mA
* Setting Resolution:
** Voltage: 10mV
** Current: 1mA
* Readback Resolution:
** Voltage: 10mV
** Current: 1mA
* Setting Accuracy (25°C±5°C):
** Voltage: ≤0.1% + 1 digit
** Current: <0.2% + 3mA
* Ripple & Noise (20Hz–20MHz):
** Voltage: ≤10mVrms
** Current: ≤5mArms
* Temperature Coefficient:
** Voltage: ≤300ppm/°C
** Current: ≤300ppm/°C
* Display: LED Digital Tube
* Power Supply Voltage: AC 220V ±10%
* Frequency: 50Hz/60Hz
* Dimensions (W × H × D): 80mm × 150mm × 230mm
* Weight: 2kg
Packing List:
* 1 x DC Power Supply
* 1 x Power Cable
* 1 x User Manual
Packaging Details:
* Weight: 2.5kg
