Upgraded NanoVNA Plus 50kHz-2.7GHz Portable Handheld Vector Network Analyzer 2.8-inch Touch Screen VNA with 32GB SD Card
Description:

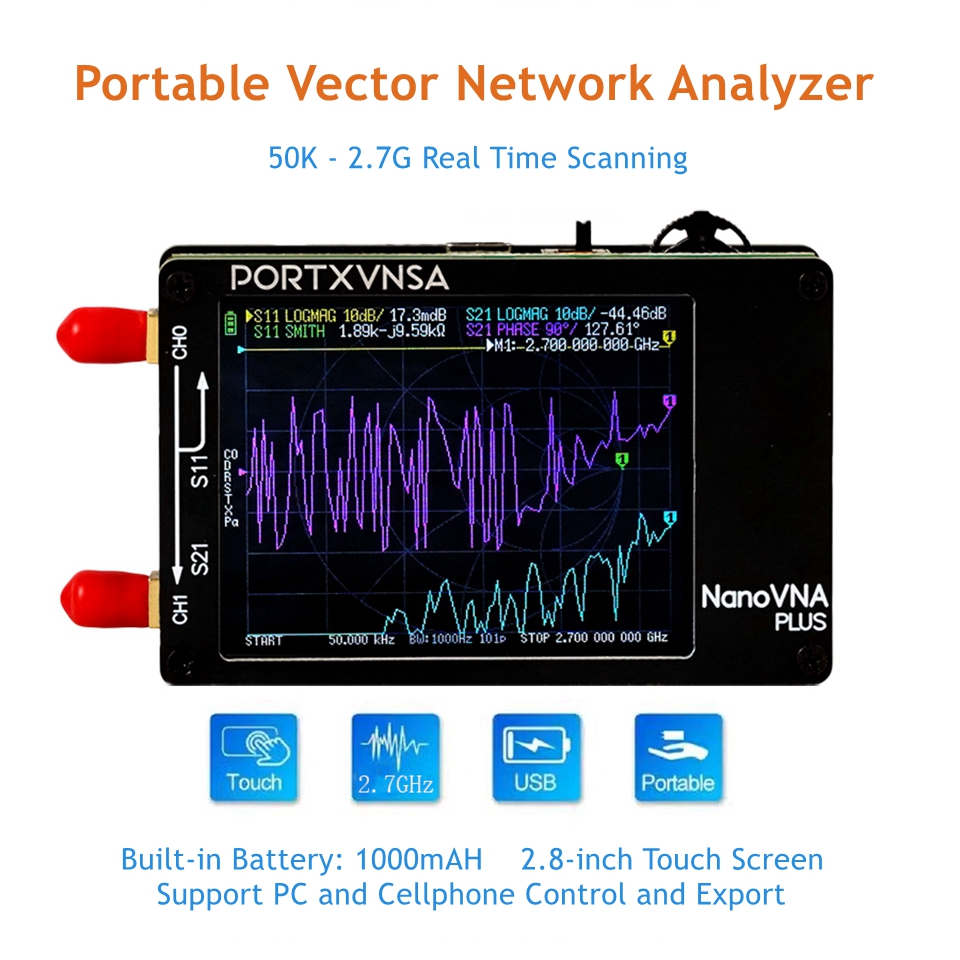

- NanoVNA Plus, It is a portable handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients. After multiple upgrades, NanoVNA Plus is currently the highest performing version, with a measurement frequency range upgraded to 50KHz-2.7GHz and better performance than the previous 1.5GHz old version.

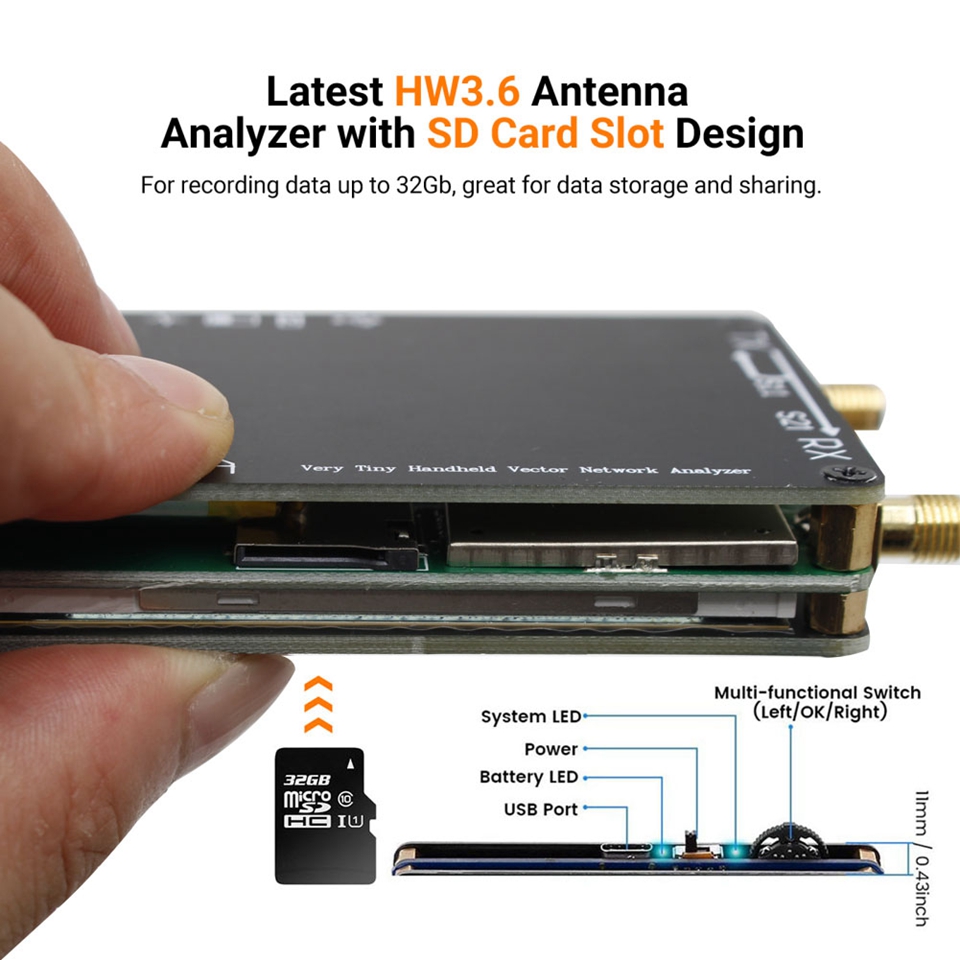

- Micro SD supports a maximum of 32GB and only supports SPI mode.
- Add RTC support.
- Change the port names to Port1 and Port2.
- Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart.
Specification:

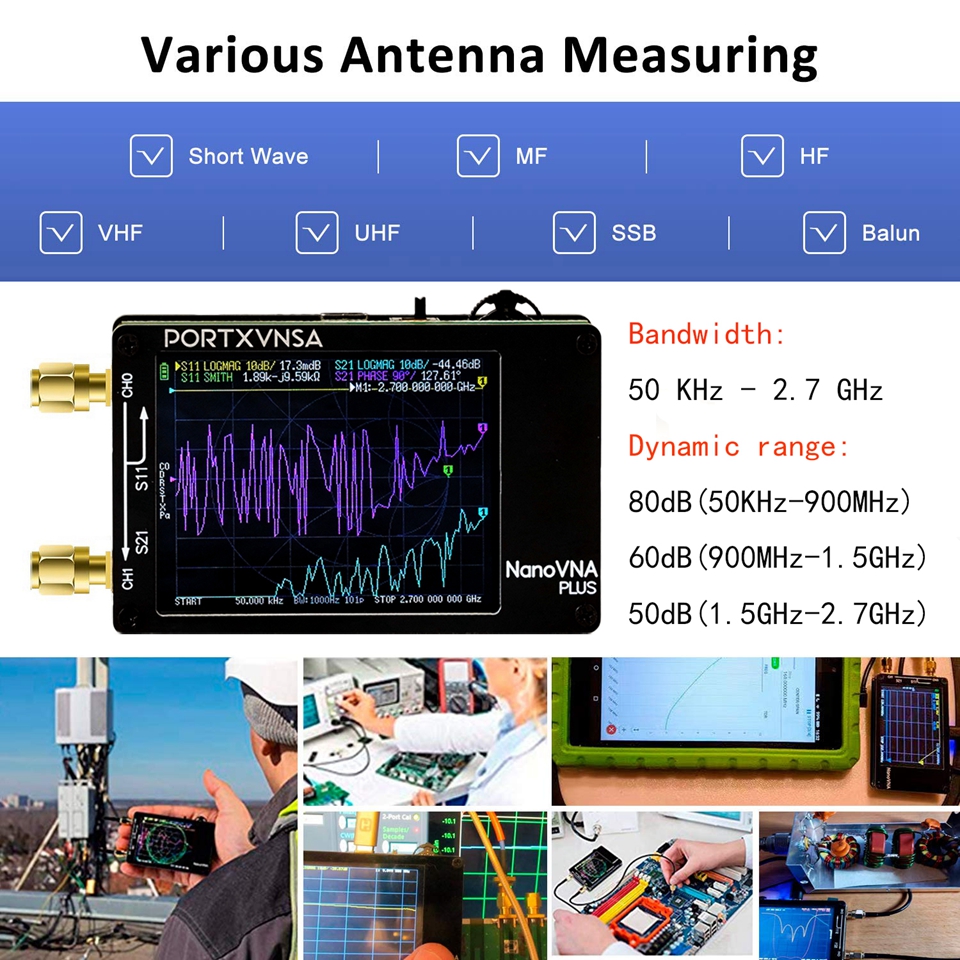

- Bandwidth: 50kHz - 2.7GHz
- Dynamic range: 80dB (50kHz - 900MHz); 60dB (900MHz - 1.5GHz); 50dB (1.5GHz - 2.7GHz)
- SWR: < 1.1
- Frequency precision: < 0.5ppm
- Frequency stability: < 2.5ppm
- Scanning points: 101

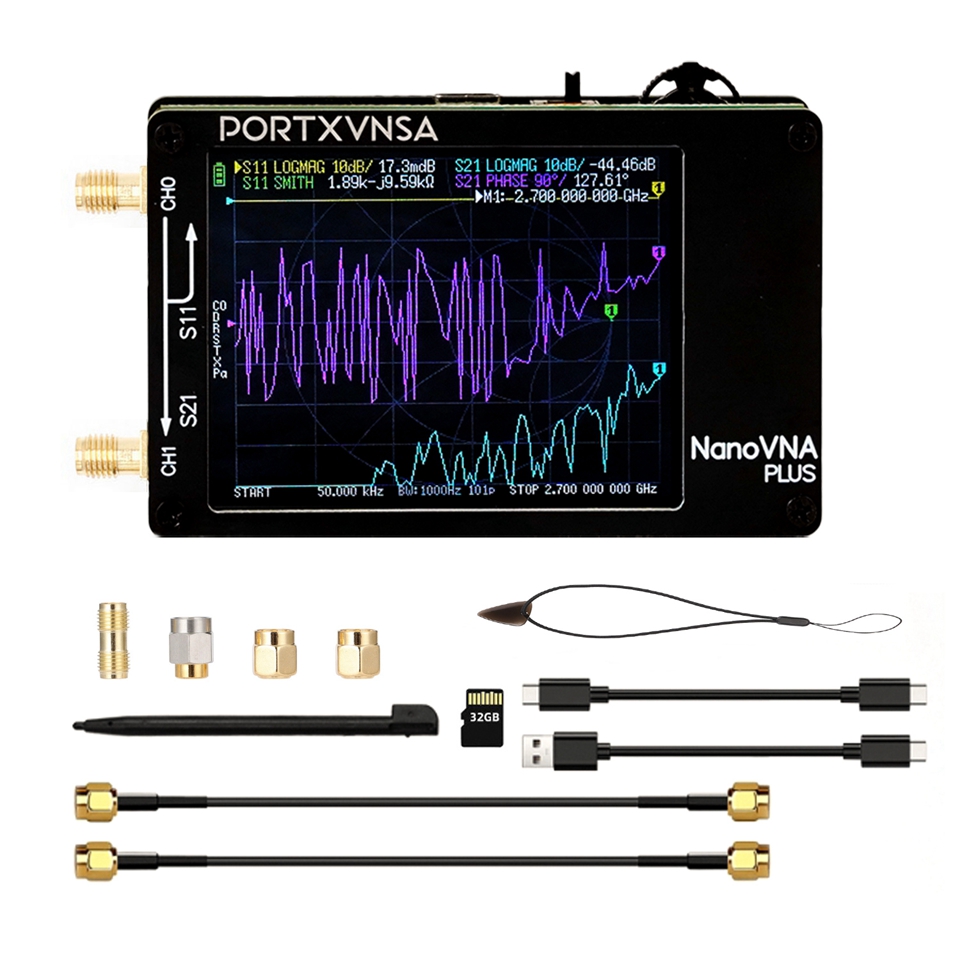

Package Included:
- 1 x Host
- 2 x 20cm SMA Male to Male RG174 RF Cables
- 1 x Type-C to Type-C Connection Cable
- 1 x USB Type-C Data Cable
- 1 x Touch Pen
- 1 x Pick
- 1 x SMA LOAD
- 1 x SMA OPEN
- 1 x SMA SHORT
- 1 x SMA Female to Female Connector
- 1 x 32GB Micro SD Card
