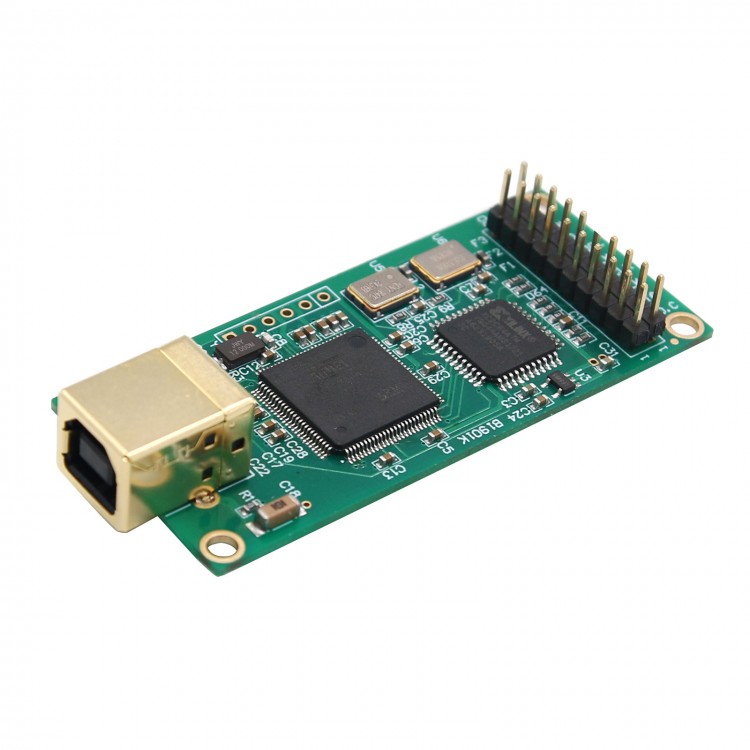

USB Digital Interface USB Audio Interface For Amanero USB Audio Class 2 I2S Input DAC Board PCM DSD
Features:
- USB Audio Interface: Support for USB Audio Class 2
- Compatible Sampling Rate: 44.1 to 384KHz
- 32Bit I2S or DSD output: DSD output supports DSD64 (2.82MHz) and DSD128 (5.64MHz)
- For Windows operating systems, it supports for ASIO driver for DSD256 (11.29MHz) and DSD512 (22.58MHz)
Specifications:
Supported OS:
- For Windows Vista, 7, 8.1, 10
- For Mac OS X above 10.6
- For Linux
Power Supply Sampling Rate:
- PCM: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384kHz
- DSD: 2.82 (64), 3.07, 5.64 (128), 6.14MHz
- DSD 11.29 (256), 22.58MHz (512) (only for ASIO driver Windows operating system)
Output Formats:
- 32 Bit I2S or DSD
Power Supply:
- USB bus power
Dimensions:
- 30 x 68.5mm
Link for driver http://amanero.com/drivers.htm
Link for driver https://pan.baidu.com/s/15qcQu958uv7cHyItbvAehQ Password: gf9j
Note: The driver is the same as the official version. Please not upgrade the firmware of the module without authorization. After clearing the firmware, it is impossible to refresh the firmware through the official Tools. Thank you for your understanding.
Package Included:
- 1 x USB Digital Interface
