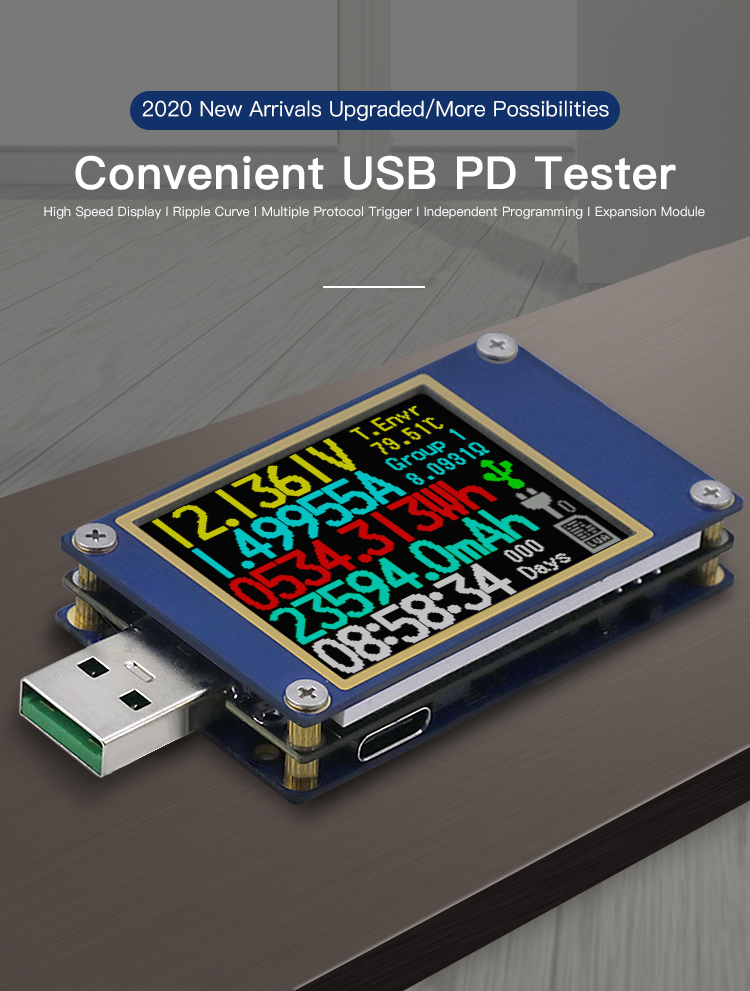

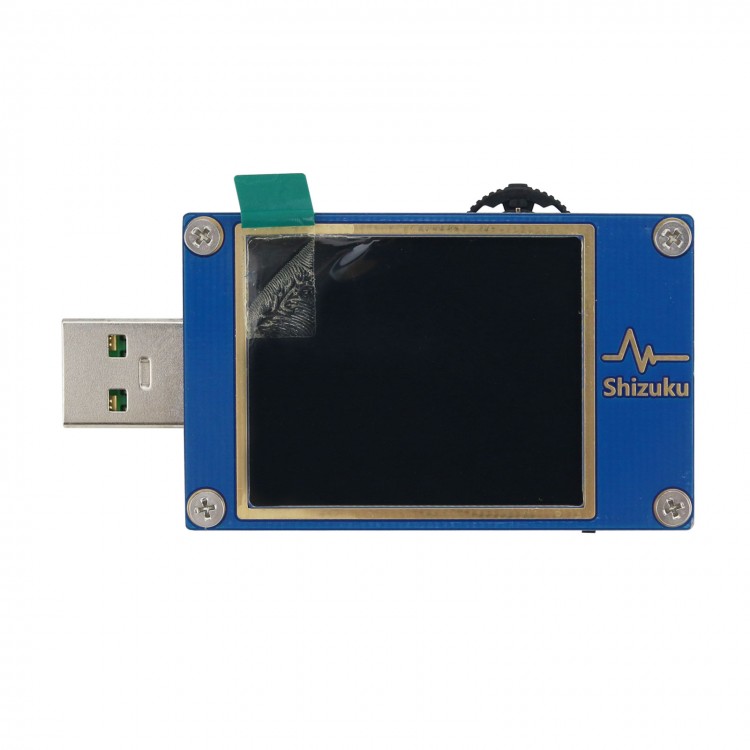

USB Tester Meter PD Tester Voltage Ammeter Quick Charge Data Cable Charging Head Programmable YK001

USB Tester Meter PD Tester Voltage Ammeter Quick Charge Data Cable Charging Head Programmable YK001

Improvement:
1. Support module expansion
2. Provide lua API, user self-programming, convenient for batch testing, directly control the meter hardware. Factory users can design fully automated tests by themselves, which is better for use with modules. Ordinary users can write their own functions, which is super playable.
3. The completely rewritten host computer is far more powerful than the previous generation host computer. Can open more, high-speed recording, super long ripple capture, lua program download and debug, PD monitoring, deception control, software firmware automatic update, more beautiful interface.
4. The male and female heads of port C and A have 3.0 full needles and are shipped after all measurements. USB3.0 test is available.
5. Internal 12MB user storage space, store user programs (user programs can also write files to this space), offline recording.
6. The VBUS ripple can be viewed through the 3.2Msps ADC.
7. Larger screen (1.8'' 128 * 160).
8. Buzzer and automatic screen rotation.

Detailed Introduction: https://yk-lab.org:666/index.php/zh/shizuku/

Host Computer Location: https://yk-lab.org:666/index.php/zh/shizuku-pc%e7%ab%af%e8%bd%af%e4%bb%b6/

Manual: https://yk-lab.org:666/shizuku/manual/board/manual-zh-cn/content.html

Host Computer Manual: https://yk-lab.org:666/shizuku/manual/software/manual-pc-zh-cn/content.html

Lua Secondary Development Overview: https://yk-lab.org:666/index.php/zh/lua%e4%ba%8c%e6%ac%a1%e5%bc%80%e5%8f%91%e6%a6%82%e8%a7%88/

Lua API Documentation: https://yk-lab.org:666/shizuku/lua-api/lua-api-zh-cn/index.html

Package Included:
- 1 x Set of USB Tester

Note: Please note that objects pictured are slightly different from the actual items, but the ports and functions are the same.

Complete, detailed and easy to understand documentation with demo code to help you complete secondary development quickly

Core Components From Brand Suppliers:
MCU: For Cortex-M4 100MHz
Thumbwheel Button: Long life span
Expansion Module Interface
USB-A Male Female Connectors: Large current USB 3.0
Gravity Sensor
DC-DC
User Memory: 12MBytes
Inductor
Sampling Resistor
PD PHY
Current Voltage ADC: 16Bit Bidirectional current
