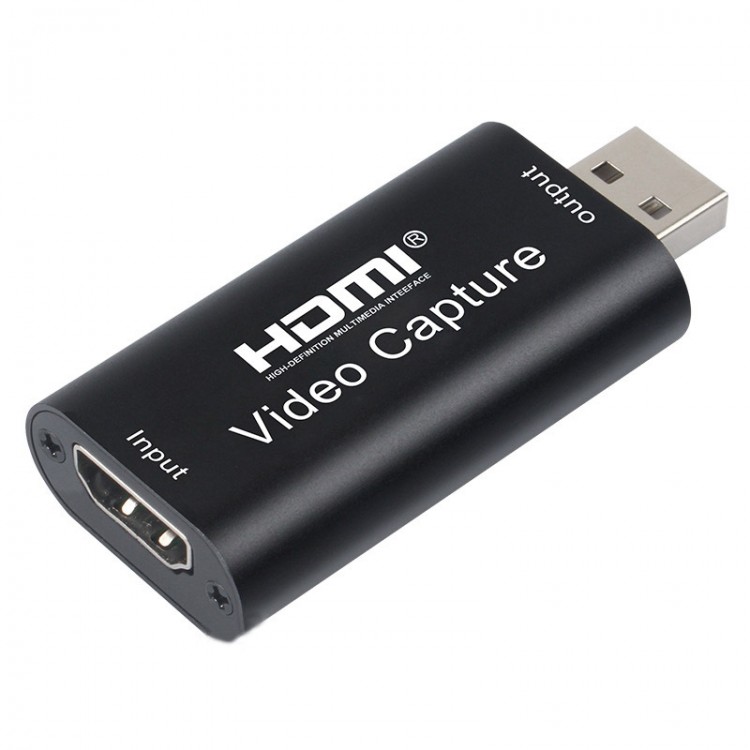

USB2.0 to HDMI Audio Video Acquisition Card for PS4/Xbox/Switch OBS Game Live Broadcast Recording
The video acquisition card can capture both HDMI video and HDMI audio, sending audio and
video signals to computers and smart phones for preview and storage. It is suitable for high definition acquisition, teaching recording, medical imaging, etc.
HDMI resolution: max input can be 3840 x 2160@30Hz
Support video format: 8/10/12bit Deep color
Video output format: YUV, JPEG
Video output resolution: max output can be 1920 x 1080@30Hz
Support audio format: L-PCM
Input cable distance: ≤15m, AWG26 HDMI standard cable
Max working current: 0.4A/5VDC
Operating temperature range: -10 to +55℃
Dimension (L x W x H): 64 x 28 x 13 (mm)
-Support input max resolution 3840 x 2160@30Hz
-Support output max resolution 1920 x 1080@30Hz
-Support 8/10/12bit deep color
-Support AWG26 HDMI standard cable: input up to 15 meters
(1080P and below resolution)
-Support most acquisition software, such as VLC, OBS, Amcap, etc.
-Support Windows, Android and MacOS
-Conform to USB video and UVC standard
-Conform to USB audio and UAC standard
-Without external power supply, compact and portable
Connection and Operation:
1: Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
2: Connect the computer to the USB port of the video capture with USB cable.
3: Operation steps for USB video acquisition (OBS): Open the software→Choose sources of “Video Acquisition Device”→Set the size of image→Choose “Studio Mode” (double window)→Choose “Start Recording”.
-1 x Video Acquisition Card
-1 x User Manual
Computer hardware configuration requirements:
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Run memory: 4G RAM
