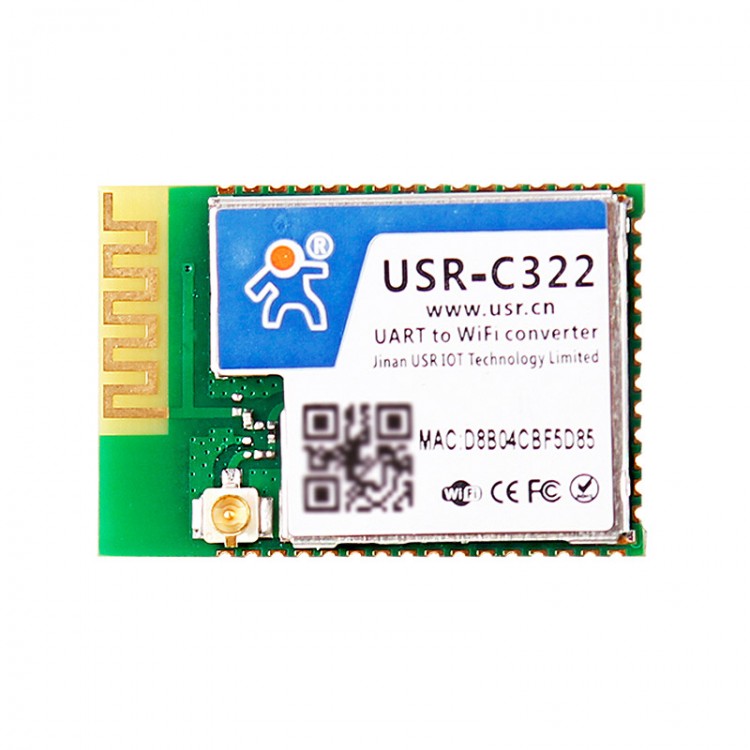

USR-C322 Serial Port to WIFI Module Industrial Grade TICC3200 Wireless Transmission External Antenna

USR-C322 Serial Port to WIFI Module Industrial Grade TICC3200 Wireless Transmission External Antenna

Wireless Parameters:
Wireless standard: 802.11 b/g/n
Transmit power: 17.0 dBm @ 1 DSSS; 17.25 dBm @ 11 CCK; 13.5 dBm @ 54 OFDM
Receiving sensitivity: -94.7 dBm @ 1 DSSS; -87.0 dBm @ 11CCK; -73.0 dBm @ 54 OFDM
Antenna: external: I-PEX connector

Hardware Parameters:
Data interface: UART
Working voltage: 3.0V~3.6V
Working current (under 3.3V):
-continuous transmission (sta): ~75mA
-normal mode (sta): average: ~18mA, peak value: 247mA
-low on the network (sta, low power consumption mode 3): 3.5mA
-standby (sta, low power consumption mode 4): low, 25μA
Working temperature: -40℃～125℃
Storage temperature: -40℃～125℃
Working humidity: 5%～95% RH (no condensation)
Storage humidity: 5%～95% RH (no condensation)
Size: 26.6*18.2*2.8mm
Package interface: SMT surface mount

Software Parameters:
Wireless network type: AP, STA
Security mechanism: WEP/WPA-PSK/WPA2-PSK
Encryption type: TKIP, AES, TKIP/AES
Network protocol: TCP/UDP/HTTP

Software Function:
DHCP/Static IP: support DHCP dynamically obtain IP and static IP function
DNS domain name resolution: support DNS domain name resolution function
Support Webserver: support Webserver web page setting parameters
Socket transparent transmission: support TCP Server, TCP Client, UDPServer, UDP Client
HTTPD Client: support Httpd protocol transmission
Websocket: support Websocket transparent transmission
Similar to RFC2217: support RFC2217 dynamic baud rate setting
Registration package mechanism: support ID, MAC, custom, transparent cloud transmission
Multiple configuration methods: AT+ command set, web configuration

Features:
1. TI's CC3200 Solution: TI's brand, supply and quality are guaranteed, based on ARM Cortex-M4 core, operating frequency up to 80MHz.
2. Ultra-low Power Consumption: Lower power consumption than wifi low-power series, as low as 3.5mA in network standby, and as low as 25uA in deep sleep.
3. Ultra-small Size: Only the size of a thumb, 18.22*26.65*2.8(mm).
4. High-speed UART: Baud rate support up to 3M bps (special firmware upgrade required).
5. Simplelink: One-click to connect to Wi-Fi network.
6. Dual Serial Ports: Support 2 serial ports.
7. Three Links: Support 3 TCP links.
8. Data Security: Support 2 encryption methods: data PC1 encrypted transparent transmission, SSL Client encrypted submission.
9. More Functions: Support custom web pages, websocket, httpd client.
10. Send large data packets without losing bytes

Functions:
1. High-speed Baud Rate: The serial port supports up to 3Mbps baud rate, which is faster in large data transmission applications such as WIFI printers, WIFI serial cameras, WIFI high-speed data collection, etc.!
2. One-key WIFI Link: Support two mobile phone fast networking methods "SimpleLink" and "UsrLink" to solve the problem of complex networking operations in smart home applications!
3. Registration Package Function: Realize that the registration data package is sent immediately after TCP completes the connection, which is convenient for the server to identify and process. The registration data package supports two kinds of custom ID and MAC.
4. Synchronous Baud Rate Function: Support the use of the human virtual serial port software (USR-VCOM), the baud rate and parameters of the virtual serial port are changed, and the serial port parameters of the module are changed synchronously.

Package List:
1 x USR-C322 Module
