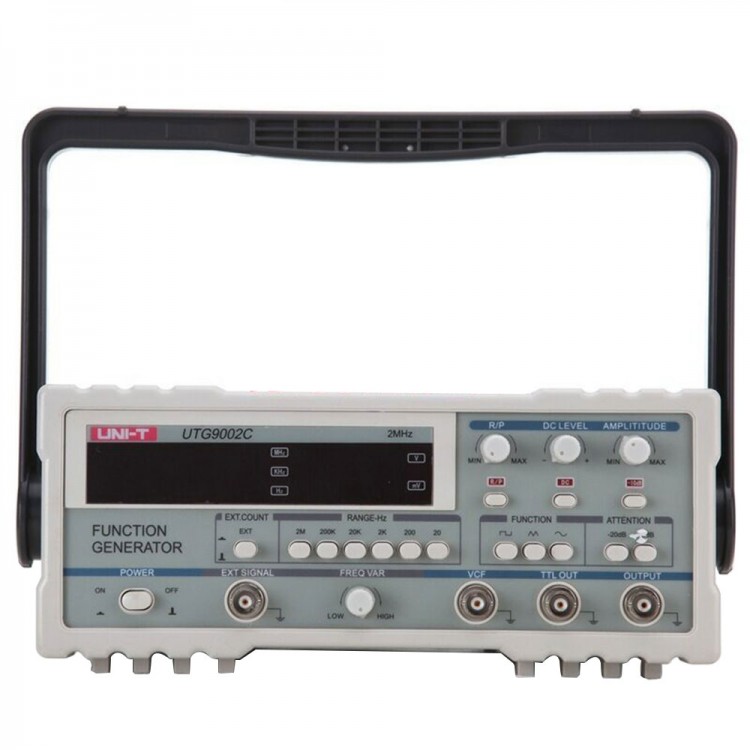

UTG9002C Function Generator 0.2Hz-2MHZ Signal Generator for Sine Square Triangle Pulse Sawtooth Wave
Description:
UT9000C series function generator can produce sine, square, triangle, pulse, sawtooth waveform, a wide frequency range up to 5MHz, having a DC level adjustment, adjust the duty cycle, VCF function with TTL level output, the output signals can be displayed simultaneously, the amplitude and frequency can be used as a frequency counter external frequency measurement, the series has excellent amplitude-frequency characteristics, square wave rising ≤50nS, all electrical performance indicators have reached the level of similar foreign products. Compact and beautiful.
Specification:
- Model: UTG9002C
- Waveforms : Sine, Square, Triangle,Pulse,sawtooth wave
Amplitude
- Range (no load): from 1mVpp to 20Vpp
- Accuracy: +/- 5%
- Resolution: 0.1mV
Frequency:
- Range: from 0.2Hz to 2MHz
- Accuracy : ± 1%
- Resolution: 1mHz
- Output Power: 2Wp-p
- Output Impendance: 50Ω
- Attenuator : 20dB + 40dB
- DC Offset: from -10V to + 10V
- Display Frequency: 4-digits-LED, Amplitude: 3-digits-LED
- Duty Cycle: from 10% to 90%
- Distortion of Sine: ≤ 2% (at 1kHz)
- Rise Time of Square: ≤ 50ns
- VCF: ≥ 100 : 1
- Frequency Counter
- Frequency Range from 0.2Hz to 10MHz
- Amplitude Range : from 0.5Vp-p to 5Vp-p
- Input Impedance: 10kΩ
- Power: AC 220V / 50Hz
- Product Net Weight : About 2.5kg
- Product Size: 320mm x 240mm x 100mm
Package included:
- 1 x Generator
- 1 x Q9 Clips Cable
- 1 x Power Cord
- 1 x Manual
