VAS 5054A ODIS Diagnostic Device Full Chip Version Bluetooth with Chip for OKI Supporting the Latest Version 7.2.1

VAS 5054A ODIS Diagnostic Device Full Chip Version Bluetooth with Chip for OKI Supporting the Latest Version 7.2.1

Introduction:
5054A is an universal diagnostic interface for V Group car and all OBD vehicle systems from other manufacturers.

5054A scanner which is with full chips equipped (For OKI, control module). It is top quality in the market with full functions.

6154 V1.6.6.0 Notice:
1: Firmware Version is 1.6.6.0; License to 2030-12-31(CANNOT UPDATE the Firmware and License to 1.8.4.0 or newer 6154 1.6.6 Please do not update, otherwise there will be a risk of locking the machine)
2: Please install Driver.

Features:
1. Free license until 2030 year, not like other sellers' provided license version only few months!
2. V6.2.0 Supports 5054A on win7, V7.2.1 supports 5054A on WIN10, V6.2.0 supports 6154A on WIN7 / WIN10, V7.2.1 supports 6154A on WIN10
3. 5054a (for OKI) via USB and Bluetooth connect. 6154 (for OKI) via USB and WIFI connect.
4. Multi-Languages: Dansk, Deutsch, English, Spanish, France, Croatian, Italiano, Portuguese, Hungarian, Netherlands, Poland, Slovenia, Finand, Swweden, Turkish, Russia, Greek, Korea, Romanian, Brazil, and Japanese
5. Works on Engineering V12.1.1
6. Support UDS Function
7. Car Maker: works for V Group car all 9 Brands from 1995 to 2020, Other seller's V5.1.3 can not work for SEAT!
8. Free Activation, Include Keygen in CD (03 folder), it is easy to activate hardware ID by keygen! (if do not know, just contact me)

What difference between 5054A and 6154:
1. Connection method:
6154A: connected via USB, WIFI
5054A: connected via USB, Bluetooth

2. Vehicle list:
6154 supports for cars from 2000 year to the newest & future car models;
5054A supports for cars from 1995 to 2019.

3. Software compatible:
PC V19: 6154 software CANNOT support it! 5054A can support PC V19
For OKI: Both 6154 and 5054a can work with newest SW V5.1.6 / V5.1.3 / V4.4.1 / V4.3.3 / 4.2.3 / 4.1.3 / 3.0.3.... !!!

4. PC OS compatible:
6154 can support win10 & win7 professional / ultimate
5054A only supportwin7 professional / ultimate, but support win7 & win10 if install v4.4.1

5. Remote programming (notice):
As for remote programming through PC software, you have to use 5054A. The 6154 cloned head only works with obdii diagnostics and online programming.

The Following Vehicle Bus Systems are Supported:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)

Specifications:
- The vehicle protocols are handled directly in the 5054A.
- This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the 5054A software is identified with the version installed on the application PC. The 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
- The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
- The diagnostic base system can access the 5054A via Bluetooth or USB.
- Access via Bluetooth: After a connection to the 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the 5054A.You need to specify this port when you install the diagnostic application.
- Access via USB: You can also connect the  5054A to the application PC by using the supplied USB cable. Windows detects the 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the 5054A is then complete and the device is ready for use by the diagnostic application.

Installation Tips:
1. Any problem during installation, please do not open dispute or leave a negative feedback, contact seller first, most problems are easy to solve. We can help you remote.
2. When finished install the 5.1.6 software, 5054A need to install patch, 6154 need to install drive. Otherwise you can not connect car.
3. Please don't install 2 software versions in the same computer. Files will conflict with each other. One computer can only install one software. If you want to reinstall another version in the same computer, you need to reset system or format C disc.
4. Antivirus software needs to be closed when installing driver otherwise some files might be deleted.
5. Please make sure the Voltage is up to 12V
6. Part 01-21 [all parts] altogether (not one by one) to the present folder.

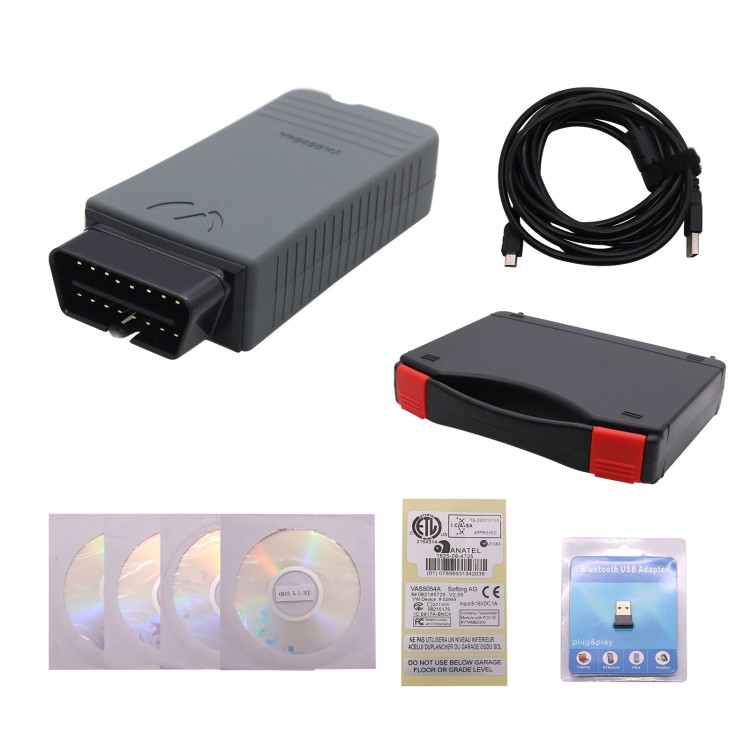

Packing List:
- 1 x 5054A Main unit
- 1 x USB Cable
- 1 x USB Bluetooth Adapter
- 1 x CD Software
- 1 x Plastic Box

Note:
- Our CD also comes with free software of version 6.2, if you want the 7.2.1 version, you need to register an account.
