VCO RF Transmitter Module MAX2605 Chip FM Transmitter Module Low Phase Noise

VCO RF Transmitter Module MAX2605 Chip FM Transmitter Module Low Phase Noise

Chip Description:

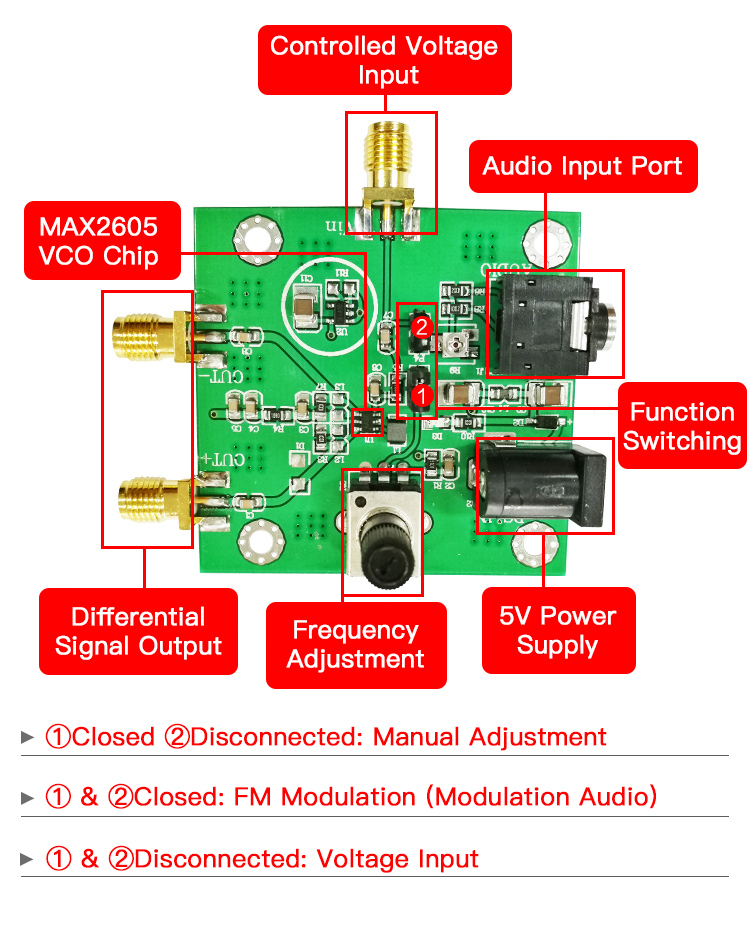

MAX2605 module, with P2 and P4 jumper caps plugged in, adjusts the carrier frequency with onboard slip. The carrier frequency can be adjusted from 44M to 54MHz. At the same time, the audio signal can be input from the audio input port or the Vin port, and the FM modulation output can be obtained from OUT+ and OUT-.

The MAX2605 is a compact, high-performance IF VCO designed for demanding portable wireless communication systems. It consists of a low-noise, low-power IC that runs in a tiny 6-pin SOT32 package.

The low noise VCO features on-chip varactor and feedback capacitors, requiring no external tuning components. It makes MAX2605 suitable for portable systems. Only  the oscillation frequency of an external inductor needs settings.

It provides an integrated differential output buffer for driving the mixer or divider. The buffer can provide up to -8dBm (differential) output with a simple power match. It also provides isolation from load impedance variations.

The chip is powered by +2.7V to +5.5V single power supply and provides low current consumption. The IF oscillator can cover frequency from 45MHz to 650MHz.

Chip Features:
- Powered by +2.7V to +5.5V single power supply
- Tiny SOT23-6 package
- On-chip temperature stability bias
- Low operating current
- Compact size
- Low phase noise
- Used in a wide frequency range
- Differential or single-ended output

Applications:
- Cellular and PCS cellphones
- 920MH-928MHz ISM band
- 2.4GHz ISM band
- Land mobile radio GPS receiver
- Universal IF oscillator

Specifications:
- Item Name: MAX2605 VCO FM Transmitter Module
- Size: 50 x 50mm

Package Included:
- 1 x VCO RF Transmitter Module

Note: Please contact us for PDF schematic diagram after purchasing. Thank you!
