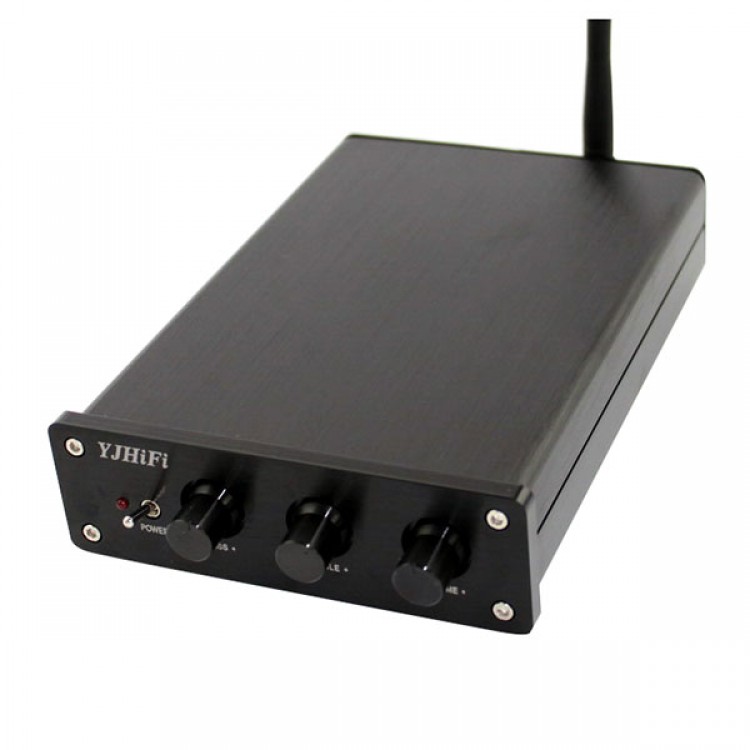

VJHiFi TPA3116 2.1+ CSR4.0 Bluetooth 4.0 Module Digital Amplifier Board with Case
Description:
- Adopting original TPA3116 and CSR4 .0 bluetooth module
- Coupling capacitor adopts German Simens 1UF
- Electrolytic capacitor signal main circuit USES Taiwan famous brand, nikon is special electrolytic capacitor is used in the main filter capacitor capacity of 3 1000 uf acoustics special capacitance 1000 uf / 50 v, continuous power to ensure a strong support
- Resistance to choose high precision SMD resistor, main circuit adopts precision 1% of five rings, metal film resistors, ensure the machine good signal-to-noise ratio
- PCB used 1.6 mm thick double-sided board, 2.0 oz copper thick, tin the whole process, to ensure that the size of the current good performance by the first-class quality of PCB
- The fully enclosed dust-proof potentiometer, performance is more stable, more durable than ordinary potentiometer
- Brand new bluetooth version 4.0
- External bluetooth antenna: 10M receiving range
- No power supply
Specifications:
- Working method: D-Class
- Static current: 50mA
- working efficiency: 90%
- Rated output power: 2*50W+100W
- Frequency: 20Hz to 20KHz
- Working voltage: DC18V to DC24V
- Max current: 3A
Package list:
- 1 x YJHiFi TPA3116 2.1 Completed 50W+50W+100W Class D Amplifier Board with Case
