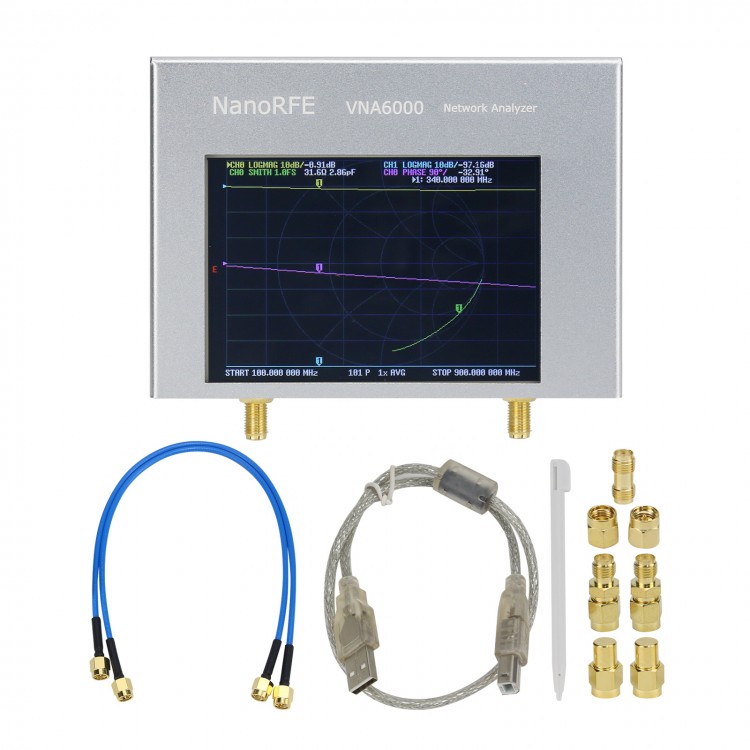

VNA6000-B Two Port 6GHz Portable High Performance Vector Network Analyzer with 110dB Dynamic Range

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,435.47
  • Price in reward points: 14355 Reward Points: 144
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,406.76 $1,378.05 $1,334.99 $1,277.57 Contact US
Quantity:

VNA6000-B Two Port 6GHz Portable High Performance Vector Network Analyzer with 110dB Dynamic Range

Description:

- VNA6000 (formerly NanoVNA V3) is a series of two port 6GHz vector network analyzers developed for NanoRFE/for HCXQS offering performance comparable to higher end professional instruments in a small and portable form factor.
- Existing portable VNAs weigh >2.5kg (heavier than a laptop; see table below). VNA6000 is the first VNA to reach professional level performance while weighing as much as a cell phone (300g), and is ideal for engineers on the go or working from home. VNA6000 can be used to characterize antennas, filters, duplexers, amplifiers, and more.
- The improved measurement repeatability and low trace noise of the VNA6000 enables remote workers to complete most lab tasks without the logistics trouble of renting or sharing equipment, minimizing lost productivity.

Features:
- 50kHz - 6GHz frequency range
- Low drift: built-in temperature compensation minimizes drift
- High linearity
- Improved measurement repeatability: < 0.1dB typ
- High dynamic range: 110dB at 5.8GHz (VNA6000-B)
- Adjustable IFBW:
  Enables optimal tradeoff between measurement speed and noise
  Can measure narrowband devices
- Can be connected to a PC (NanoVNA-QT software):
  S parameters export
  Custom calibration methods
  Advanced continuous data acquisition
  Supports for Windows (7+), for Linux and for MacOS
- Lightweight and easy to carry: lower weight (300g) compared to other portable VNAs of similar performance (> 2.5kg)
- TDR with millimeter level resolution
- 4 inch touchscreen
- API allows integration with custom automated test setups

Package Included:
- 1 x Host

Documentation:
- VNA6000 home page: https://nanorfe.com/vna6000.html
- User manual: https://nanorfe.com/downloads/vna6000_manual.pdf
- Datasheet: https://nanorfe.com/downloads/vna6000_specifications.pdf

Software:
- VNA-QT software download: https://nanorfe.com/nanovna-v2-software.html
- Firmware releases: https://nanorfe.com/vna6000.html#firmware
