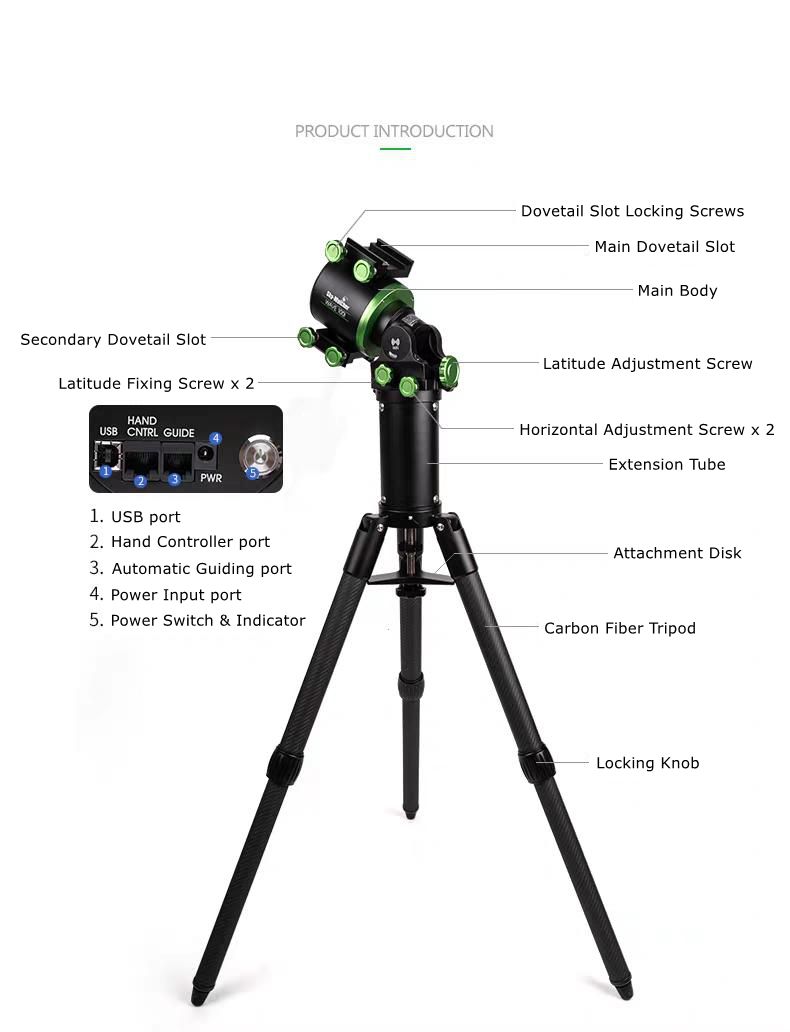

W100i Professional Harmonic Equatorial Mount (Set) 10KG Load Capacity GoTo Strain Wave Mount with Dual Dovetail Slots
Description:
- The deceleration core of W100i is harmonic deceleration. The powerful internal motor and flexible wheel provide very high torque and zero backlash. Thanks to the high-precision transmission system, precise GOTO rotation can be achieved to shoot high-quality images.
- Multiple control modes: supports wireless control via WiFi and Bluetooth, direct control through a handheld controller (optional), or can be connected to a computer via the standard USB cable for control.
- Theodolite/equatorial mount dual modes operation, suitable for different usage scenarios.
- Double dovetail groove linkage: a second dovetail groove can be installed and linked with the main dovetail groove.
- High load capacity: the powerful internal motor and harmonic reduction wheel have abnormally high torque and zero backlash, creating a strong load-bearing capacity for the harmonic equatorial instrument. The maximum load without a counterweight is 10kg, and the maximum load with a counterweight is 15kg.
- The W100i has strong travel portability, weighing 4.2kg, making it easy to pack and carry.
- Power off brake: when power input is lost, the brake automatically starts to prevent the equipment from falling.
- Height increasing section (optional): reduce the probability of collision between observation equipment and tripod.
- Carbon fiber tripod (optional): a carbon fiber tripod with a load of 40kg, providing you with a stable observation platform.
- Counterweight (optional): counterweight, counterweight rod, and extension rod. When equipped with a counterweight, the maximum load capacity of the equatorial mount can be raised to 15kg.
Specification:
- Mount type: equatorial mount/theodolite dual modes
- Maximum balancing load capacity: 15kg at 0.2m arm of force
- Maximum unbalancing load capacity: 10kg at 0.2m arm of force
- Maximum unbalancing torque: 0.45KN·m
- Polar axis adjustment range: 90° for latitude; 20° for horizontal
- Self weight: 4.2kg
- Motor drive: 1.8 degree step motor, 256 sub-vision
- Reduction ratio: 324:1 for right ascension; 324:1 for declination
- GOTO control: for Synscan pro APP or Synscan handheld controller (optional)
- Counterweight: 5kg (optional)
- Counterweight rod: 0.7+0.4kg (optional)
- Extension tube: 1kg (optional)
- Power requirement: 12 - 15V, >35W
- Maximum rotational speed: 7.5°/s
- Automatic guiding speed rate: 0.125X, 0.25X, 0.5X, 0.75X, 1X
- Working temperature: -10℃ to 50℃
- Dovetail slot: compatible with V-type and D-type

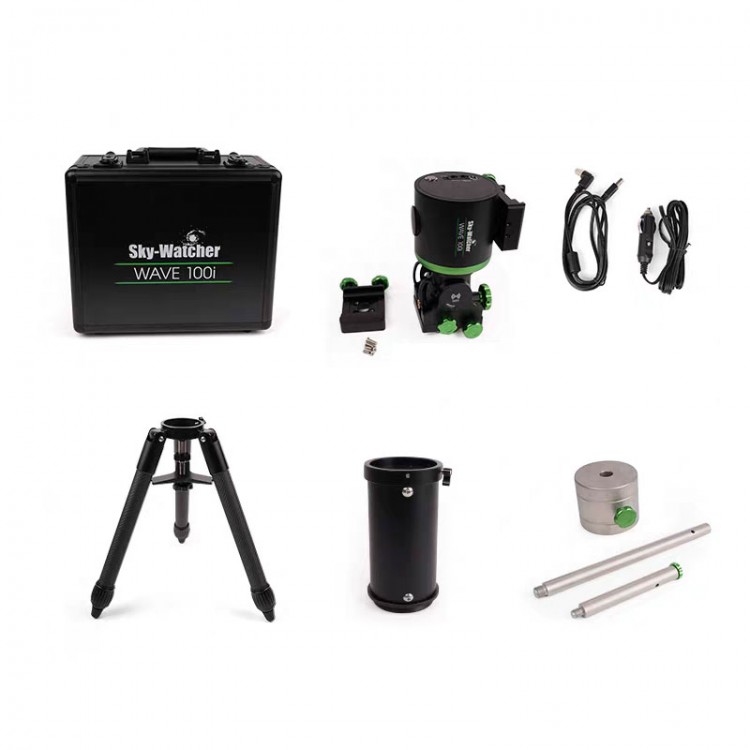

Package Included:
- 1 x Equatorial Mount
- 1 x Tripod
- 1 x Height Increasing Section
- 1 x Counterweight
- 1 x Counterweight Rod
- 1 x Extension Rod
- 2 x Connection Cables
- 1 x Storage Box
