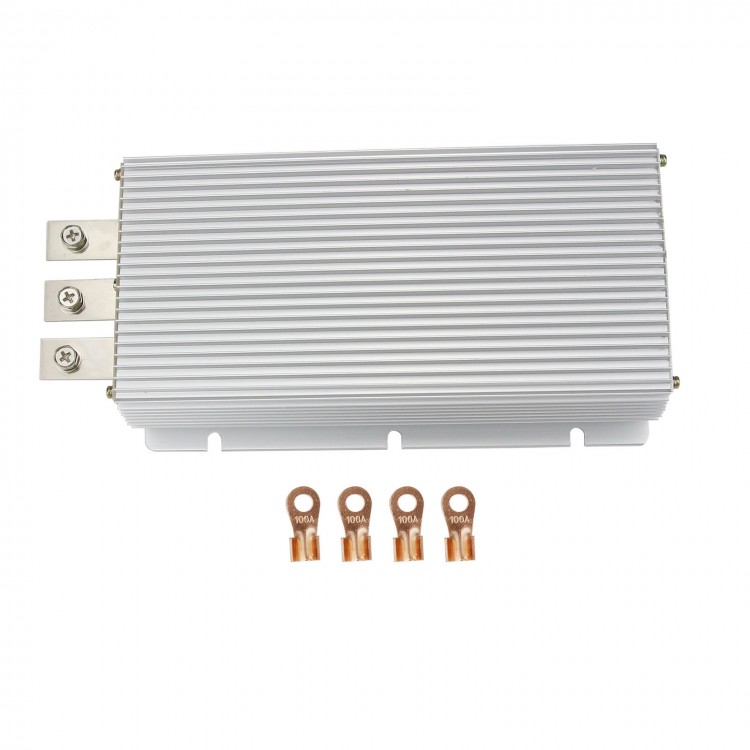

Waterproof Car Voltage Stabilizer DC-DC Voltage Converter Buck Converter Module 24V to 12V 100A 1200W

Waterproof Car Voltage Stabilizer DC-DC Voltage Converter Buck Converter Module 24V to 12V 100A 1200W

Features:
- Non-Isolated DC to DC voltage stabilizer module
- 100% full stable output current
- 100% Imported electronic parts for high conversion efficiency up to 95%@24V input
- Organic silica gel potting for IP68 protection grade, making it waterproof, dustproof and shockproof
- Die-cast aluminum housing for greater heat dissipation performance; Its compact size for easy installation
- Terminals for wiring is nickel-plated to prevent rusting of terminals and screws
- Multiple Protections: Short-Circuit protection, over-voltage, over-temperature, and short-circuit protections
- Durable: In light of CE, RoHS standards, it is designed for up to 100, 000 hours of life span

Note: Reverse connection is forbidden or the module will be damaged.

Parameters:
- Model Number: RC2412100
- Input Voltage: DC 24V (18-36V)
- Output Voltage: DC 12V±1%
- Output Current: 100A
- Output Power: 1200W
- No-Load Current: ≤70mA
- Ripple: ＜230mV
- Conversion Efficiency: 95%@24V input
- Module Type: DC-DC Non-Isolated Power Module
- Protective Level: IP68
- Operating Temperature: -35℃ to 80℃
- Size: 220 x 127 x 63mm (L*W*H)
- N.W.: 2.1kg

Wiring:
Input Terminals:
- Red for Power Supply +
- Black for Power Supply –

Output Terminals:
- Yellow for +
- Black for -

Package Included:
- 1 x DC-DC Voltage Converter Module
