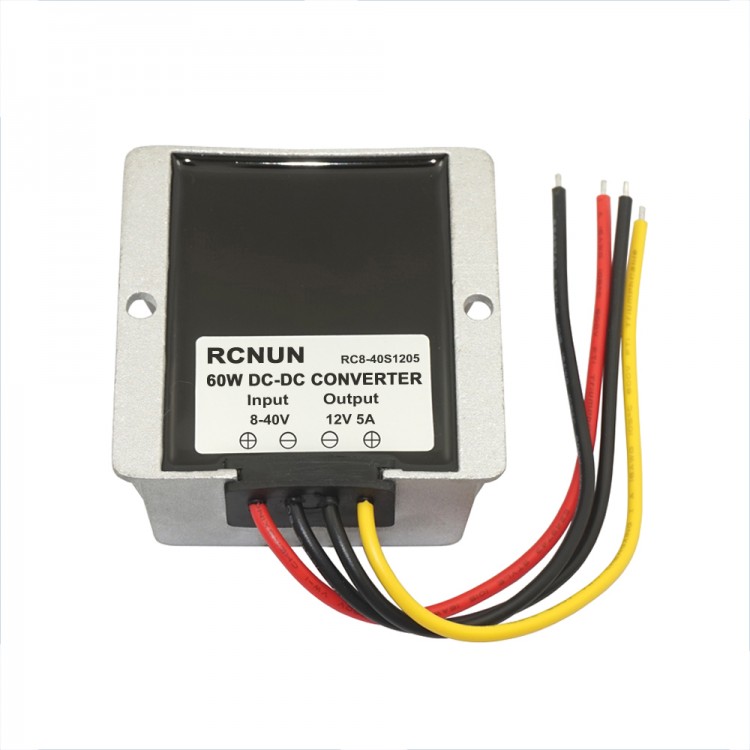

Waterproof Car Voltage Stabilizer DC-DC Voltage Converter Buck Boost Converter Module 8-40V to 12V 5A 60W

Waterproof Car Voltage Stabilizer DC-DC Voltage Converter Buck Boost Converter Module 8-40V to 12V 5A 60W

Features:
- Non-Isolated DC to DC voltage stabilizer module
- 100% full stable output current
- 100% Imported electronic parts for high conversion efficiency up to 90%
- Organic silica gel potting for IP68 protection grade, making it waterproof, dustproof and shockproof
- Die-cast aluminum housing for greater heat dissipation performance; Its compact size for easy installation
- Multiple Protections: Short-Circuit protection, over-voltage, over-temperature, and short-circuit protections
- Durable: In light of CE, RoHS standards, it is designed for up to 100, 000 hours of life span

Note: Reverse connection is forbidden or the module will be damaged.

Parameters:
- Model Number: RC8-40S1205
- Input Voltage: DC 12V/24V (8-40V)
- Output Voltage: DC 12V±1%
- Output Current: 5A
- Output Power: 60W
- No-Load Current: ≤25mA
- Ripple: ＜150mV
- Conversion Efficiency: 90%
- Module Type: DC-DC Non-Isolated Power Module
- Protective Level: IP68
- Operating Temperature: -35℃ to 80℃
- Size: 74 x 74 x 32mm (L*W*H)
- Installation Wire: 16.5 cm (Length)
- Installation Hole: 5.3mm (Diameter)
- Hole Spacing: 65mm
- N.W.: 300g

Wiring:
Input Terminals:
- Red for Power Supply +
- Black for Power Supply –

Output Terminals:
- Yellow for +
- Black for -

Package Included:
- 1 x DC-DC Voltage Converter Module
