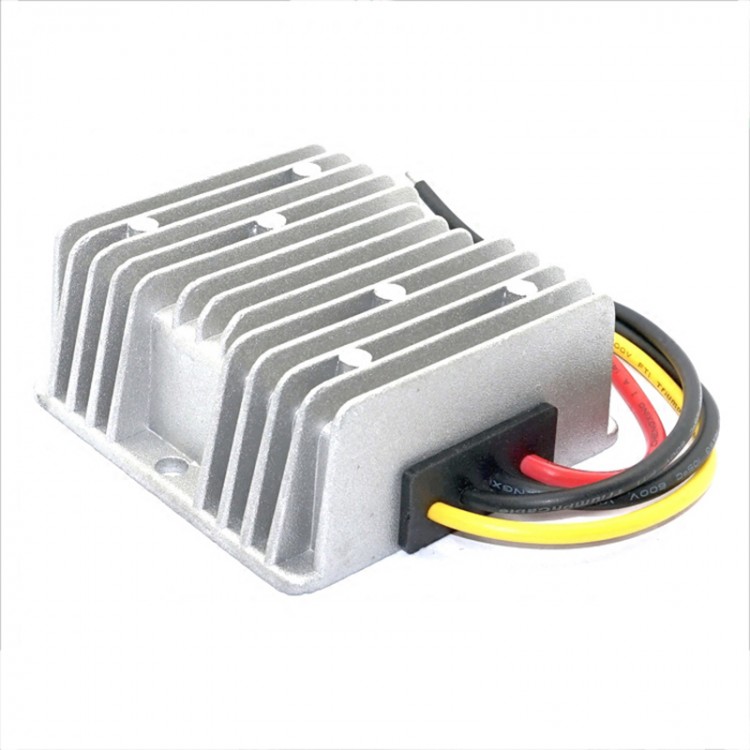

Waterproof Car Voltage Stabilizer DC-DC Voltage Converter DC-DC Boost Module 12V to 24V 12A 288W

Waterproof Car Voltage Stabilizer DC-DC Voltage Converter DC-DC Boost Module 12V to 24V 12A 288W

Features:
- Non-Isolated DC to DC voltage stabilizer module
- 100% full stable output current
- 100% Imported electronic parts for high conversion efficiency up to 94 to 96%
- Organic silica gel potting for IP68 protection grade, making it waterproof, dustproof and shockproof
- Die-cast aluminum housing for greater heat dissipation performance; Its compact size for easy installation
- Terminals for wiring is nickel-plated to prevent rusting of terminals and screws
- Multiple Protections: Short-Circuit protection, over-voltage, over-temperature, and short-circuit protections
- Durable: In light of CE, RoHS standards, it is designed for up to 100, 000 hours of life span

Note: Reverse connection is forbidden or the module will be damaged.

Parameters:
- Input Voltage: DC 12V (9-23V)
- Output Voltage: DC 24V±1%
- Output Current: 12A
- Output Power: 288W
- No-Load Current: ≤60mA
- Ripple: ＜150mV
- Efficiency: 94 to 96%
- Module Type: DC-DC Non-Isolated Power Module
- Protective Level: IP68
- Operating Temperature: -35℃ to 80℃
- Installation Wire: 16.5 cm (L)
- Size: 74 x 74 x 32mm (L*W*H)
- N.W.: 300g

Package Included:
- 1 x DC-DC Voltage Converter Module
