Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $19.44 | $19.05 | $18.45 | $17.66 | Contact US |
Waveshare PoE HAT (E) Expansion Board 3B+/4B Power over Ethernet Mini Expansion Board Module
Description:

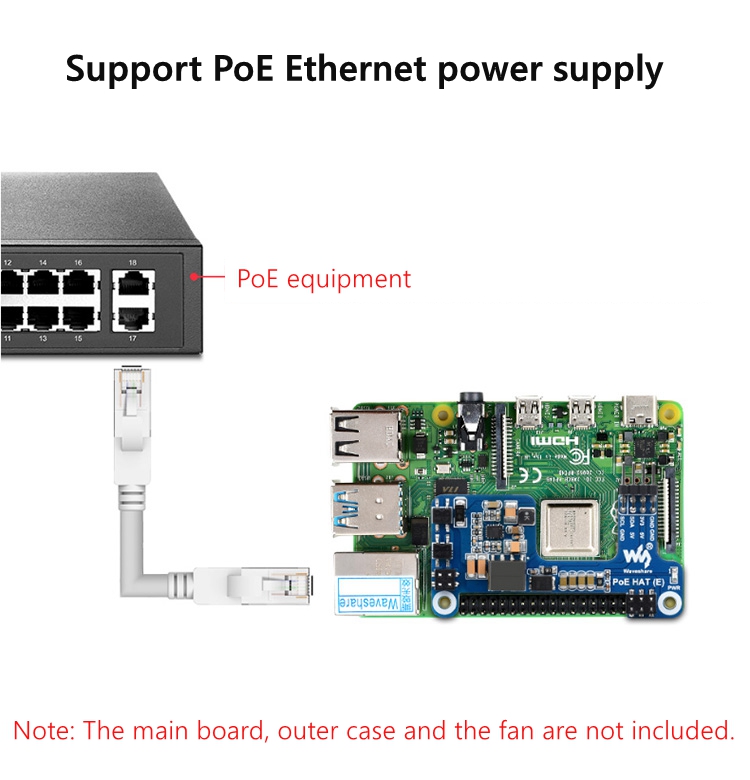

- This is a mini PoE HAT for Raspberry Pi 3B+/4B with IEEE 802.3af network standard support. If you already have an IEEE 802.3af-compliant PoE router or switch, with this HAT, you can provide both network connection and power supply for your Raspberry Pi in one cable.
Features:

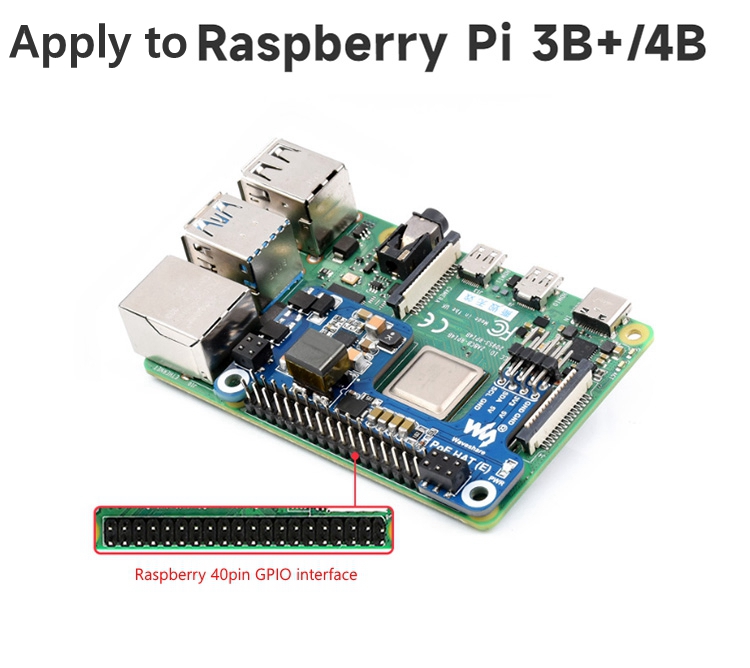

- Suitable for the Raspberry Pi 3B+/4B, it can be used with the official Raspberry Pi case without taking up more space.
- PoE (power over Ethernet) capability, IEEE 802.3af-compliant.

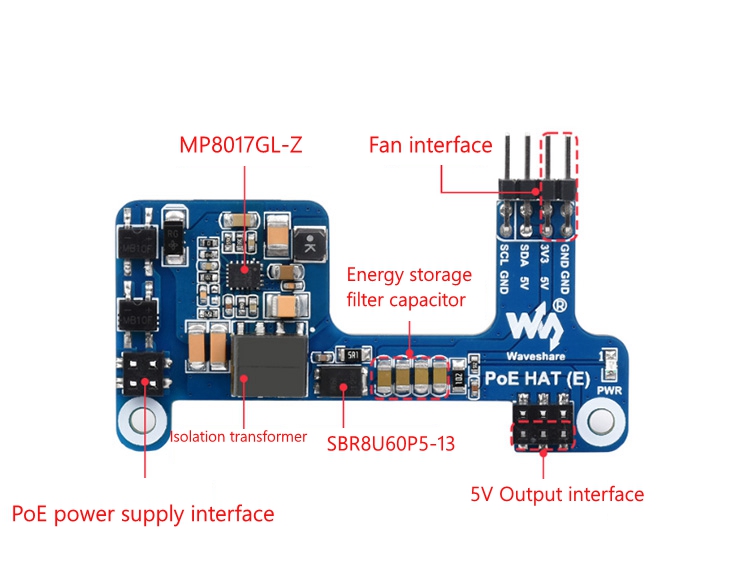

- Fully isolated switched-mode power supply (SMPS).
- With more compact component layout scheme, it is mini and more flexible to be used.
Parameter:
- POE Power Input: 37V~57V DC
- POE Power Output: 5V/2.5A DC
- Network Standard: 802.3af PoE-compliant

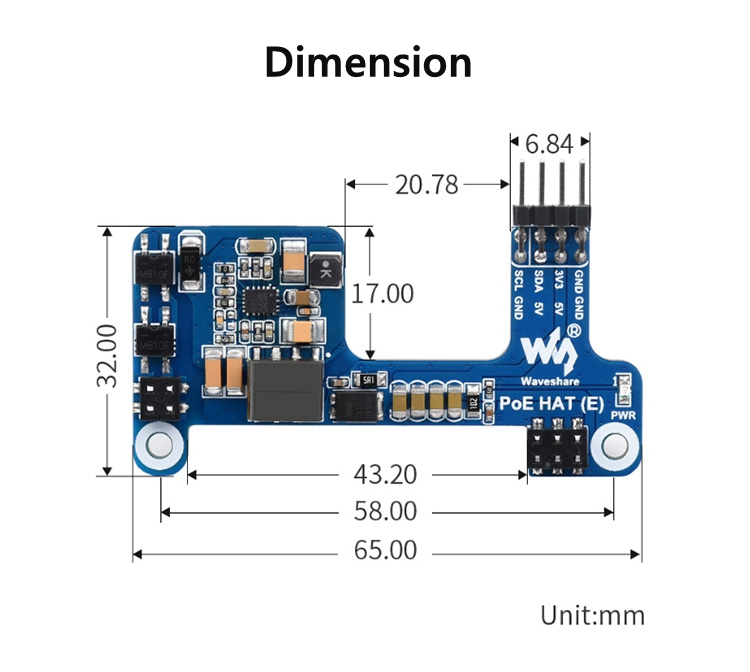

- Dimension: 65 x 32mm
Package Included:

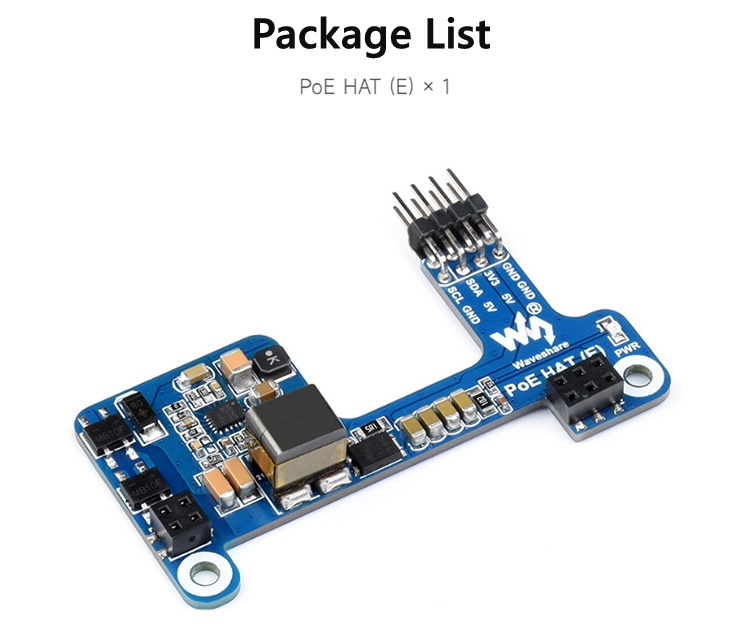

- 1 x PoE HAT (E) Expansion Board
